ThermaWall 2600
Verified by manufacturer 1 day ago

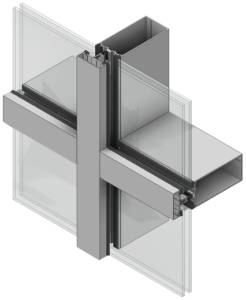

Thermally broken, field-glazed, shear block curtainwall.
Application
Low to mid rise commercial buildings requiring high performance including retail, education, health care, office.
Description
- 2 1/2-inch (63.5 mm) Sight Line
- Mullion depths from 2 7/8 inches (73 mm) to 10 inches (254 mm)
- Conventional captured and structural silicone glazed (SSG) options
- Dual and Triple glazed options
- Combination splice and “T” anchor available
- Polyamide thermal break provides improved U-factor and resistance to condensation
- Compatible with Alumicor operable windows, doors, etc.
- A variety of pressure caps are available
- Alumicor glass support eliminates concerns of dead loads imposed upon thermal breaks
- Proprietary gasket provides improved thermal performance
- Drop-in horizontal available
- ThermaWall 2600 system veneer option
Find more information on our website [here].
General information
NMS | 08 44 13 Glazed Aluminum Curtain Walls Primary |
NMS | 08 44 13 Murs-rideaux vitrés à ossature d'aluminium Primary |
CMS |
Specification data - Glazed Aluminum Curtain Walls
Literature
ThermaWall 2600 Spec Brochure
