SPUN COPPER DECK DRAIN
Verified by manufacturer 11 months ago
Certificate of Approval cdfa
Certificate type
SPUN COPPER DECK DRAIN
Application
Deck Drain
Description
Menzies Spun Copper Deck Insert Drain. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
- For use over heated and non-heated areas.
- Includes heavy-duty flush mount strainer/membrane clamping ring.
- Flush spun copper deck drain for pedestrian traffic areas.
- Standard 4″ (102mm) flange.
- Available in 2″ (51mm) & 3″ (76mm) insert, 2″ & 3″ DWV, and 2″ & 3″ no hub.
- NOTE: Drain should be used only in a visible maintenance area in conjunction with auxiliary overflow drains.
- 2″ (300-3220 AND 300-3222) listed to meet Canadian and U.S. standards by QAI, meet CSA B79 and ASME A112.6.4.
- Also available in TPO Direct Weld™ and PVC.
- Longer pipes available.
- 10-Year Warranty
General information
Color | Copper |
Finish | Copper |
Material | Copper |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS | 22 14 26 Facility Storm Drains Primary |
Specification data - Facility Storm Drains
Sustainability data
Material | Copper |
Product certifications
Certificate of Approval cdfa
CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.
Literature
Literature type
MATERIALS SAFETY DATA SHEET CU/AL
PRODUCT SPECIFICATIONS - SPUN COPPER DECK DRAIN

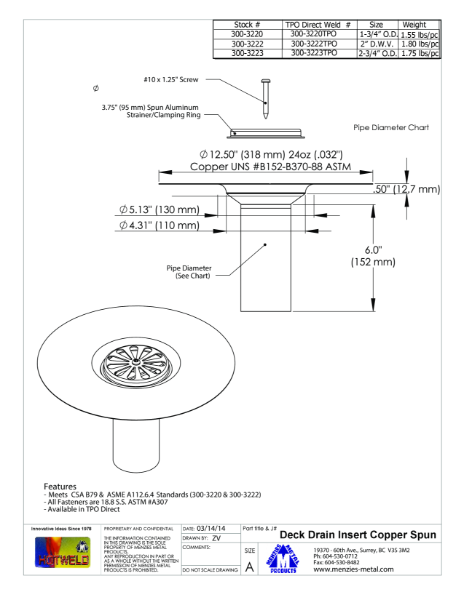

TECHNICAL DRAWING - SPUN COPPER DECK DRAIN
