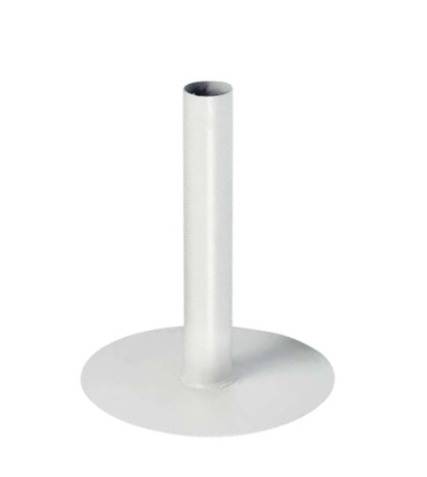

PLUMBING STACK ALUMINUM FLAT WELDED - TPO
Verified by manufacturer 19 days ago
Certificate of Approval cdfa
Certificate type
Menzies Aluminum Plumbing Stack Flat Welded with TPO Direct Weld™ for flat roof application. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
Application
Plumbing Stack for TPO
Description
- TPO coated.
- Heavy aluminum extruded tube, welded to a round flange with pre-drilled holes for easy fastening.
- Available all pitches by special order.
- Available in sizes 1 1/4″ (32mm), 1 1/2″ (38mm), 2″ (51mm), 3″ (76mm), 4″ (102mm), 5″ (127mm) Note: 5″ is special order.
- Custom lengths and diameters available by special order.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.

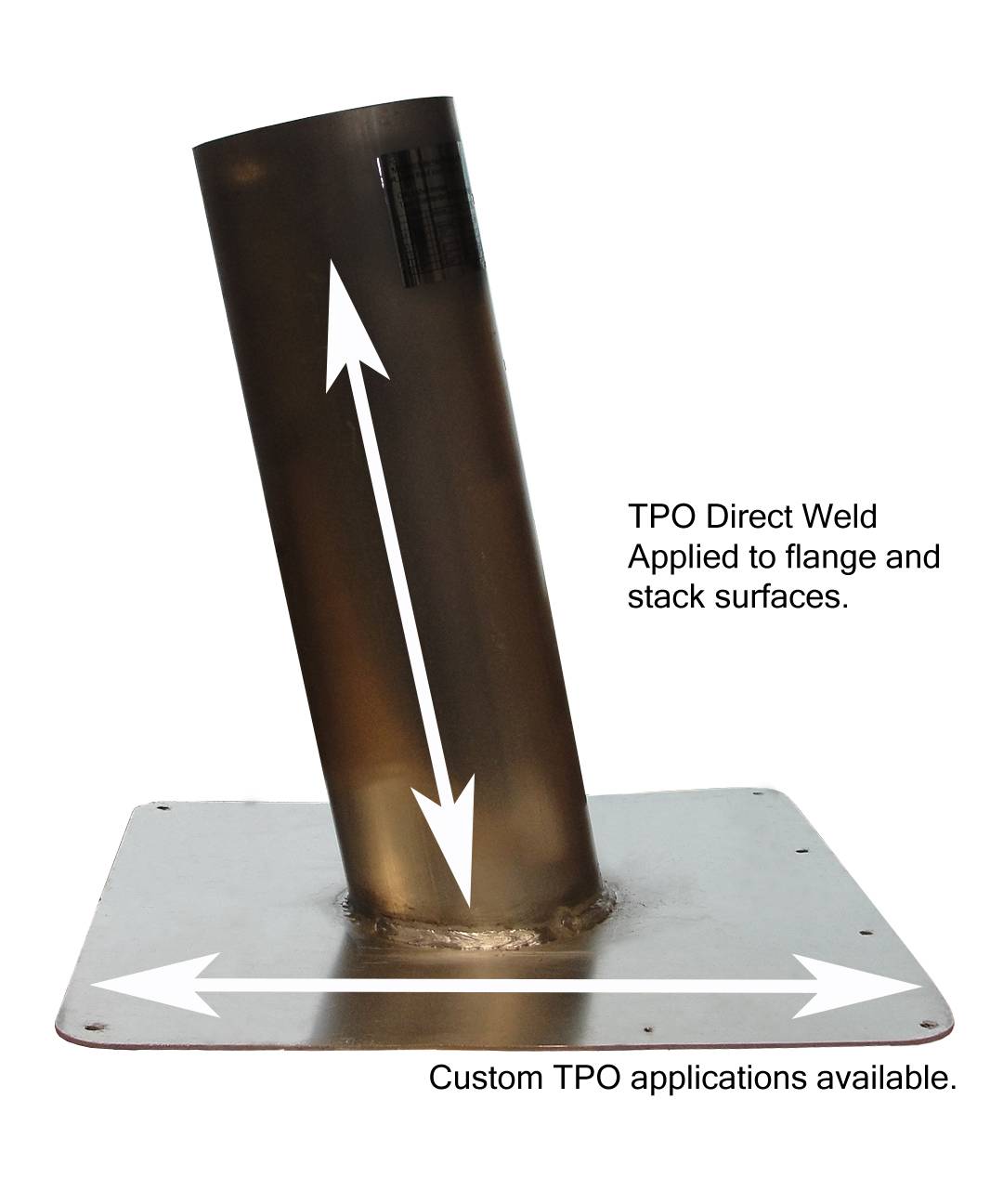

- Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
- 10-Year Warranty
General information
Material | Thermoplastic polyolefin (TPO) |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS | 22 00 00 Plumbing Primary |
Sustainability data
Material | Thermoplastic polyolefin (TPO) |
Product certifications
Certificate of Approval cdfa
CSA B272 PREFABRICATED SELF-SEALING ROOF VENT FLASHING / IAPMO PS 64 ROOF PIPE FLASHING
Literature
Literature type
MATERIALS SAFETY DATA SHEET CU/AL
INSTALLATION INSTRUCTIONS - PIPE FLASHING TPO

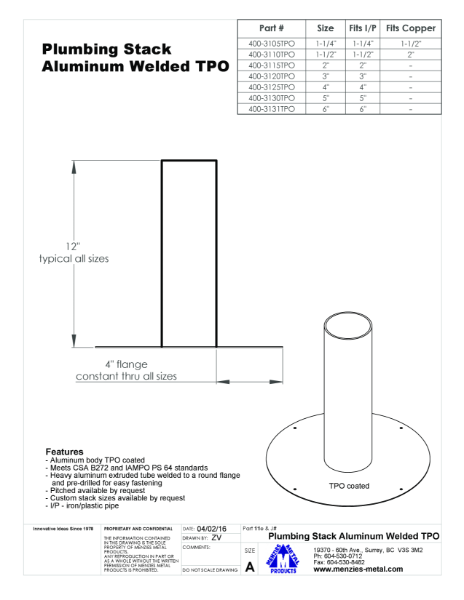

TECHNICAL DRAWING - PLUMBING STACK TPO
