COMMERCIAL UNDERSIZE ALUMINUM DRAIN - TPO
Verified by manufacturer 11 months ago
Menzies Commercial Undersize Aluminum Drain - TPO features a TPO Direct Weld coating and a smaller diameter pipe to be used as an insert drain in re-roof applications.
Application
Thermoplastic polyolefin (TPO) Insert Drain for Re-roof Application
Description
- Smaller diameter pipe for use as an insert drain in re-roof application.
- Available in insert sizes 2″ (1 5/8″ OD); 51mm (41.3mm OD), 3″ (2 5/8″ OD); 76mm (66.7mm OD) and 4″ (3 5/8″ OD); 102mm (92.1mm OD).
- No bowl.
- Cast aluminum strainer.
- Not compatible with Blue Drain Seal™.
- Specifically made to order, no returns.
- Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
- Longer pipes available.
- 10-Year Warranty
`
General information
Color | White |
Material | Thermoplastic polyolefin (TPO) |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
CMS | 22 14 26.13 Roof Drains Primary |
Sustainability data
Material | Thermoplastic polyolefin (TPO) |
Literature
Literature type
MATERIALS SAFETY DATA SHEET CU/AL
TECHNICAL DRAWING - COMMERCIAL UNDERSIZE ALUMINUM DRAIN - TPO

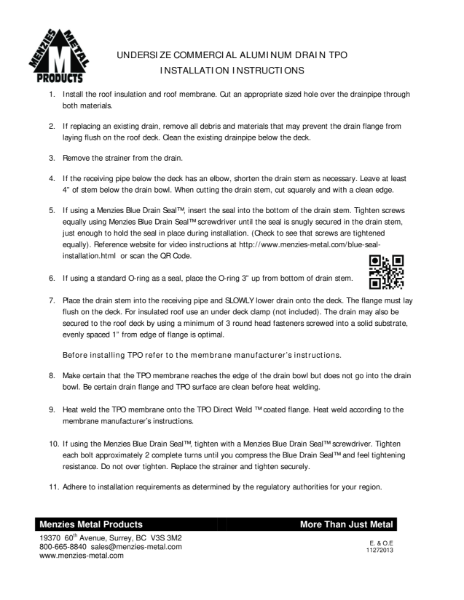

INSTALLATION INSTRUCTIONS - COMMERCIAL UNDERSIZE ALUMINUM DRAIN - TPO
