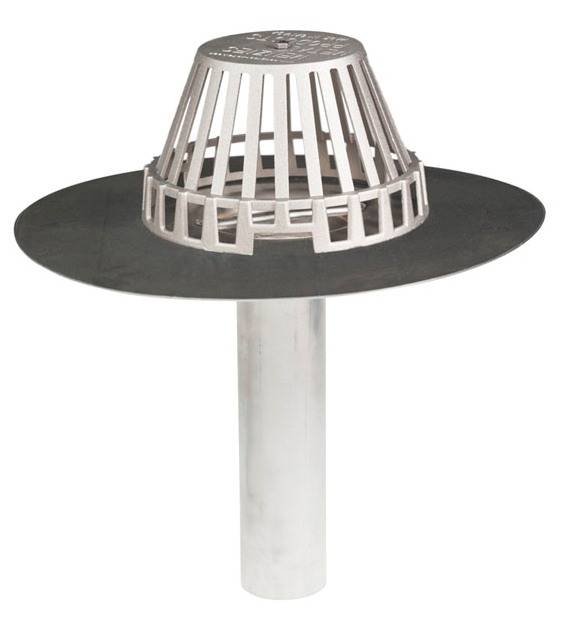

SPUN ALUMINUM VALUE DRAIN
Verified by manufacturer 1 month ago
Certificate of Approval
Certificate type
Menzies Spun Aluminum Value Drain. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
Application
Roof Drain
Description
- Die-cast aluminum strainer.
- Stocked in insert sizes 2″ (51mm), 3″ (76mm)and 4″ (102mm).
- 5″ (127mm) and 6″ (152mm) available on request.
- For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
- 3″, 4″, 5″ and 6″ drains are compatible with Blue Drain Seal.
- Custom sizes and pipe lengths available by request.
- Stainless steel fastener.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B79 and ASME A112.6.4.
- Also available in TPO Direct Weld™.
- Longer pipes available.
- 10-Year Warranty
General information
Material | Aluminium |
Shape | Circle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Material | Aluminium |
CMS | 22 14 26.13 Roof Drains Primary |
Sustainability data
Material | Aluminium |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 3Ds Max | - | 1 |
 DWG | - | 1 |
 SketchUp | - | 1 |
 OBJ | - | 1 |
Third party certifications
Certificate of Approval
CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.
Literature
MATERIALS SAFETY DATA SHEET CU/AL
TECHNICAL DRAWING - SPUN ALUMINUM VALUE DRAIN
PRODUCT SPECIFICATION - SPUN ALUMINUM VALUE DRAIN
