SPUN ALUMINUM VALUE DRAIN - TPO
Verified by manufacturer 1 month ago
Certificate of Approval
Certificate type

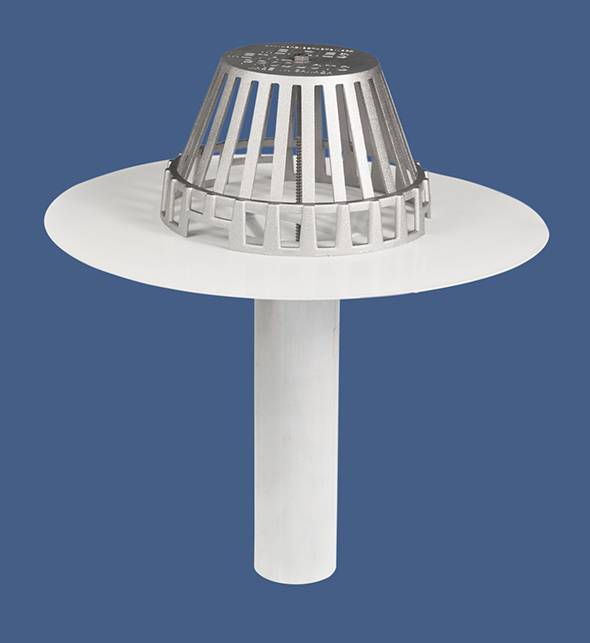

Menzies Spun Aluminum Value Drain with TPO Direct Weld™. Manufactured by Menzies Metal Products (www.menzies-metal.com, 1-800-665-8840).
Application
Roof Drain with Thermoplastic Polyolefin (TPO)
Description
- Die-cast aluminum strainer.
- Stocked in insert sizes 2″ (51mm), 3″ (76mm), 4″ (102mm).
- 5″ (127mm) and 6″ (152mm) available on request.
- For complete seal assurance this product works best when used with Menzies Blue Drain Seal.
- 3″, 4″, 5″ and 6″ drains are compatible with Blue Drain Seal™.
- Custom sizes and pipe lengths available by request.
- Stainless steel fastener.
- Listed to meet Canadian and U.S. standards by QAI. Meets CSA B272 and IAPMO PS 64.
- Menzies TPO Direct Weld™ for fast installation on TPO Roofing Systems.
- Longer pipes available.
- 10-Year Warranty
General information
Color | White |
Material | Thermoplastic polyolefin (TPO) |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Material | Thermoplastic polyolefin (TPO) |
CMS | 22 14 26.13 Roof Drains Primary |
Sustainability data
Material | Thermoplastic polyolefin (TPO) |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
 3Ds Max | - | 1 |
 DWG | - | 1 |
 SketchUp | - | 1 |
 OBJ | - | 1 |
Third party certifications
Certificate of Approval
CSA B79 COMMERCIAL AND RESIDENTIAL DRAINS AND CLEANOUTS / ASME A112.6.3 FLOOR AND TRENCH DRAINS / ASME A112.6.4 ROOF, DECK AND BALCONY DRAINS.
Literature
MATERIALS SAFETY DATA SHEET CU/AL
TECHNICAL DRAWING - SPUN ALUMINUM VALUE DRAIN - TPO
INSTALLATION INSTRUCTIONS - SPUN ALUMINUM VALUE DRAIN - TPO
