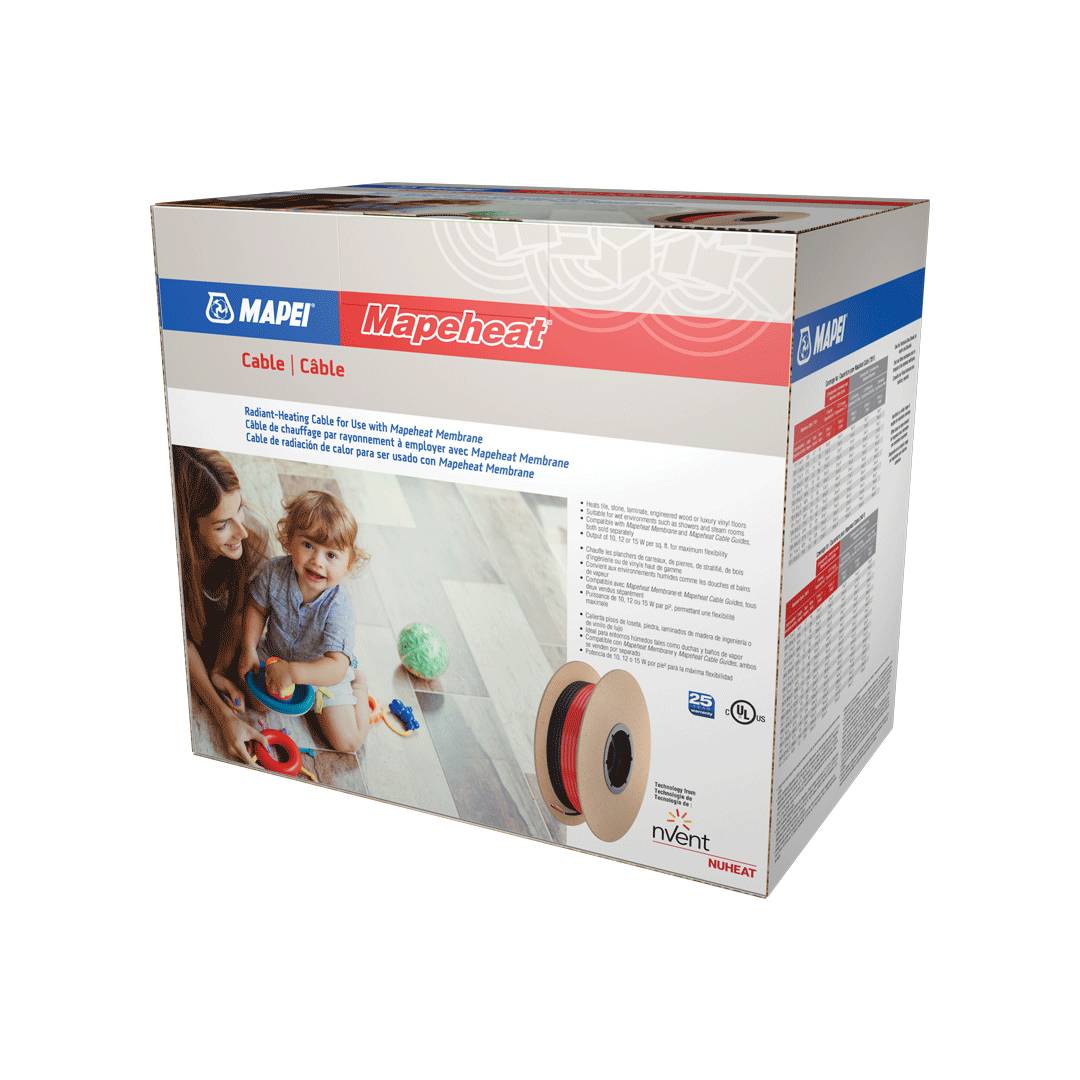

Mapeheat Cable - Uncoupling Heat Membrane
Verified by manufacturer 10 months ago
Radiant-Heating Cable for Use with Mapeheat Membrane
Application
▪ Any interior, residential area
▪ Approved for use with the following finished flooring: Ceramic tile, porcelain tile, granite, marble, natural stone, laminate/engineered wood floors, luxury vinyl tile (LVT) and luxury vinyl plank (LVP)
Description
Mapeheat Cable is a free-form, twisted-pair, floor-heating cable for use in any residential interior room where the comfort of radiant floor heating is desired. The cable can be spaced on site to provide 10, 12 or 15 W per sq. ft. based on the desired wattage output requirements of the installation. Mapeheat Cable is available in 33 lengths to accommodate areas as small as 6 sq. ft. (0.56 m ) and up to 293 sq. ft. (27.2 m ).
▪ “-W” wet rating per Table 1 of C22.2 No. 130-16 and CEC section 62-104
▪ Mapeheat Cable is compliant with the following standards: UL 1673 (USA), CAN/CSA-C22.2 No. 130-03
(Canada) and ANSI/IEEE 515.1-2005.
General information
Specification data - Tiling

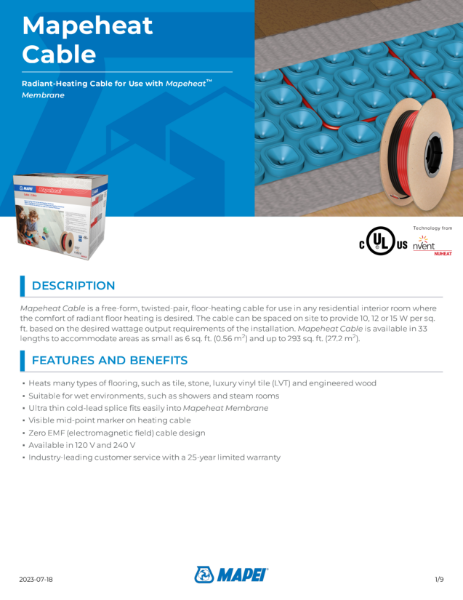

Literature
Tile & Stone Installation Systems
Mapeheat Floor-Heating Systems
Mapeheat Cable
Case studies
Lofts du Village Mapeheat Installation – Chelsea, QC, Canada
