HYDRO BAN® - Waterproofing/crack isolation membrane
Verified by manufacturer 3 months ago
GreenGuard Gold
Certificate type
ASTM
Certificate type
Load bearing waterproofing/crack isolation membrane for tile and stone installation. Exceeds ANSI A118.10 and A118.12; IAPMO approved
Application
- Allow for flood testing in 2 hours at 70°F (21°C) or higher (Refer to cautions section for more information on curing)
- Does not require the use of fabric (For gaps 1/8" (3 mm) or less see DS 663.5 for complete instructions)
- Thin; only 0.020–0.030" (0.5–0.8 mm) thick when cured
- Bonds directly to metal
- PVC and ABS plumbing fixtures only
- Anti-fracture protection of up to 1/8" (3 mm) over shrinkage and other non-structural cracks
- “Extra Heavy Service” rating per TCNA performance levels (RE: ASTM C627 Robinson Floor Test)
- Changes in color from a light sage to an olive green when cured
- Equipped with Microban® antimicrobial product protection to fight the growth of stain-causing mold and mildew on the waterproofing membrane
- Rapid drying for a faster time to tile
- Install tile. brick and stone directly onto membrane
- Exceeds ANSI A118.10 and A118.12
- IAPMO approved
- Lighter color for ease of inspection
- Non-flammable
Description

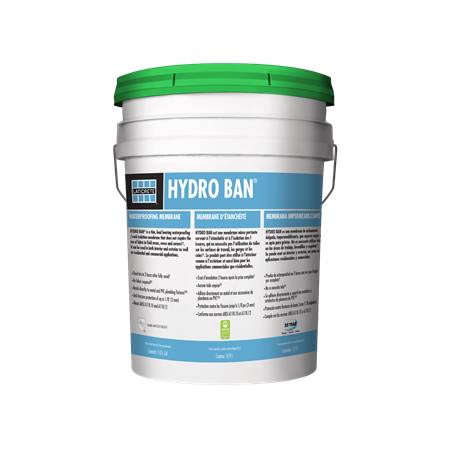

HYDRO BAN is a thin, load bearing waterproofing/crack isolation membrane that does not require the use of fabric in the field, coves or corners. HYDRO BAN is a single component self-curing liquid rubber polymer that forms a flexible, seamless waterproofing membrane. It bonds directly to a wide variety of substrates.
Equipped with Microban antimicrobial product protection to fight the growth of stain-causing mold and mildew on the waterproofing membrane.
General information
Color | Green |
Material | Latex |
Warranty description | Lifetime |
Specification data - Sheet Waterproofing
Sustainability data
Contains Red List materials | No |
Country of material origin | United States |
Country of product manufacture | United States |
Third party certifications
GreenGuard Gold
Green Guard Gold Certification HYDRO BAN
ASTM
ASTM E96
Case studies
Project Reference Database
