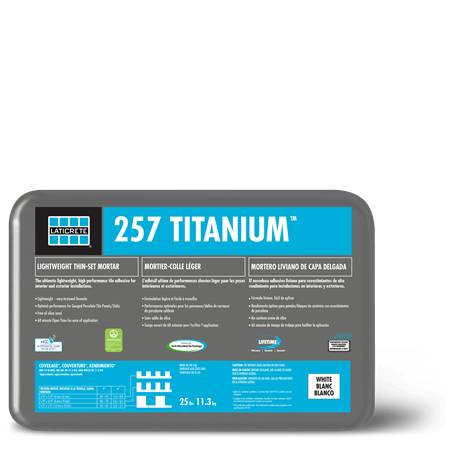

257 TITANIUM™ - Lightweight, modified, thin-set mortar

Verified by manufacturer 26 days ago

LATICRETE International, Inc. Third party certifications:
  • EPD

    EPD

    Certificate type

  • HPDC Certification

    HPDC Certification

    Certificate type

  • GreenGuard Gold

    GreenGuard Gold

    Certificate type

Interior, exterior, lightweight, high-performing cement based modified stone and tile adhesive. Exceeds ANSI A118.4, A118.11 and ANSI A118.15. ISO 13007-1 C2ES1P1

Jump to:
8002434788 Website

Application

  • Optimal performance for Gauged Porcelain Panels/Slabs.
  • Equipped with Microban® antimicrobial technology to fight the growth of stain-causing mold and mildew in the substrate
  • Lightweight- 25 lb (11.3 kg) bag has coverage of 50 lb (22.7 kg) traditional mortar.
  • Exceeds ANSI A118.4, A118.11 and ANSI A118.15.
  • Contains no respirable crystalline silica levels that exceed the OSHA action level*.
  • ASTM C627 Extra Heavy (TCNA)
  • Conforms to ISO 13007-1 with a classification of C2ES1P1.
  • LATICRETE HYDROMATIC CURE CHEMISTRY™.
  • 60 minute open time.
  • Ultimate adhesion for porcelain and glass tiles.
  • Incredible bond to exterior glue plywood and concrete**.
  • Superior for exterior and submerged applications.
  • High shear bond strength.
  • Smooth creamy, lightweight formula.
  • 25 Year System Warranty***.
  • Unique color options are now available in all LATICRETE® grout colors when mixed with PERMACOLOR® Select Color Kits¥ (257 TITANIUM white only).


Description

The ultimate, lightweight one-step, polymer fortified, thin-set mortar that is ideal for the installation of Gauged Porcelain Tile Panels/Slabs (GPTP) as well as for interior and exterior installation of ceramic tile, porcelain tile, stone, quarry tile, pavers and brick.

General information

Color

Grey

White

Material

Polymer-modified cement

Warranty description

Lifetime

CMS

09 31 00 Thin-Set TilingPrimary
13 24 26 Steam Baths
13 12 23 Interior Fountains
13 12 13 Exterior Fountains
13 12 00 Fountains
13 17 33 Whirlpool Tubs
13 17 23 Therapeutic Pools
13 17 13 Hot Tubs
13 17 00 Tubs and Pools
13 11 33 Elevated Swimming Pools
13 11 23 On-Grade Swimming Pools
13 11 13 Below-Grade Swimming Pools
13 11 00 Swimming Pools
12 11 26 Ceramic Tile Murals
09 75 23 Simulated Stone Wall Facing
09 75 19 Stone Trim

09 75 19.13 Stone Base

09 75 13 Stone Wall Facing
09 75 00 Stone Facing

09 66 16.13 Portland Cement Terrazzo Floor Tile

09 66 16 Terrazzo floor tile
09 66 16 Terrazzo Floor Tile
09 63 43 Composition Stone Flooring
09 63 40 Stone Flooring

09 63 40 Stone Flooring

09 63 13.35 Chemical-Resistant Brick Flooring

09 63 13 Brick Flooring
09 63 00 Masonry Flooring
09 35 33 Chemical-Resistant Stone Tiling
09 35 36 Chemical-Resistant Concrete Tiling
09 35 13 Chemical-Resistant Ceramic Tiling
09 35 16 Chemical-Resistant Quarry Tiling
09 35 19 Chemical-Resistant Paver Tiling
09 35 00 Chemical-Resistant Tiling
09 34 36 Waterproofing-Membrane Concrete Tiling
09 34 33 Waterproofing-Membrane Stone Tiling
09 34 23 Waterproofing-Membrane Glass Mosaic Tiling
09 34 19 Waterproofing-Membrane Paver Tiling
09 34 16 Waterproofing-Membrane Quarry Tiling
09 34 13 Waterproofing-Membrane Ceramic Tiling
09 34 00 Waterproofing-Membrane Tiling
09 33 36 Conductive Concrete Tiling
09 33 33 Conductive Stone Tiling
09 33 23 Conductive Glass Mosaic Tiling
09 33 19 Conductive Paver Tiling
09 33 16 Conductive Quarry Tiling
09 33 13 Conductive Ceramic Tiling
09 33 00 Conductive Tiling
09 32 36 Mortar-Bed Concrete Tiling
09 32 33 Mortar-Bed Stone Tiling
09 32 23 Mortar-Bed Glass Mosaic Tiling
09 32 19 Mortar-Bed Paver Tiling
09 32 16 Mortar-Bed Quarry Tiling
09 32 13 Mortar-Bed Ceramic Tiling
09 32 00 Mortar-Bed Tiling
09 31 36 Thin-Set Concrete Tiling
09 31 33 Thin-Set Stone Tiling
09 31 19 Thin-Set Paver Tiling
09 31 16 Thin-Set Quarry Tiling
09 31 13 Thin-Set Ceramic Tiling
09 31 23 Thin-Set Glass Mosaic Tiling
09 30 39 Brick Tiling
09 30 36 Concrete Tiling
09 30 33 Stone Tiling
09 30 23 Glass Mosaic Tiling
09 30 19 Paver Tiling
09 30 16 Quarry Tiling
09 30 13 Ceramic tiling
09 30 13 Ceramic Tiling
09 30 00 Tiling

NMS

09 66 16 Carrelage En Terrazzo

09 63 40 Dallages En Pierre

09 30 13 Carrelages De Céramique

NMS

09 66 16 Terrazzo Floor Tile

09 63 40 Stone Flooring

09 30 13 Ceramic Tiling

Specification data - Thin-Set Tiling

Sustainability data

Contains Red List materials

No

Country of material origin

United States

Country of product manufacture

United States

EPD

Third party certifications

EPD

EPD

HPDC Certification

257 Titanium HPD (Grey & White)

GreenGuard Gold

Green Guard Gold Certification 257 TITANIUM

EPD

Cement Mortar Product Specific EPD

Literature

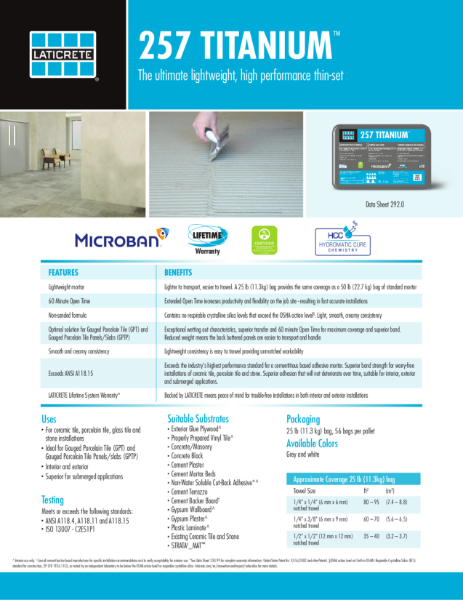

257 Titanium Sell Sheet
