Application

Bedrooms, bathrooms and kitchens.

Description

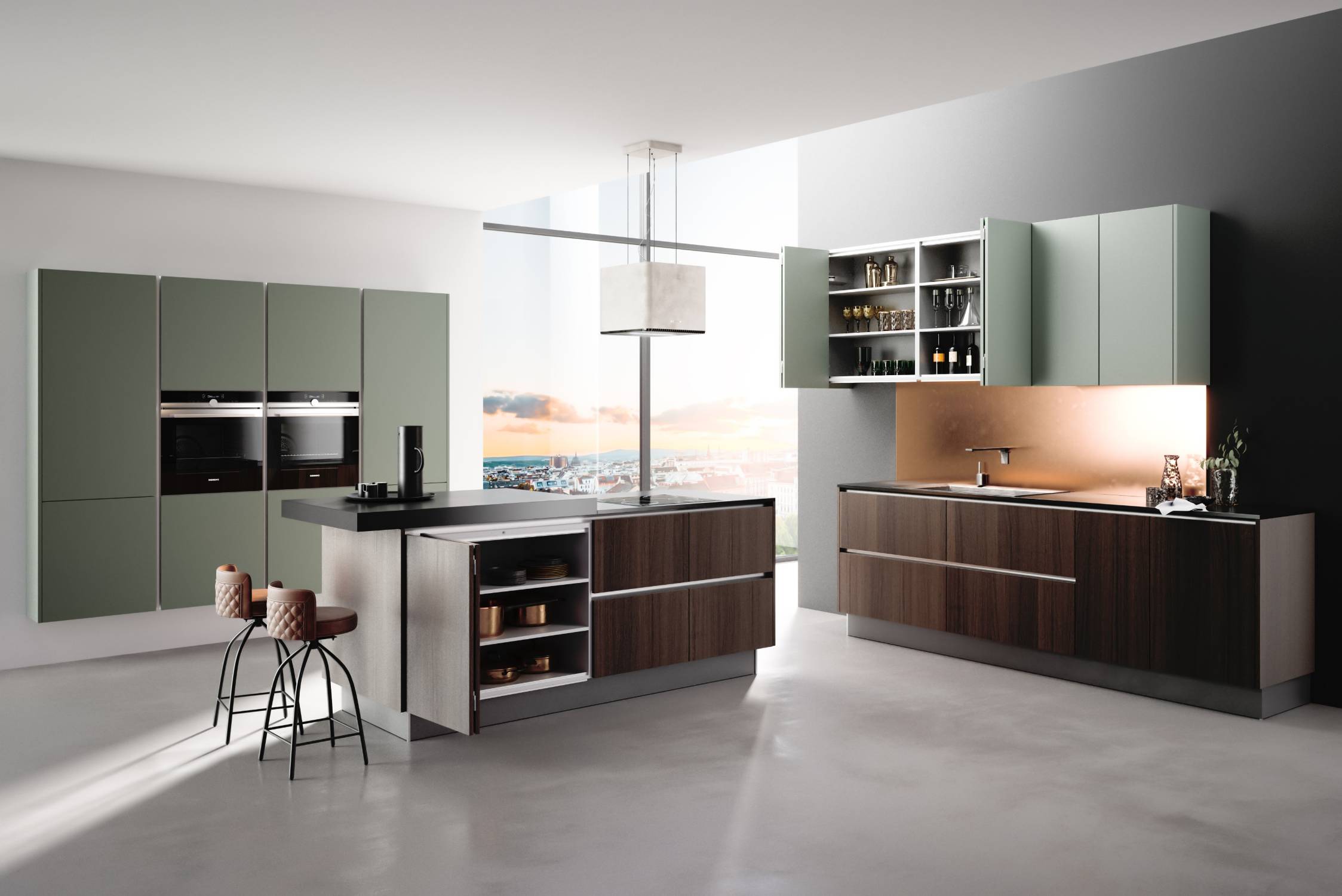

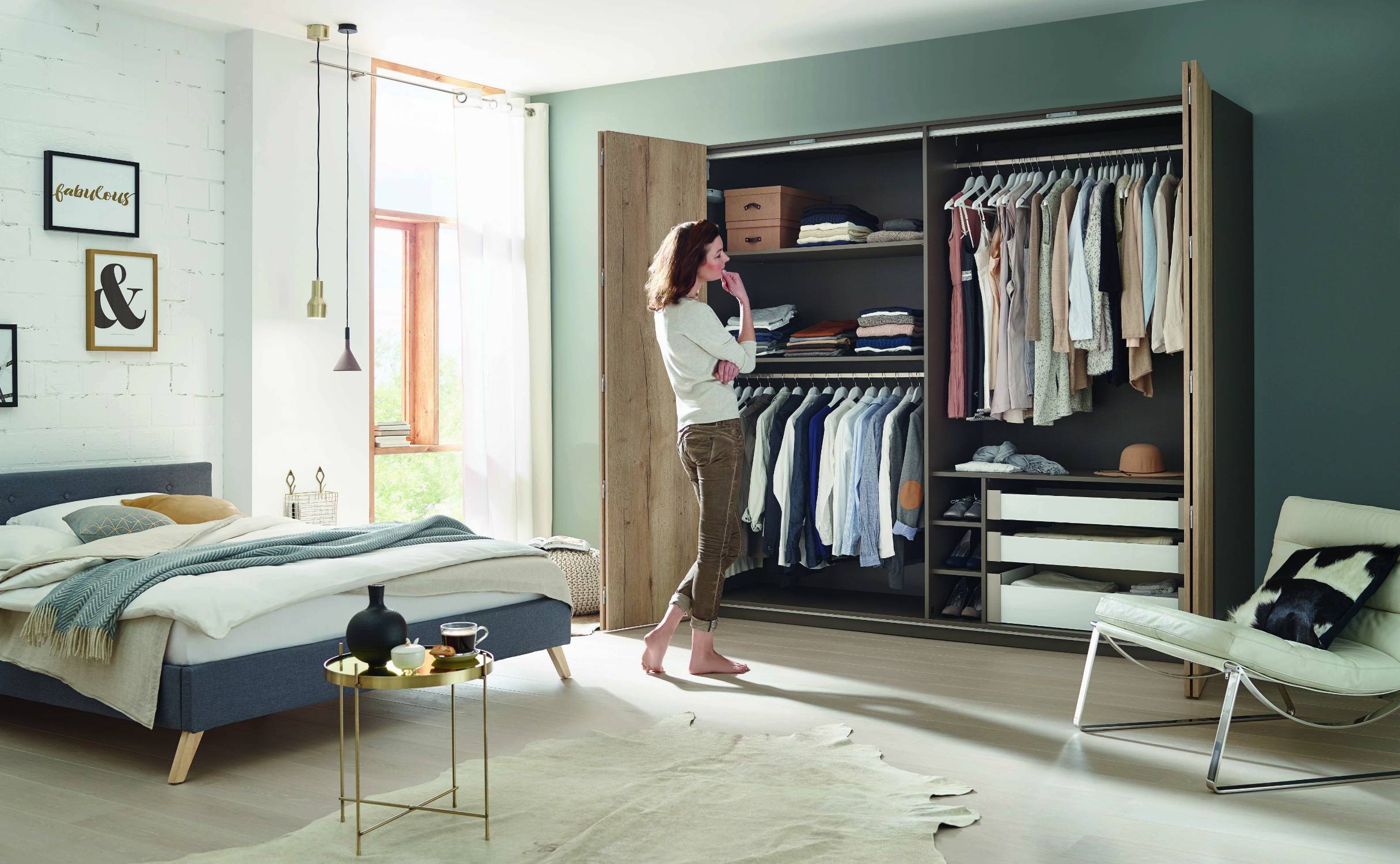

WingLine L lets you produce folding sliding doors in a completely new dimension of convenience. The revolutionary Push / Pull to move opening mechanism provides access to everything inside the cabinet with just one movement of the hand. An impressive panorama effect! Further highlights: optimised running performance, soft opening and closing, tool-less installation as well as minimal door protrusion for efficiently organising the space inside. WingLine L competently and securely moves door wings weighing up to 25 kg and measuring up to 2,400 mm in height: a talented all rounder for the bedroom, kitchen and office.

General information

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

NATSPEC National Classification System

0551a Joinery – Manufactured Casework

0551 Joinery

0572 Miscellaneous Furniture

SpeedSpec

06400 Joinery

12300 Manufactured Casework

SpecPack

06400 Joinery

11460 Unit Kitchens

12300 Manufactured Casework

Specification data - Door track and running gear

Standard

To AS 4145.1.

Fire performance

-

Standard

To AS 1905.1.

Maximum adjusted door weight

Refer to application type

Form

-

Top track

Aluminium.

Hangers

Aluminium integral hangers with nylon wheels.

Integral accessories

Floor guide.

Type

SlideLine L Description: Side mounted folding door system with guide profile at top / bottom. Number of door wings: 2 Door wing weight: 25 kg max. Side mounting: yes. Door material: Wood. Door wing width mm: 600 mm max. Door wing height mm: 2400 mm max. Push / Pull to move, Pull to move silent: Yes.

WingLine 230 Description: Side mounted folding door system with guide profile at top for large size doors. Number of door wings: 2. Door wing weight: 20 - 25 kg max. Side mounting: yes. Door material: Wood. Door wing width mm: 600 mm max. Door wing height mm: 3000 mm max. Push / Pull to move, Pull to move silent: No.

WingLine 26 Description: Side mounted folding door system with guide profile at top / bottom (optional). Number of door wings: 2. Door wing wight: depends on hinges. Side mounting: Yes. Door material: wood. Door wing width mm: 250 mm max. Door wing height mm: 1800 mm max (2200 mm max with lower guide).

Sustainability data

Country of product manufacture

Germany

Literature

White Paper - Solutions for Comfortable Living

White Paper - Solutions for Comfortable Living

White Paper - Productive Workspaces & The Benefit of Intelligent Ergonomic Design

White Paper - Productive Workspaces & The Benefit of Intelligent Ergonomic Design

Similar products from Hettich (Australia)

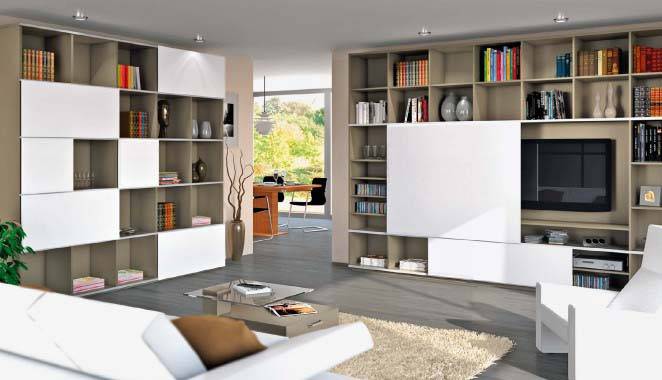

SlideLine M Sliding Door System
