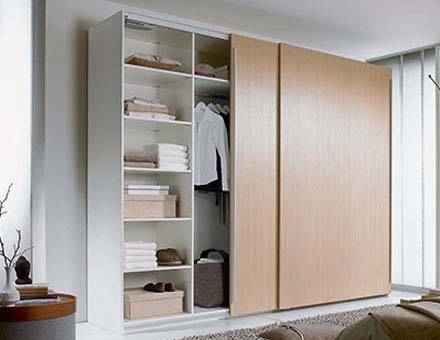

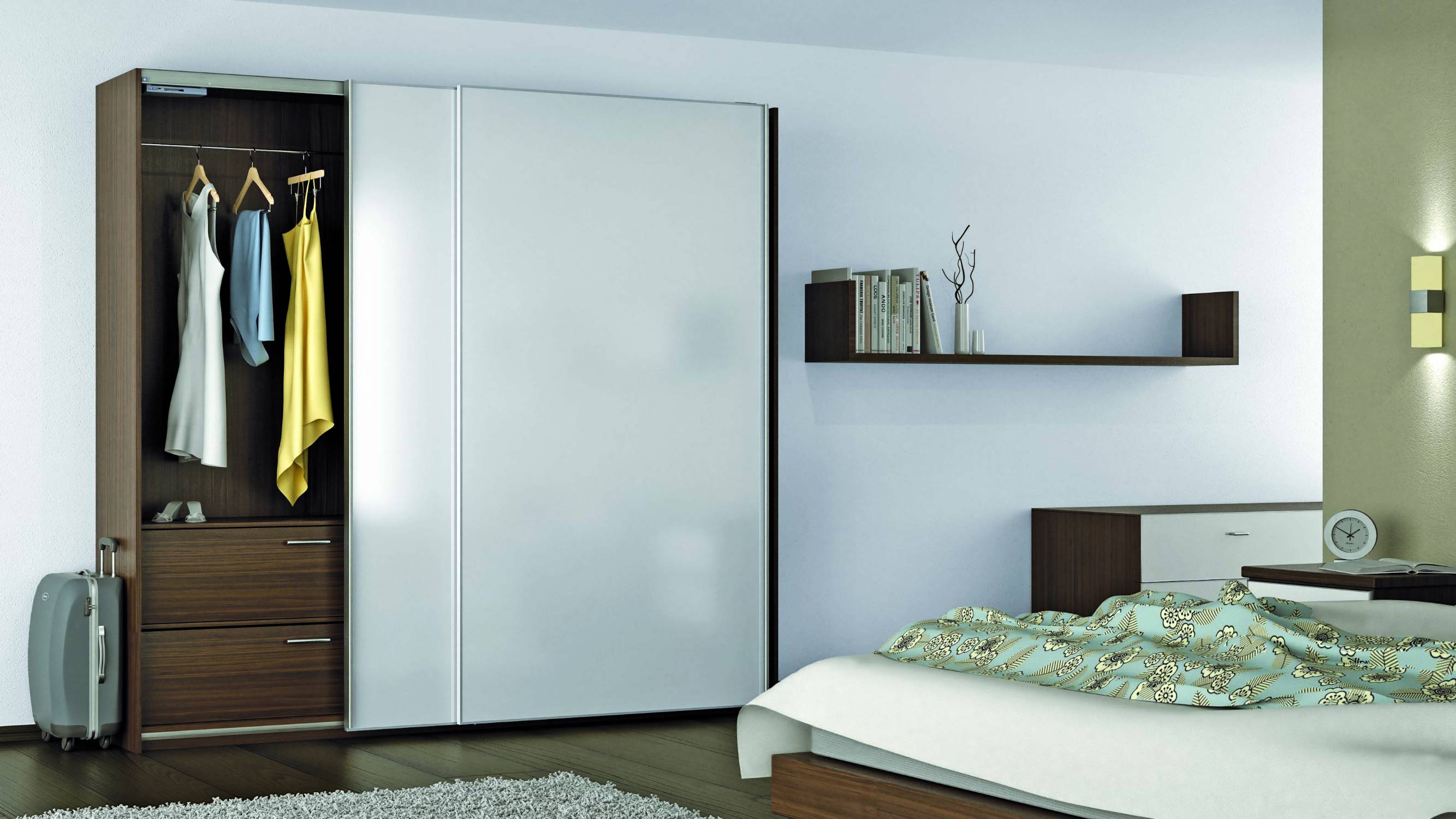

TopLine L Sliding Door System

Verified by manufacturer over a year ago

Hettich (Australia)

TopLine L / overlay door position / door movement in front of top panel

Jump to:
+61 1800 687 789 Website

Application

Top running sliding door system for large cabinets with 1,2,3, or 4 doors.

Description

Multitalented system with many qualities. TopLine L is particularly adaptable and provides the last word in user friendliness when it comes to installation and adjustment. TopLine L gives you an easy time, for example, when you need to even out tolerances. The Silent Systems create a feel of luxury that speaks to the senses on opening and closing. Even heavy, large doors reliably close with a mere whisper. With door movement in front of or on the top panel, TopLine L is suitable for 2 / 3-door cabinet designs, for wood and aluminium framed fronts.

General information

Material

Wood

Aluminium

Shape

-

Manufacturer guidance

Rectilinear.

Size

-

Manufacturer guidance

700 - 1500 mm W, 2600 mm H (max).

Uniclass

Pr_30_36_36_23 Door track and running gearPrimary

NATSPEC National Classification System

0551a Joinery – Manufactured Casework

0551 Joinery

0572 Miscellaneous Furniture

SpeedSpec

06400 Joinery

12300 Manufactured Casework

SpecPack

06400 Joinery

11460 Unit Kitchens

12300 Manufactured Casework

Specification data - Door track and running gear

Standard

To AS 4145.1.

Maximum adjusted door weight

50 kg.

Form

-

Top track

Aluminium.

Hangers

Aluminium integral hangers with nylon wheels.

2 Runners

Integral accessories

Floor guide.

Silent System: Soft closing, Soft opening, Soft guiding.

Execution

Fasteners for hardware

Door arrangement

Overlay, Horizontal action.

Sustainability data

Country of product manufacture

Germany
