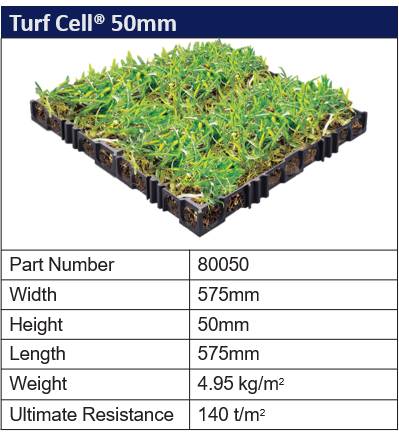

Turf Cell® - Permeable Paver - Grass Reinforcement

Verified by manufacturer over a year ago

Atlantis

Atlantis Turf Cell® highly effective product for root growth in vertical and horizontal plane. Unlike concrete systems, roots remain isolated and aerated, allowing grass to grow strong and homogeneous

Jump to:
(02) 9417 8344 Website

Application

Suitable application for:

  • Access roads.
  • Roadways.
  • Residential parking.
  • Roads.
  • Golf cart trails.
  • Pop-up vehicle access.
  • Helicopter landing strips.

Description

Atlantis Turf Cell® can be used in any landscape where low to medium use parking surfaces, access roads and driveways are required. Turf reinforcement provides a reinforced grid for evenly distributed plant growth.


With Atlantis Turf Cell® the sub-base required for cells is equal to or less than the sub-base required for concrete or bitumen. The elimination of the traditional storm water system required by impermeable paved areas provides an immediate cost saving when installing Atlantis Turf Cell for the same application.

General information

Color

Black

Finish

Smooth

Material

Polypropylene

Shape

Square

Length

575 mm

Width

575 mm

Height

50 mm

Warranty description

Seven year

Uniclass

Pr_25_93_60_61 Plastics cellular paversPrimary
Ss_30_14_90_11 Cellular plastics grass-filled paving systems

SpecPack

02920 Lawns and Grasses

SpeedSpec

02910 Landscape Works

02315 Excavation and Site Works

NATSPEC National Classification System

0252 Landscape – Natural Grass Surfaces

0250 Landscape - Combined

Specification data - Plastics cellular pavers

Material

Polypropylene.

Unit size

-

Length

575 mm.

Width

575 mm.

Depth

50 mm.

Colour

Black.

Recycled content

-

Value

85%.

Strength

140 t/m².

Weight

4.95 kg/m².

Flowrate

2.56 L/s/m @ 1% gradient.

Volume void

90%.

Sustainability data

Contains Red List materials

No

Country of material origin

Malaysia

Country of product manufacture

Malaysia

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

Guidance for specification option:

Recycled Polypropylene 15% Propriety Selected Materials.
