Gravel Cell® - Permeable Paver.

Verified by manufacturer over a year ago

Atlantis

The reduction of the traditional storm water drains required by impermeable parking lots provides an immediate cost saving when installing Gravel Cell® pavers for the same application.

Jump to:
(02) 9417 8344 Website

Application

Gravel Cell® is applicable to:

  • Roads.
  • Residential streets.
  • Vehicle or boat ramps.

Description

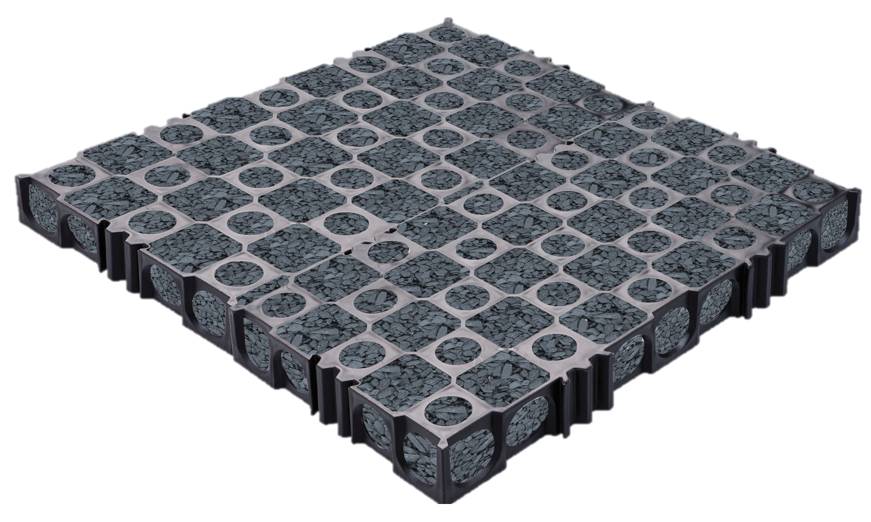

Atlantis Gravel Cell® gravel pavement reinforcement are permeable joint structures that allow water infiltration and form a robust, strong and durable surface, suitable for high traffic areas, access areas and parking lots.

General information

Color

Black

Finish

Smooth

Material

Polypropylene

Shape

Square

Length

575 mm

Width

575 mm

Height

50 mm

Warranty description

Seven year

Uniclass

Pr_25_93_60_61 Plastics cellular paversPrimary
Ss_30_14_90_12 Cellular plastics gravel-filled paving systems

SpeedSpec

02910 Landscape Works

02315 Excavation and Site Works

SpecPack

02315 Excavation and Site Works

NATSPEC National Classification System

0250 Landscape - Combined

0278 Granular Surfaces

0277 Pavement Ancillaries

Specification data - Plastics cellular pavers

Material

Polypropylene.

Unit size

-

Length

575 mm.

Width

575 mm.

Depth

50 mm.

Surface void area

70%.

Colour

Black.

Recycled content

-

Value

85%.

Strength

140 t/m².

Weight

4.95 kg/m³.

Flowrate

2.56 L/s/m @ 1% gradient.

Volume void

90%.

Sustainability data

Contains Red List materials

No

Country of material origin

Malaysia

Country of product manufacture

Malaysia

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

Guidance for specification option:

Recycled Polypropylene 15% Propriety Selected Materials.
