Application

Suitable for confined spaces.

Description

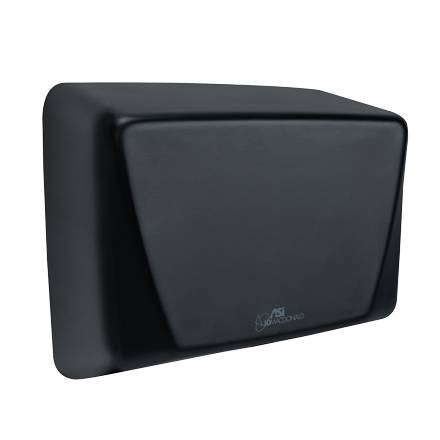

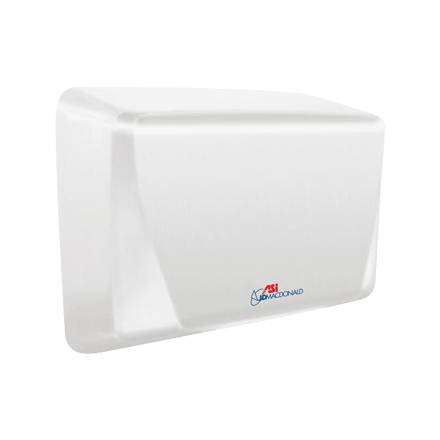

Turbo-Slim™ is a high-speed, automatic hand dryer with infrared sensor operation housed in a compact design of only 102 mm depth. Some of its features include:

  • Compact unit.
  • Infrared sensor operation.
  • Dry time of 15 seconds (approximate).
  • Auto-resetting thermostat.
  • Adjustable air speed and temperature.
  • Operating LED lights.

General information

Finish

Dependant on product configuration.

Material

Steel.

Shape

Rectangle

Warranty description

Five years.

Guidance for specification option:

First year for parts and labour, remaining four years for parts only.

Manufacturer guidance

Refer to manufacturer website for full warranty statement.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

NATSPEC National Classification System

0811 Sanitary Fixtures

0572 Miscellaneous Furniture

SpecPack

05500 Metalwork

SpeedSpec

05580 Architectural Metalwork and Whitegoods

Specification data - Hand dryers

Standards

To AS/NZS 60335.2.23.

Form

High velocity air.

Operation

Automatic.

Electrical supply

-

Power rating

1.0 kW.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50/60 Hz.

Body

-

Material

Steel (18 gauge, 1.2 mm).

Finish

Powder-coated.

Colour

White.

Dimensions

270 mm (width) x 215 mm (height) x 102 mm (depth).

Features

Hands only.

Air speed

199–296 km/h (adjustable).

Noise

60.5–67.2 dB(A).

Manufacturer guidance

Refers to noise level at 2 metres.

Drying time

15 seconds (approximate).

Installation

Surface-mounted.

Accessible design

DDA-compliant.

Manufacturer guidance

Must be installed in accordance with AS 1428.

Model

10-0199-2-00.
