Autobeam
Verified by manufacturer over a year ago

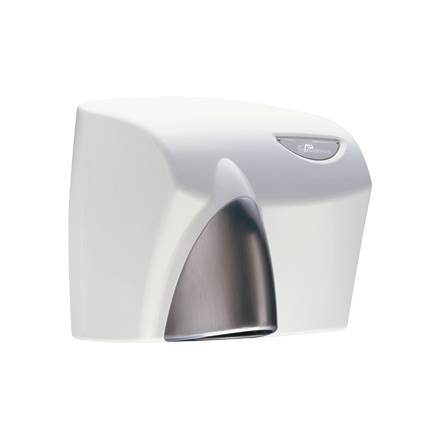

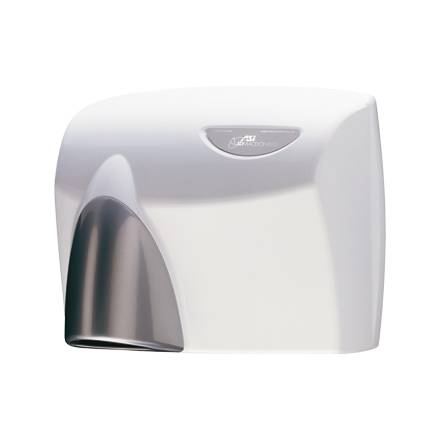

White Cover (Silver Gloss Nozzle)
White Cover (Silver Gloss Nozzle)
High performance, sensor-operated hand dryer.
Application
Suitable for heavy use settings and high traffic areas.
Description
Autobeam is an automatic hand dryer with sensor operation. It is made with heavy duty steel and a large fan and motor assembly suitable for heavy use. Some of its features include:
- High performance unit.
- Sensor operation.
- Dry time of 20 seconds (approximate).
- Easy installation with tamper-proof locking.
General information
Finish | Dependant on product configuration. |
Material | Steel. |
Shape | Rectangle |
Length | 300 mm |
Width | 220 mm |
Height | 251 mm |
Warranty description | Ten years. Guidance for specification option: First year for parts and labour, remaining nine years for parts only. Manufacturer guidanceRefer to manufacturer website for full warranty statement. |
Uniclass | |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
NATSPEC National Classification System | 0811 Sanitary Fixtures 0572 Miscellaneous Furniture |
SpecPack | 05500 Metalwork |
Specification data - Hand dryers
Standards | To AS/NZS 60335.2.23. |
Form | Warm air. |
Operation | Automatic. |
Electrical supply | |
Power rating | 2.4 kW. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50/60 Hz. |
Body | |
Material | Steel (1.6 mm). |
Finish | Powder-coated. |
Colour | White cover with silver gloss nozzle. |
Dimensions | 300 mm (width) x 251 mm (height) x 220 mm (depth). |
Features | Hands only. |
Air speed | 75.6 km/h. |
Noise | 63.4 dB(A). Manufacturer guidanceRefers to noise level at 2 metres. |
Drying time | 20 seconds (approximate). |
Installation | Surface-mounted. |
Model | HDABWHTSG. |
