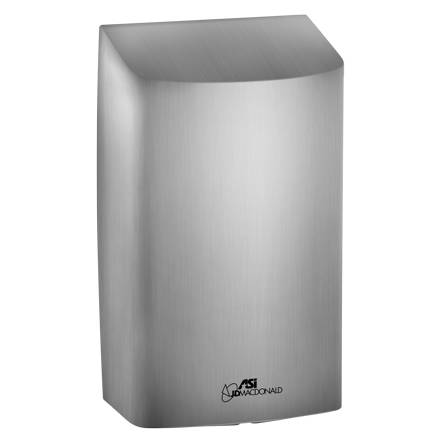

Turbo-Chic

Verified by manufacturer over a year ago

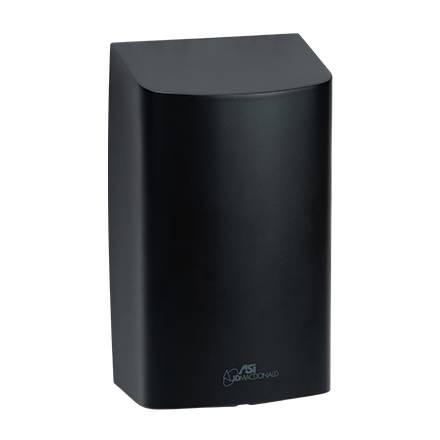

Matt Black Stainless Steel

ASI JD MacDonald Pty Ltd Variant:

Compact high-speed, sensor-operated hand dryer with carbon filter.

Jump to:
1800 023 441 Website

Application

Suitable for confined spaces.

Description

Turbo-Chic is a high-speed, automatic hand dryer with infrared sensor operation housed in a compact design of only 100 mm depth. Some of its features include:

  • Compact unit.
  • Infrared sensor operation.
  • Dry time of 15 seconds (approximate).
  • Auto-resetting thermostat.
  • Adjustable air speed and temperature.
  • Operating LED lights.
  • Carbon filter included for prolonged motor life.

General information

Material

Stainless steel.

Shape

Rectangle

Length

152 mm

Width

100 mm

Height

268 mm

Warranty description

Five years.

Guidance for specification option:

First year for parts and labour, remaining four years for parts only.

Manufacturer guidance

Refer to manufacturer website for full warranty statement.

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

SpecPack

05500 Metalwork

NATSPEC National Classification System

0572 Miscellaneous Furniture

0811 Sanitary Fixtures

SpeedSpec

05580 Architectural Metalwork and Whitegoods

Specification data - Hand dryers

Standards

To AS/NZS 60335.2.23.

Form

High velocity air.

Operation

Automatic.

Electrical supply

-

Power rating

1.0 kW.

Rated operational voltage (Ue)

220–240 V a.c.

Frequency

50/60 Hz.

Body

-

Material

Stainless steel (18 gauge, 1.2 mm).

Finish

Powder-coated, matt black.

Dimensions

152 mm (width) x 268 mm (height) x 100 mm (depth).

Features

Hands only.

Air speed

295–421 km/h (adjustable).

Noise

62.4–67.4 dB(A).

Manufacturer guidance

Refers to noise level at 2 metres.

Drying time

15 seconds (approximate).

Installation

Surface-mounted.

Accessible design

DDA-compliant.

Manufacturer guidance

Must be installed in accordance with AS 1428.

Model

10-0194-2-41.
