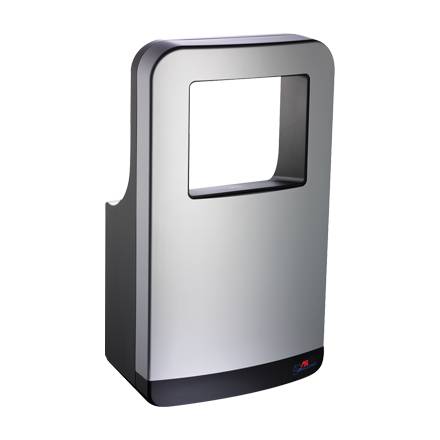

Tri-Umph™
Verified by manufacturer over a year ago
Silver
Silver
High-speed, sensor-operated hand dryer with HEPA filter.
Application
Suitable for very heavy usage settings and high humidity environments.
Description
Tri-Umph™ is a high-speed, automatic hand dryer with sensor operation. It comes with an ultra-hygienic triple HEPA filter, with air blowing down from vents above in order to eliminate water splash-back. Some of its features include:
- Ultra-hygienic unit (triple HEPA filter).
- Sensor operation.
- Dry time of 12 seconds (approximate).
- Adjustable air speed and temperature.
- Operating LED lights and antimicrobial ABS cover with Silver Ions.
- Ergonomic design with no water splash-back.
General information
Material | ABS plastic. |
Shape | Rectangle |
Length | 322 mm |
Width | 197 mm |
Height | 588 mm |
Warranty description | Five years. Guidance for specification option: First year for parts and labour, remaining four years for parts only. Manufacturer guidanceRefer to manufacturer website for full warranty statement. |
Uniclass | |
NATSPEC National Classification System | 0811 Sanitary Fixtures 0572 Miscellaneous Furniture |
SpecPack | 05500 Metalwork |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
Specification data - Hand dryers
Standards | To AS/NZS 60335.2.23. |
Form | High velocity air through HEPA filter. |
Operation | Automatic. |
Electrical supply | |
Power rating | 1.5 kW. |
Rated operational voltage (Ue) | 220–240 V a.c. |
Frequency | 50/60 Hz. |
Body | |
Material | ABS plastic (3 mm). |
Finish | Satin. |
Colour | Silver. |
Dimensions | 322 mm (width) x 588 mm (height) x 197 mm (depth). |
Features | Hands only. |
Air speed | 234–343 km/h (adjustable). |
Noise | 63.3–69.2 dB(A). Manufacturer guidanceRefers to noise level at 2 metres. |
Drying time | 12 seconds (approximate). |
Installation | Surface-mounted. |
Model | 10-20200-2. |
