Verified by manufacturer 8 months ago
1600 mm diameter - 3 wing

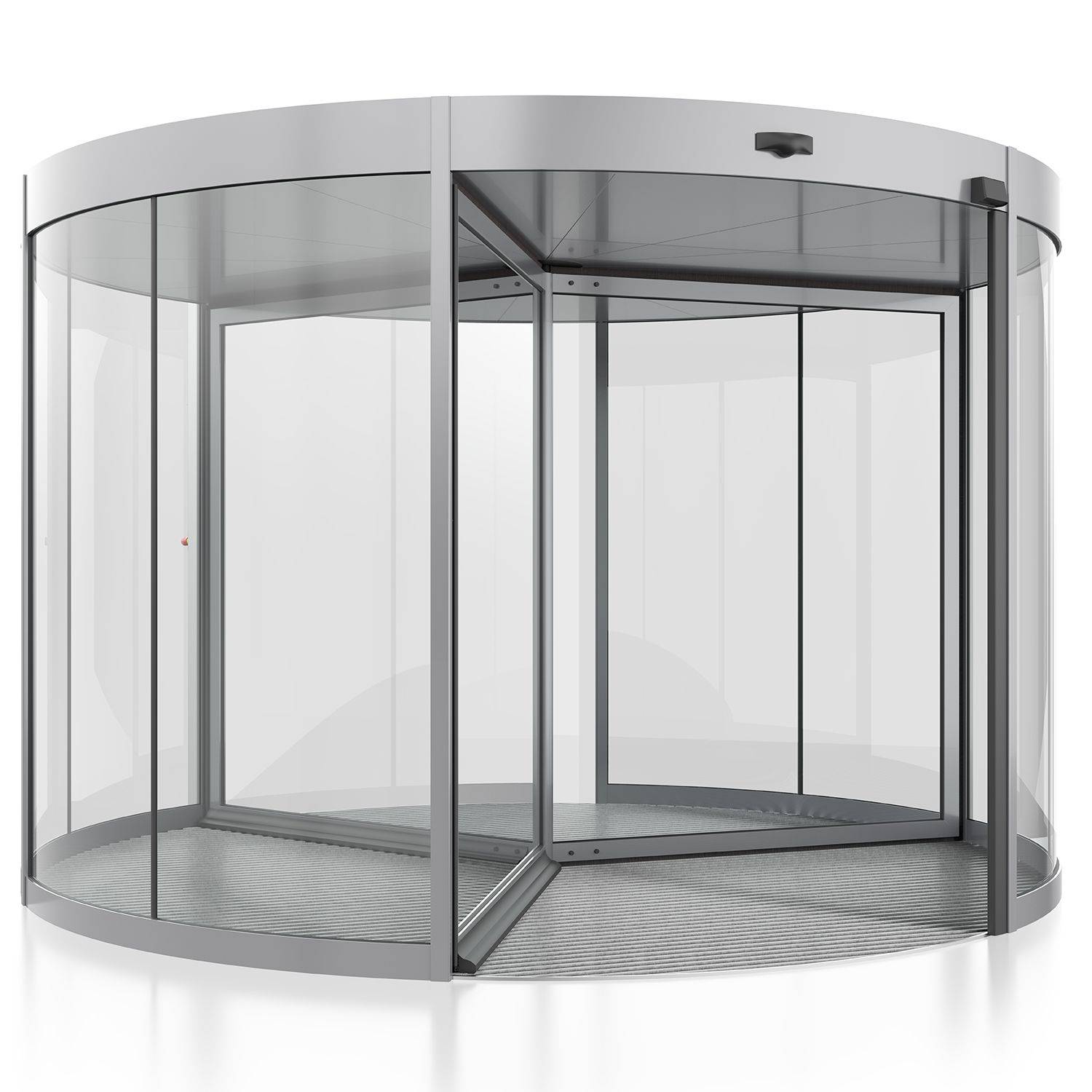

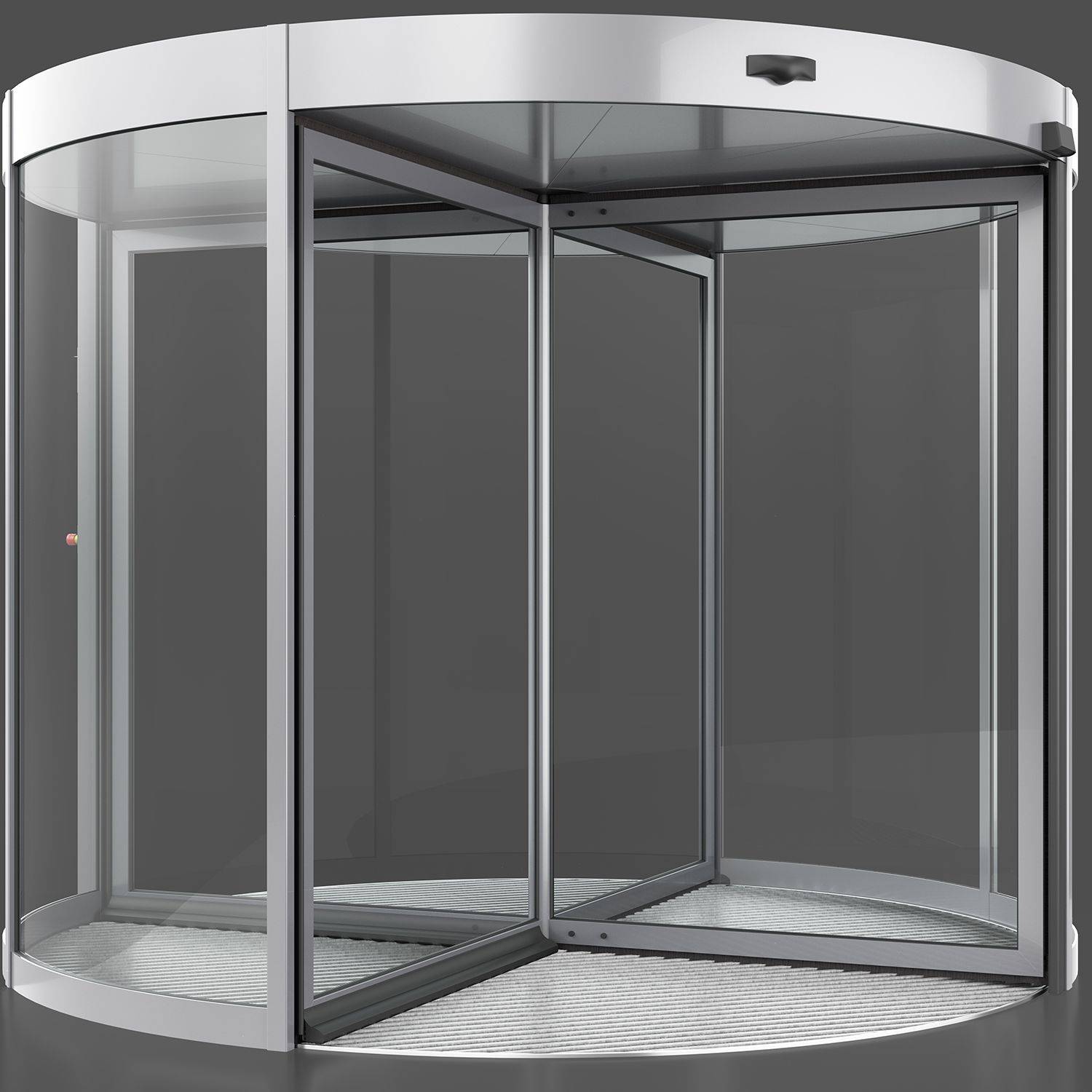

Automatic revolving door.
Offices, hotels, supermarkets and many types of public buildings.

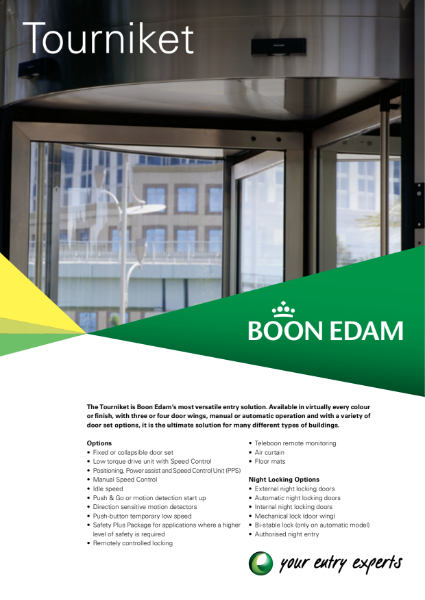

The Tourniket is the most versatile revolving door that can be fully customised to reflect your building’s design and functionality, available with three or four door wings, with automatic operation and also available in range of colours and finish options.
Available with a door set that can automatically fold open when the disabled access button is pushed.
Features and benefits:
Medium traffic flow applications such as offices, hotels and many other types of commercial buildings.
12 months standard product warranty. Extended warranty available on request.
NATSPEC National Classification System
0451a Windows and Glazed Doors – Metal
0451 Windows and Glazed Doors
08200 Doors and Door Frames
08900 Glazed Curtain Walls
08450 Fully Glazed Entrance Facades
To AS 5007.
Materials and finishes
50mm dots as standard.
Canopy height: 200-1200 mm
Activation and control system
BRS Optional extra safety sensors.
2 x 22 person per minute.
Automatic night locking door.
Internal night locking doors.
Mechanical lock (door wing).
Authorised night entry.
Visual signage on the door wings and curved walls.
CE plus package.
200-240 VAC, 50/60 Hz
Operating temperature range
-20 to +50°C
Operating power consumption
Stationary power consumption.
AC motor, 3-phase.
Door wing height
2100 - 3600 mm
Emergency exit only with collapsible door set option.
Requirements are subject to local regulations.
Country of material origin
Country of product manufacture
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
