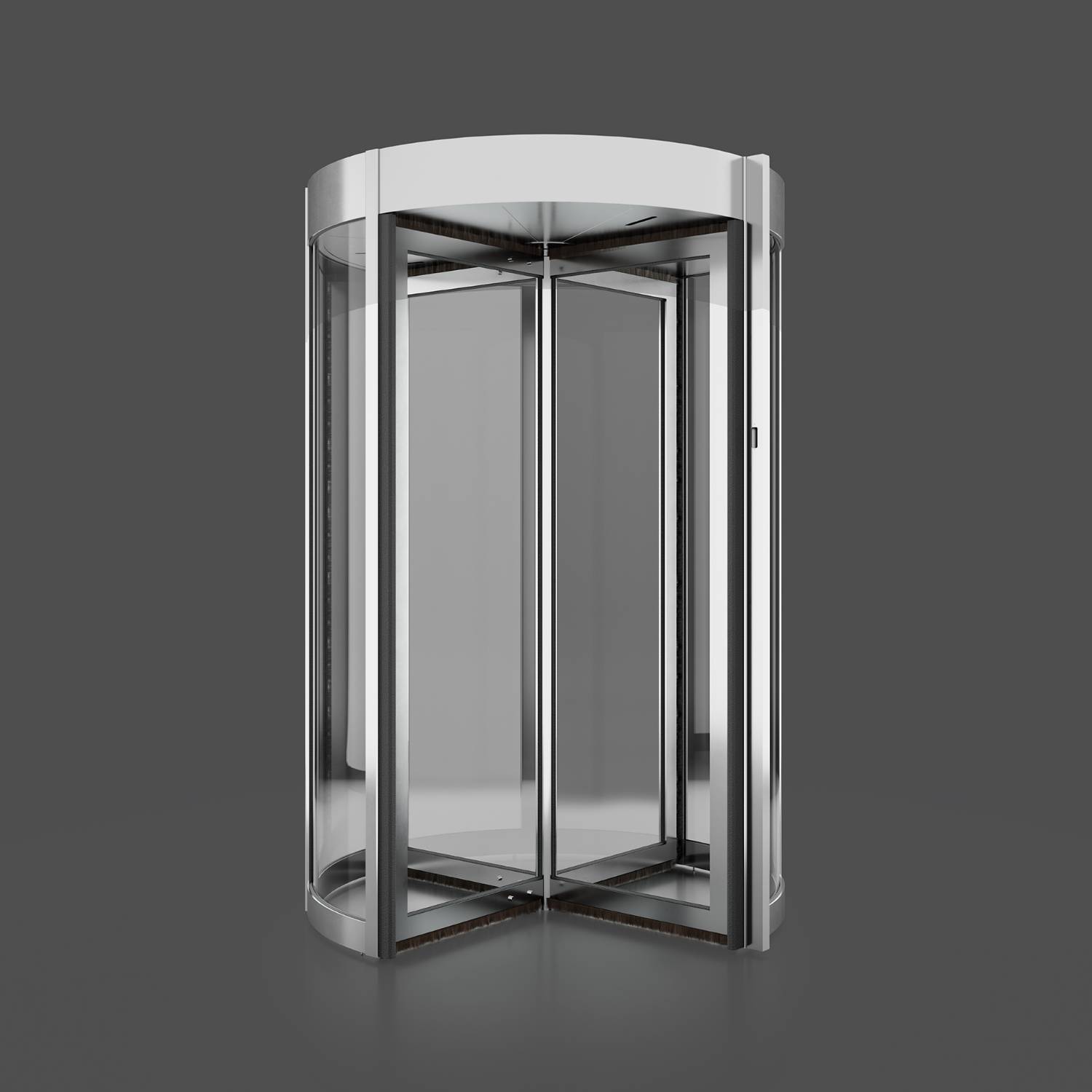

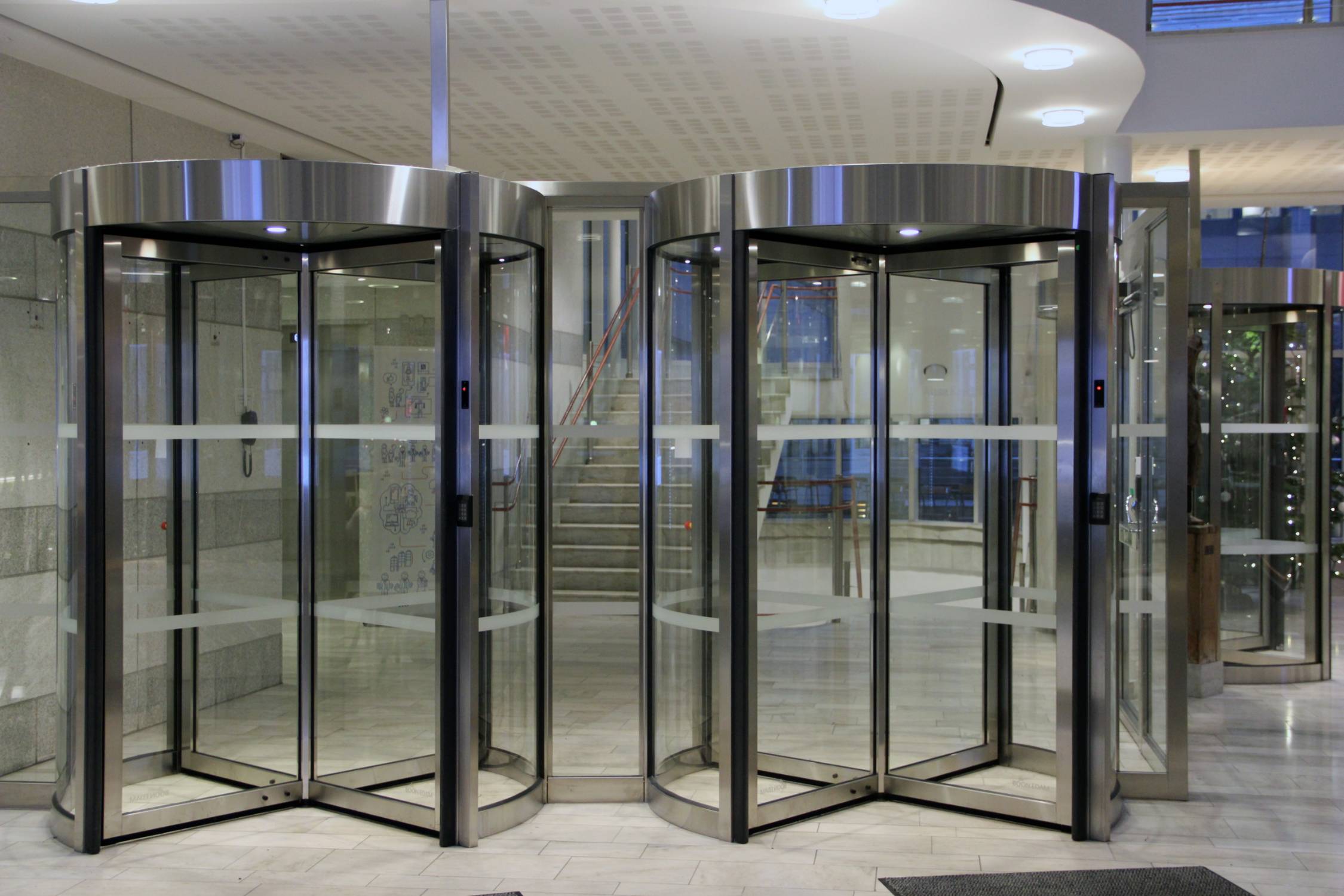

Tourlock 180 - Revolving door

Verified by manufacturer over a year ago

Boon Edam Australia Pty Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Automatic, four-winged high security revolving door designed to integrate with any access control system.

Jump to:
BOS
+61426703326 Website

Application

High-security commercial building applications such as government buildings, banks, airports and corporate offices.

Description

High security revolving door designed to integrate with any access control system ranging from card readers to biometric devices.


Tourlock 180 is a four-wing, fully automatic security revolving door offering the dual advantage of tailgating and piggybacking prevention along with simultaneous, bi-directional traffic. During its 180° rotation, an overhead security system will check for tailgating and optionally, piggybacking.


Features and benefits:

  • Automatic operation
  • 3-wing and 4-wing security revolving door.
  • Prevents tailgating.
  • Optional StereoVision anti-piggybacking system.
  • On board user communication system.
  • Integrates with card and biometric access control systems.
  • Door wings rotate 180° while sensors check unauthorised entry is not being attempted whilst ensuring other authorised users are allowed an additional 90° or 180° anti-clockwise rotation to provide uninterrupted passage.
  • Bi-directional controlled traffic flow.
  • Seamless integration with access control and biometric devices.
  • Burglar-Resistance Protection Package (RC3)
  • Bullet-Resistance Protection Package (BR4NS)



This technologically advanced door allows bi-directional traffic, which allows nbsp authorised & nbsp - users to enter and leave a building at the same time. Authorisation & nbsp via a signal from an access solution control system, such as a card reader or biometrics device, sends a signal and on acceptance only – the door will begin to rotate & nbsp.



General information

Finish

Powder-coated

Anodized

Manufacturer guidance

Can be clad with stainless steel, bronze, brass, other metals or wood; contact manufacturer for more information.

Material

Aluminium

Width

1600 mm

Height

2200 mm

Warranty description

One year

Manufacturer guidance

12 month standard product warranty. Extended warranty available on request.

Uniclass

Pr_30_59_24_04 Automatic revolving doorsetsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08200 Doors and Door Frames

SpecPack

08900 Glazed Curtain Walls

08450 Fully Glazed Entrance Facades

Specification data - Automatic revolving doorsets

Configuration

Four wings.

Materials and finishes

-

Glazing

-

Type

Vandal resistant safety glass (P2A).

Manifestation

Glass decals.

Tinted and low iron glass options available.

Canopy

Heigth at 200 mm

Manufacturer guidance

Other height options available. To check with the manufacturer.

Activation and control system

-

Type

PLC.

Safety devices

SRB.

EM Stop.

SRD.

SRT safety buffers.

Fail safe.

Tourlock brake.

Vandal resistant safety glass.

Burglar resistant RC3

Bullet resistant package with BR4NS glass

EBS safety sensor

Collapsible doorset.

Fail secure

Locking mechanism

Electro-magnetic, mechanical.

Integral accessories

UPS

Security

Tailgating sensor system detection.

Piggyback detection (One way - on entry).

Facial recognition.

Night lock - mechanical lock.

Certification

Machine Directive 2006/42/EU

EMC Directive 2014/30/EU

RoHS Directive 2011/65/EU

EN17352 - Safety functional and mechanical

EN1627 – Burglar resistant package

Show more

Capacity

18 People / minute in each direction.

Diameter

1600 mm

Guidance for specification option:

Throat width at 1038 mm.

1800 mm

Guidance for specification option:

Throat width at 1180 mm.

2000 mm

Guidance for specification option:

Throat width at 1321 mm.

2200 mm

Guidance for specification option:

Throat width at 1463 mm.

Height

2200 mm

Canopy height

200 mm

Mode of operation

Bi-directional, simultaneous

Integral accessories

4 - LED ceiling lights.

Voice module.

Security mode switch.

Power supply

110 - 240 V, 50 - 60 Hz

Weight

900 kg

Power

100 W

Access control

Card reder.

I/O Dry contacts for virtually any accesscontrol system.

Operating temperature

-15°C to +50°C.

Sustainability data

Country of material origin

Netherlands

Country of product manufacture

Netherlands
