TOPSPAN® 40

Verified by manufacturer over a year ago

TOPSPAN® 40 (NSW, ACT, QLD, SA, WA and NT)

Lysaght Variant:

Steel roofing batten.

Jump to:
+61 1800 800 789 Website

Application

Suitable for steel roof in commercial and residential applications. Can also be used in walling applications.

Description

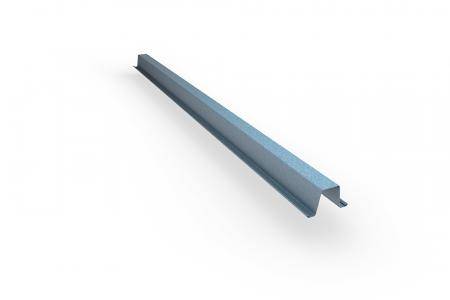

TOPSPAN® 40 is a 40 mm deep roofing batten for residential steel or tile roof. Can also be used in walling applications. Some of its features include:

  • Embossed top flange surface for easier screw grip.
  • Nominal lapping to ensure continuity and straightness of fastener alignment.
  • High strength, lightweight and will not shrink, warp or twist.

General information

Finish

TRUECORE® steel

Material

Steel.

Manufacturer guidance

TRUECORE® steel.

Height

40 mm

Warranty description

-

Manufacturer guidance

Covered by BlueScope material warranties. Terms and limitations apply.

Uniclass

Pr_20_85_46_53 Metal furring channelsPrimary
Pr_20_76_51_21 Cold-formed galvanized steel sections

NATSPEC National Classification System

0342 Light Steel Framing

SpecPack

05400 Cold-Formed Metal Framing

SpeedSpec

05400 Cold Formed Metal Framing

Specification data - Metal furring channels

Material

TRUECORE® steel.

Section

Top hat.

Size

75 mm (width) x 40 mm (height).

Finish

Aluminium-coated to AS 1397.

Corrosion resistance

AM150.

Manufacturer guidance

Refers to coating class for corrosion protection.

Grade

G550.

Manufacturer guidance

Refers to steel grade.

Thickness

0.55 mm.

Guidance for specification option:

TS4055.

0.75 mm.

Guidance for specification option:

TS4075.

Length

-

Manufacturer guidance

Indicate batten length.

Support fasteners

0.75 mm (G550) steel support, No. 10-16 x 16 hex head.

1.0 mm (G550) steel support, No. 10-16 x 16 hex head.

1.2 mm (G500) steel support, No. 12-14 x 20 hex head.

1.5 mm (G450) steel support, No. 12-14 x 20 hex head.

Hardwood, M5.5-11 x 40 BATTENZIPS.

Show more

Sustainability data

Country of product manufacture

Australia
