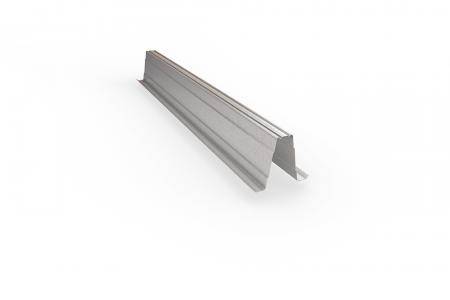

TOPSPAN® 120

Verified by manufacturer over a year ago

Lysaght

Steel roof purlin or wall girt.

Jump to:
+61 1800 800 789 Website

Application

Suitable for rural, residential and small commercial market applications where longer spans or strength is required. Other applications include:

  • Garages and awnings.
  • Shelving and flooring.
  • Handyman projects.

Description

TOPSPAN® 120 is a mm deep profile used as a roof purlin or wall girt, commonly referred to as a rural purlin. It is commonly used in lieu of the traditional Cee and Zed purlins due to its versatility. Some of its features include:

  • Two longitudinal stiffeners at top flange for improved performance.
  • High strength, lightweight and will not shrink, warp or twist.
  • Can be mounted directly onto rafters or against columns without the use of cleats or bolts.

General information

Finish

Aluminium-coated.

Material

Steel.

Manufacturer guidance

ZINCALUME® steel.

Width

169 mm

Height

120 mm

Warranty description

-

Manufacturer guidance

Covered by BlueScope material warranties. Terms and limitations apply.

Uniclass

Pr_20_85_46_53 Metal furring channelsPrimary
Pr_20_76_51_21 Cold-formed galvanized steel sections

NATSPEC National Classification System

0342 Light Steel Framing

SpecPack

05400 Cold-Formed Metal Framing

SpeedSpec

05400 Cold Formed Metal Framing

Specification data - Metal furring channels

Material

ZINCALUME® steel.

Section

Top hat.

Size

169 mm (width) x 120 mm (height).

Finish

Aluminium-coated to AS 1397.

Corrosion resistance

AM125.

Manufacturer guidance

Refers to coating class for corrosion protection.

Grade

G550.

Manufacturer guidance

Refers to steel grade.

Thickness

0.70 mm.

Guidance for specification option:

TS12070.

0.90 mm.

Guidance for specification option:

TS12090.

1.00 mm.

Guidance for specification option:

TS12010. Subject to enquiry.

Length

-

Manufacturer guidance

Indicate batten length.

Support fasteners

1.0 mm (G550) steel support, M6.5-12 x 30 hex head.

1.2 mm (G500) steel support, No. 14-10 x 25 hex head.

1.5 mm (G450) steel support, No. 14-10 x 25 hex head.

1.9 mm (G450) steel support, No. 14-10 x 25 hex head.

Hardwood, M5.5-11 x 40 BATTENZIPS.

Show more

Sustainability data

Country of product manufacture

Australia
