Sorberfoam™
Sorberfoam™

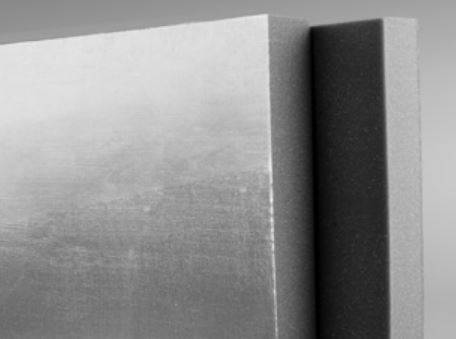

Combustion modified acoustic foam.
Application
Designed to meet market requirements for reducing reverberation noise in the domestic, commercial, OEM and automotive markets.
Suitable application for areas such as:
- Recording studios, home theatre and music rooms.
- Designed wedge shapes for anechoic chambers.
- Machinery enclosures, compressors and generator casings.
- Decorative wall and ceiling absorbing panels.
- Decorative faced hanging ceiling baffles.
- Office partition screens.
- Automotive engine bays, cabin and cavity linings.
- Air conditioning units.
- Control room and telephone areas.
- Alternative to mineral fibre products that tend to shed fibres during application.
Description
Sorberfoam™ is a combustion modified, flexible acoustic foams, offering high noise absorption properties across a broad frequency range. Some of its significant features includes:
- Can absorb substantially more energy across the entire frequency range than traditional polyurethane foams.
- Engineered to resist degradation or foam rot.
- Eliminates hazards and offers an equal and safer alternative in noise absorption
- Low cost, long lasting, with over 40 years’ industry use.
- Custom designs available, profile cut into 2D or 3D shapes.
- Does not shed irritating fibres.
- Self-extinguishes upon flame removal.
- No ozone-depleting substances generated during manufacture.
- Free from formaldehyde and phenolic resins.
- Quick and east to install in awkward places.
- Easy to cut, adhere or mechanically fasten into position
- Available with self-adhesive backing for ease of install.
- Available in various widths, rolls or sheets.
- Available in a variety of surface facing options.
General information
Uniclass | |
SpeedSpec | 07200 Thermal and Acoustic Insulation |
SpecPack | 07200 Thermal and Acoustic Insulation |
NATSPEC National Classification System | 0472 Acoustic Insulation |
Specification data - Polyurethane (PUR) foam boards
Form | Combustion modified, flexible acoustic foam. |
Thickness | 6 mm. 12 mm. 25 mm. 50 mm. Manufacturer guidanceOther sheet size options available depending on MOQ. Check with the manufacturer. |
Roll width | 1400 mm. Guidance for specification option: Usable width (untimmed). |
Roll length | 15 m. 30 m. 60 m. Manufacturer guidanceOther sheet size options available depending on MOQ. Check with the manufacturer. |
Density | 28 kg/m³. |
Foam board insulation | Polyurethane foam. |
Colour | Grey. Guidance for specification option: Other colour options available by request. Check with the manufacturer. |
Thermal Conductivity: | 0.033 W/mK. |
Fire performance | Self extinguishing. Guidance for specification option: Test method for flammability of interiors as per FMVSS-302. HF-1. Guidance for specification option: Test method for flammability of material as per UL94. |
Acoustic performance | 0.40. Guidance for specification option: NRC for Sorberfoam™ 12 mm. 0.70. Guidance for specification option: NRC for Sorberfoam™ 25 mm. 0.90. Guidance for specification option: NRC for Sorberfoam™ 50 mm. Manufacturer guidanceTest method done as per ISO 354. |
Sustainability data
Contains Red List materials | No |
