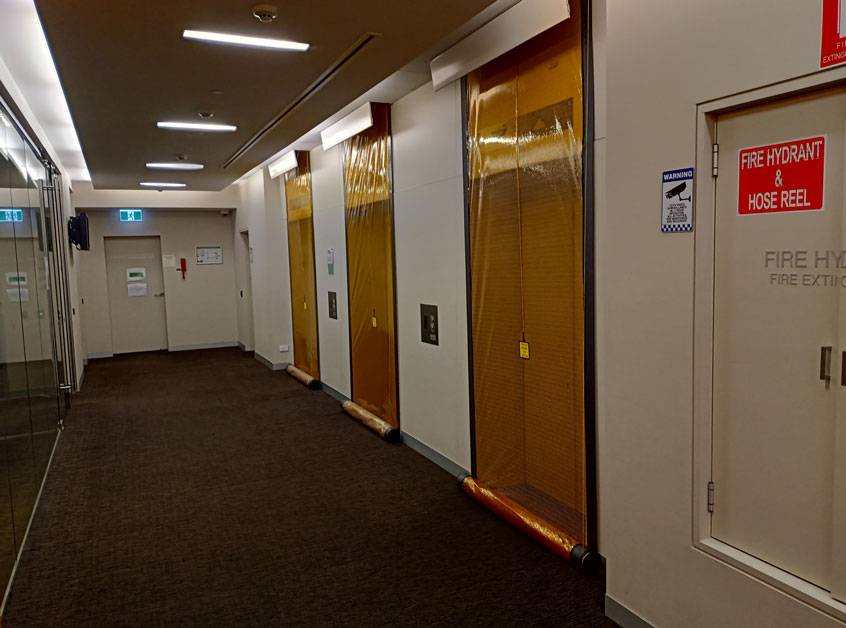

Smoke Guard M400/M600
Verified by manufacturer over a year ago
M400
M400
Smoke containment screen with magnetic sealing.
Application
Suitable for small to medium openings in hospitals and universities. It is the preferred alternative to smoke lobbies.
Description
Smoke Guard M400/M600 is a smoke containment screen which includes magnetic sealing for failsafe occupant egress. Some of its features include:
- Fire tested in accordance with AS 1530.7.
- Patented magnetic auxiliary rail and restraint system to avoid trapped lift occupants.
- High quality fittings and motors.
- Gravity fail safe.
General information
Color | Silver |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
SpecPack | 08330 Roller Shutter Doors 10240 Grilles and Screens |
NATSPEC National Classification System | 0454 Overhead Doors 1002 Fire Services Design and Install |
SpeedSpec | 08330 Roller Shutter Doors |
Specification data - Vertical smoke curtains
Performance | |
Smoke leakage | |
Standard | To AS 1530.7. |
Value | ≤ 9.5 m³/h/m².Guidance for specification option: Tested at 200° C at pressure differential of 20 Pa. Manufacturer guidanceTested system is 1.5 x 3 m. |
Durability | 2000 maintenance-free cycles. |
Closing time | 200 mm/s (nominal). |
Time delay for deployment | Manufacturer guidanceUpon smoke detection by smoke detector or on general alarm. |
Fail safe close | Manufacturer guidanceGravity fail safe. |
Battery back-up | Manufacturer guidanceCan be provided as an optional extra. |
Curtain | |
Size and shape (maximum) | Manufacturer guidanceAvailable in sizes up to 1.52 m W x 3 m H. Heights up to 3.3 m may be possible on a project specific basis. Contact local manufacturer for further details. |
Head box | |
Size | 267 mm H x 230 mm D.Manufacturer guidanceWidth varies depending on specified curtain size. Contact local manufacturer for specific dimension needs. |
Side guides | |
Size | 51 mm W x 13 mm D.51 mm W x 19 mm D.51 mm W x 25 mm D.Manufacturer guidanceDepth is dependent on projection needed to clear lift surround or buttons. |
Controls | Control box.Guidance for specification option: Requires a 240 V, 10 A power supply and an alarm signal through a normally closed dry contact. |
Integral accessories | Alarm signal.Guidance for specification option: Should be in the form of a normally closed dry contact. A localised smoke or heat detector may also be used. Rewind switch. |
Box weight | 45 kg (for opening widths up to 1 m). 60 kg (for opening widths up to 2 m). 75 kg (for opening widths up to 2.3 m). Manufacturer guidanceRefers to system weight. |
MaximumWorkingPressure | 50 Pa (fully closed curtain). Manufacturer guidanceRefers to maximum pressure resistance. |
Optional features | Battery back-up. |
Installation | To be installed by Smoke Control approved installer network. |
Sustainability data
Country of product manufacture | Australia |
