Supercoil
Verified by manufacturer over a year ago

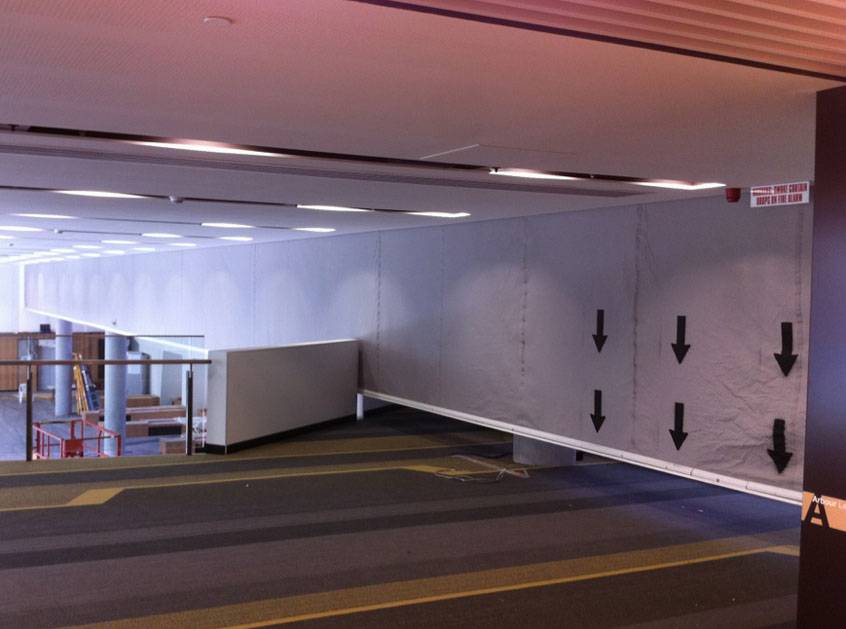

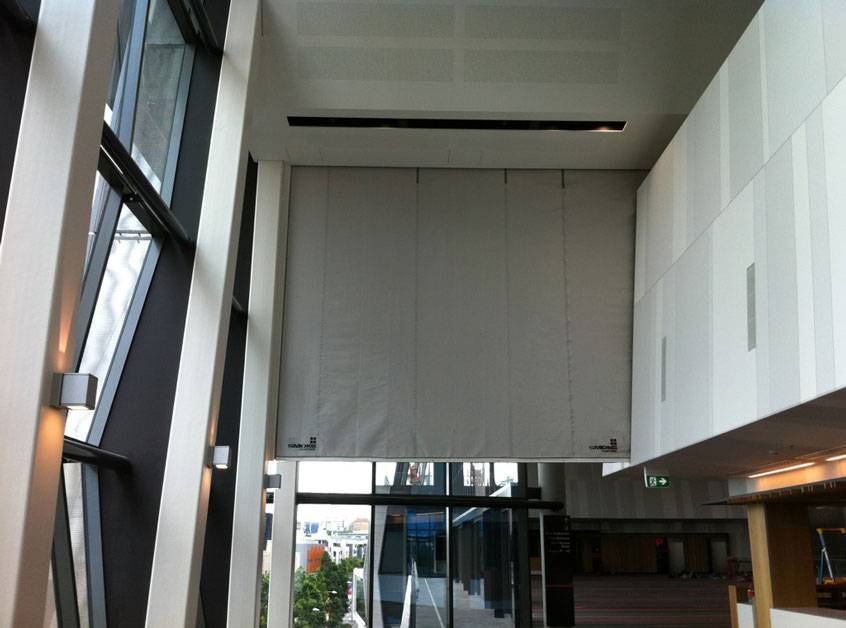

Long span smoke curtain with a single head box.
Application
Suitable for medium to very large openings up to 50 m wide. Ideal for convention centres, atriums, shopping centres, warehouses and for openings in smoke proof walls in healthcare and residential care buildings.
Description
Supercoil is a long span smoke curtain. It is the first and still the only type of long span curtain that offers a single compact head box. Some of its features include:
- Complies with EN 12101.1.
- Rated D30 through DH120.
- Long span.
- "Rod and pocket" side guide.
- Durable and compact.
General information
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year Guidance for specification option: Standard warranty. Manufacturer guidanceExtended warranty available in conjunction with back to back maintenance agreement. |
Uniclass | |
SpecPack | 10240 Grilles and Screens 08330 Roller Shutter Doors |
NATSPEC National Classification System | 0454 Overhead Doors 1002 Fire Services Design and Install |
SpeedSpec | 08330 Roller Shutter Doors |
Specification data - Vertical smoke curtains
Performance | |
Smoke performance level | |
Standard | To EN 12101-1 |
Smoke leakage | |
Standard | To EN 12101-1. |
Value | ≤ 25 m³/h.Manufacturer guidanceRefers to fabric permeability only. Available in ratings of D30, D60 and D120. |
Closing time | 150 mm/s (for curtain sizes up to 20 m W x 6 m H).90 mm/s (for curtain sizes up to 30 m W x 10 m H).Manufacturer guidanceRefers to nominal value. |
Battery back-up | Manufacturer guidanceCan be provided as an optional extra. |
Curtain | |
Size and shape (maximum) | Manufacturer guidanceAvailable in sizes up to 30 m W x 10 m H. Contact local manufacturer for specific dimension needs. |
Colour | Grey. |
Head box | |
Size | 200 mm H x 190 mm D (for curtain heights up to 3.5 m).250 mm H x 190 mm D (for curtain heights up to 6 m).290 mm H x 235 mm D (for curtain heights up to 9 m).Manufacturer guidanceWidth varies depending on specified curtain size. For widths greater than 20 m, contact local manufacturer. |
Side guides | |
Size | 105 mm W x 74 mm D (for system sizes up to 12 m W x 6 m H).160 mm W x 100 mm D (for system sizes up to 20 m W x 10 m H).Manufacturer guidanceFor widths greater than 20 m, contact local manufacturer. |
Controls | Control box.Guidance for specification option:
|
Integral accessories | Alarm signal.Guidance for specification option: Should be in the form of a normally closed dry contact. A localised smoke or heat detector may also be used. |
Box weight | 25 kg/m of system width (for curtain heights up to 3 m). 35 kg/m of system width (for curtain heights up to 4 m). 45 kg/m of system width (for curtain heights up to 6 m). Manufacturer guidanceRefers to system weight. |
MaximumWorkingPressure | 100 Pa (fully closed curtain up to 50 m²). 50 Pa (fully closed curtain up to 100 m²). Manufacturer guidanceRefers to maximum pressure resistance. For curtains greater than 100 m², contact local manufacturer. |
Optional features | Battery back-up. Rewind switches. Curtain applied signage. Sounders and strobes. Staged deployment. |
Installation | To be installed by Smoke Control approved installer network. |
Sustainability data
Country of product manufacture | Australia |
