Probond Ultra®

Verified by manufacturer over a year ago

Probond Ultra® Metallic

PROBOND Architectural Variant:

An aluminium composite panel, suitable for high quality long-lasting formwork and signage applications.

Jump to:
+61 1300 72 73 74 Website

Application

This product is ideal for the following applications:

  • Signage applications.
  • Corporate branding.
  • Pylon signs.
  • Exhibition stands & displays.
  • Display.
  • Directional signage.
  • Internal fitouts.
  • Forwork applications.

Description

Probond Ultra is an aluminium composite panel, suitable for high quality long-lasting formwork and signage applications.

A dual-sided sheet delivering superior performance when fabricated, folded and formed. It comes with significant features such as:


  • With PPG FEVE coating for extended durability.
  • Design to withstand harsh Australian UV condition.
  • Perfect panel for 90 degree folding and other formwork.
  • With superior quality marine grade aluminium.
  • Easy-peel clear protective film.
  • Lightweight yet rigid.
  • Excellent long-term performance.
  • Superior routing performance.
  • Versatile and folds easily.
  • Extended durability.

General information

Uniclass

Pr_40_10_77_77 SignboardsPrimary

NATSPEC National Classification System

0511 Lining

0581 Signage

SpeedSpec

10400 Signage

09260 Dry Wall Partitions and Linings

SpecPack

09260 Dry Wall Partitions and Linings

10400 Signage

Specification data - Signboards

Signs

-

Finish

-

Coating

PPG FEVE Coating

Dry film thickness

25 ±1 μm.

Guidance for specification option:

Paint thickness in microns.

Finish:

Gloss.

Guidance for specification option:

One side in high gloss finish.

Matt.

Guidance for specification option:

Reverse side finish.

Colour

Bronze Metallic (Matt).

Dark Grey Metallic (Matt).

Gold Metallic (Matt).

Silver Metallic (Gloss).

Silver Metallic (Matt).

Show more

Manufacturer guidance

All colours may not be available in all listed panel sizes. Check with the manufacturer for detailed colour guide.

Core facing material

Marine grade aluminium alloy.

Thickness

0.30 mm.

Adhesive

Henkel™ hot melt adhesive.

Core

Pure LDPE (low density polyethylene).

Panel size

2440 x 1220 mm.

3660 x 1220 mm.

2440 x 1500 mm.

3050 x 1500 mm.

3660 x 1500 mm.

Show more

Overall thickness

3 mm.

Acoustic performance

0.05.

Guidance for specification option:

Sound absorption rating.

24dB.

Guidance for specification option:

Sound attenuation rating.

Thermal resistance (R-value)

0.008.

Environmental performance

No substances containing CFC and VOCs released.

Guidance for specification option:

RoHS compliant and do not contain lead, cadmium, chromium or mercury. Check with the manufacturer for details.

Sustainability data

Contains Red List materials

No

Recyclability

100% Recyclable.

Literature

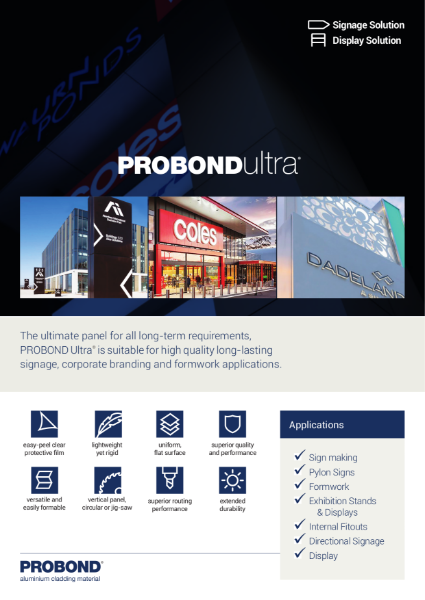

PROBOND Ultra Overview

PROBOND Ultra Overview

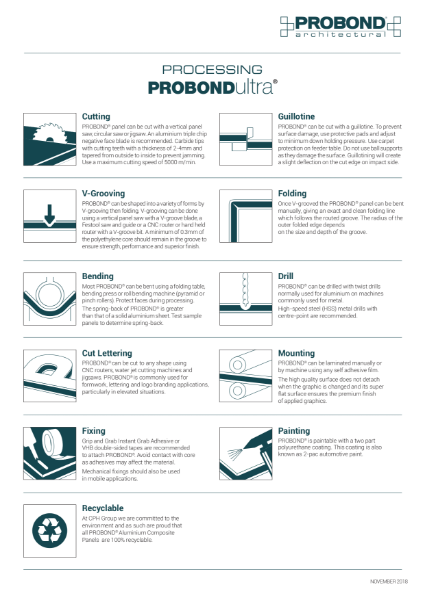

PROBOND Ultra Processing Guide

PROBOND Ultra Processing Guide

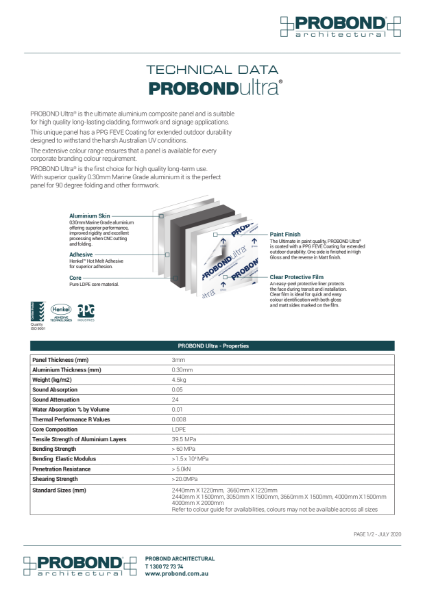

PROBOND Ultra Technical Data

PROBOND Ultra Technical Data

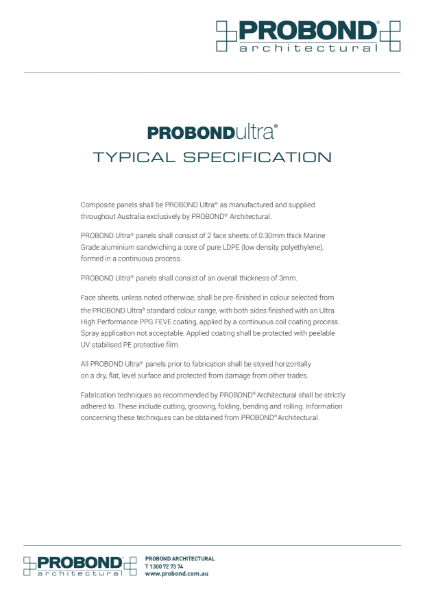

PROBOND Ultra Typical Specification
