Probond Classic®X30

Verified by manufacturer over a year ago

PROBOND Architectural

A high grade panel ideal for all general signage, as it is easily processed, making it suitable for all routing and formwork requirements.

Jump to:
+61 1300 72 73 74 Website

Application

This product is ideal for the following applications:

  • General signage applications.
  • Directional signage.
  • Internal fit-outs.
  • Exhibition stands & displays.
  • CNC Lettering.
  • Directional signage.

Description

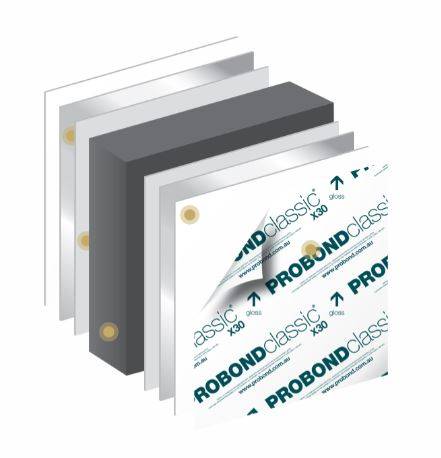

Probond Classic®X30 is a high grade panel with a 0.30 mm premium grade aluminium skin, ideal for all general sign making, formwork and innovative point of sale display requirements. It comes with significant features such as:

  • Easy-peel clear protective film.
  • Lightweight yet rigid.
  • Comes with uniform flat surface.
  • Superior quality and performance.
  • Excellent long-term performance.
  • Superior routing performance.
  • Versatile and folds easily.
  • Extended durability.
  • Available in large range of sizes.

General information

Warranty description

Five years.

Guidance for specification option:

Warranty does not cover damage to and/or failure of the finish caused by improper storage or handling of the material prior to installation. To check with the manufacturer for details and warranty conditions.

Size

Available in large range of sizes. Check with the manufacturer.

Uniclass

Pr_40_10_77_77 SignboardsPrimary

NATSPEC National Classification System

0511 Lining

0581 Signage

SpeedSpec

10400 Signage

09260 Dry Wall Partitions and Linings

SpecPack

09260 Dry Wall Partitions and Linings

10400 Signage

Specification data - Signboards

Signs

-

Finish

-

Coating

PPG Polyester coating.

Dry film thickness

17 ±1 μm.

Guidance for specification option:

Paint thickness in microns.

Colour

Gloss White

Matt White

Gloss Jet Black

Matt Jet Black

Core facing material

Premium grade aluminium skin.

Thickness

0.30 mm.

Adhesive

Henkel hot melt adhesive.

Core

Pure LDPE (low density polyethylene).

Panel size

2440 x 1220 mm.

3660 x 1220 mm.

2440 x 1500 mm.

3050 x 1500 mm.

4000 x 1500 mm.

Overall thickness

3 mm.

Thermal resistance (R-value)

0.008.

Acoustic performance

24dB.

Guidance for specification option:

Sound attenuation rating.

0.005.

Guidance for specification option:

Sound absorption rating.

Environmental performance

No substances containing CFC and VOCs released.

Guidance for specification option:

The mineral filled core does not contain Chlorine, Nitrogen or Sulphur. RoHS compliant and do not contain lead, cadmium, chromium or mercury. Check with the manufacturer for details.

Sustainability data

Contains Red List materials

No

Recyclability

100% Recyclable.

Literature

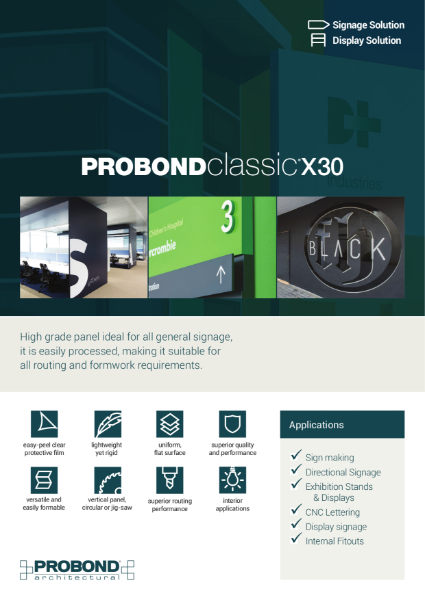

PROBOND Classic X30 Overview

PROBOND Classic X30 Overview
