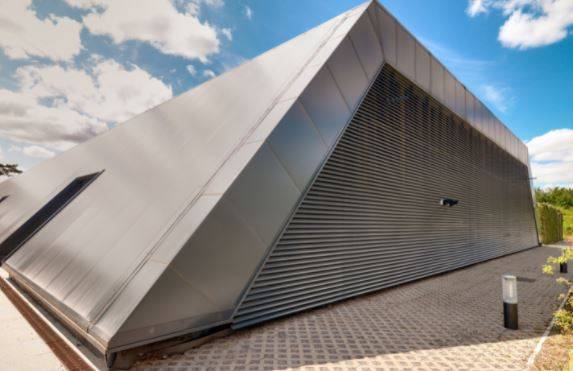

LSM

Verified by manufacturer over a year ago

Construction Specialties

Part of C/S louvre system that gives clean, architectural lines because the support behind the blades, making the mullions almost invisible.

Jump to:
+61 1300 272 602 Website

Application

Buildings and structures with multiple openings.

Description

A louvre system that uses hidden mullions, gives clean, architectural lines because the support system is behind the blades, making the mullions almost invisible. Mullions can be spaced roughly every 1 to 2m and blades are typically 3 to 4m long, (usually dictated by transport restrictions and the weight of the blades). Hidden mullion systems are normally used to provide screening and protection to buildings with multiple openings.

General information

Uniclass

Pr_30_59_48_04 Aluminium louvre panel unitsPrimary

NATSPEC National Classification System

0457 External Screens

SpecPack

10240 Grilles and Screens

SpeedSpec

08520 Metal Windows and Glazed Doors

Specification data - Aluminium louvre panel units

Size (l x w x d)

-

Manufacturer guidance

Refer to manufacturer for maximum height and widths.

Material

Aluminium.

Finish

-

Coating

Powder-coated.

Colour

-

Manufacturer guidance

Refer to manufacturer for range of colours available.

Construction

Hidden mullions.

Air intake and exhaust performance

-

Standard

To AS/NZS 4740.

Louvre configuration

-

Blade orientation

Horizontal.

Blade pitch

75 mm.

Blade angle

Fixed.

Depth

155 mm.
