Harlequin WoodSpring - Vinyl Top

Verified by manufacturer over a year ago

Harlequin (Australia)

A permanently installed sprung floor system.

Jump to:
+61 2 9620 7770 Website

Application

Ballet, contemporary, modern and theatrical use, aerobics, zumba, hip-hop, jazz, street, salsa, percussive including flamenco, Irish and tap, multi-purpose use, concerts and for operatic performances.

Description

A modern update of the traditional ‘basket weave’ construction that originated in the 19th Century but with 21st Century advancements. Harlequin WoodSpring is comprised of a layer of select Class 3 Exterior (EN 314) plywood, a triple-layer of custom machined southern yellow pine laid at right angles, with shock absorption and energy return enhanced by dual density elastomer blocks attached at predetermined intervals to the underside.


Harlequin WoodSpring is installed by our own highly-skilled technical team and all work is fully guaranteed. Different surface options include:


  • A Harlequin vinyl performance floor, selected from our range.
  • Solid hardwood - in beech, oak or maple.
  • Engineered board with a hardwood wear layer - in beech, oak or maple.


If a Harlequin vinyl performance floor is chosen, a moisture resistant suspension board will be included underneath, along with a colour matched composite edging profile, which will be installed around the finished edges. If solid hardwood or engineered board is chosen, the skirting will be ‘optional’.

General information

Color

-

Manufacturer guidance

Available in:


  • Black.
  • Dark grey
  • Grey
  • Hazlenut
  • Light grey
  • white

Finish

Depends on Vinyl top chosen.

Material

Wood.

Warranty description

Five year.

Uniclass

Ss_30_42_72_72 Resilient sheet floor covering systemsPrimary

NATSPEC National Classification System

0654 Multilayered Board Flooring

SpeedSpec

09646 Floating Flooring

SpecPack

09620 Sports Flooring

09646 Floating Flooring

Specification data - Resilient sheet floor covering systems

Rigid underlay

-

Type

Dual density shock dampening elastomer blocks, triple layer of custom machined southern yellow pine, select WBP plywood and moisture-resistant, suspension board.

Fasteners

Screws and Staples.

Sheet

-

Type

Vinyl.

Fixing

Acrylic polymer emulsion adhesive/ Water based rubber resin. adhesive.

Seams

Welded.

Skirtings and trims

Edge profiles.

Substrate preparation

Can be laid on any hard, smooth sub-floor.

Temperature conditions for use

Room temperature 18c-27c, Humidity 40-6-%.

FloorCoveringThickness

Minimum floor thickness (before inclusion of chosen finish) 91mm.

Weight

Minimum floor weight (before inclusion of chosen finish) 24kg./m²

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Literature

Harlequin - Specifying dance floors, a guide for architects

Harlequin - Specifying dance floors, a guide for architects

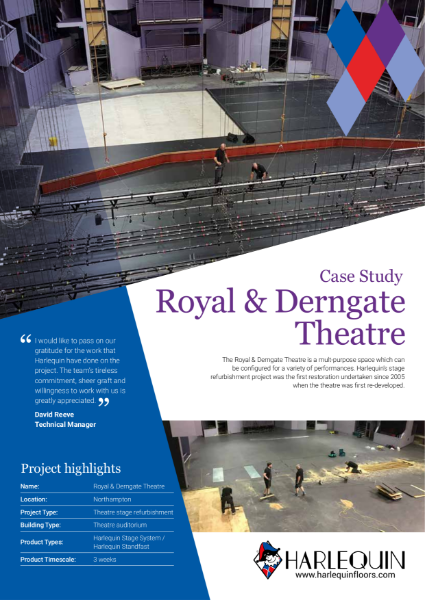

Case Study - Royal & Derngate Theatre
