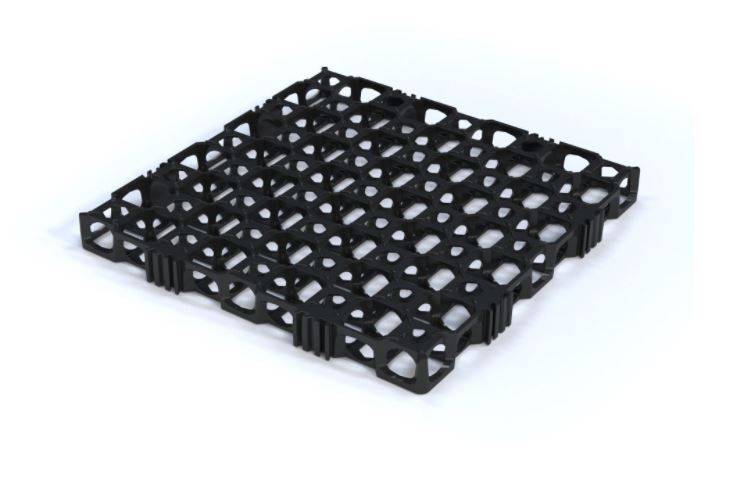

Extreme Duty 50 mm HexCell Drainage Cell

Verified by manufacturer over a year ago

Ausdrain

Suitable for high-risk sub-soil drainage and commercial underground drainage systems.

Jump to:
1300 287 372 Website

Application

Suitable for use in areas such as:

  • Rigid permeable paving.
  • Underground tanks.
  • Privacy screening.
  • Facades and balustrades.
  • Vertical gardens.
  • Aviation drainage.
  • Railway drainage.
  • Under slab drainage.
  • Commercial driveway drainage.


Description

50mm HexCell creates a permanent, non-clogging void between the concrete slab and the soil profile that will not collapse or distort. The 50mm void enables a direct flow of water to designated outlets avoiding the risk of water build-up and penetration. Some of its features and benefits include:

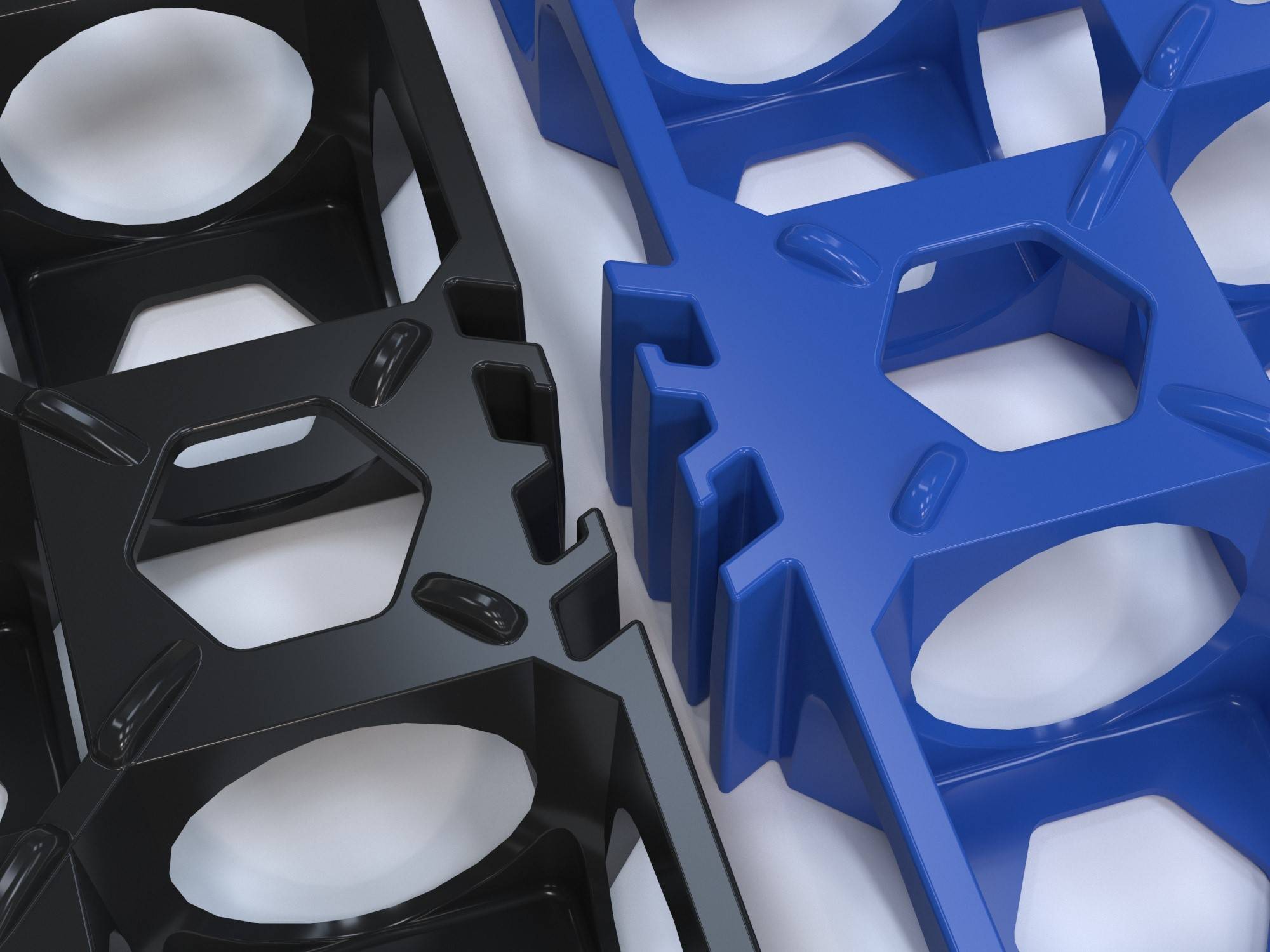

  • Has anti-slip design and unique dovetail clipping system.
  • High compressive strength and easy to handle and quick to install.
  • Open structure, durable, lightweight, supplied in large panels.
  • Multi-directional installation and reduces movement.
  • Trafficable and high flow rate.
  • Long life expectancy and environment-friendly.
  • Chemical and bacteria resistant.
  • The large surface and capacity void space enables superior drainage efficiency compared to the small voids created by using a gravel system.

General information

Uniclass

Pr_15_57_25_74 Polypropylene geocell boardsPrimary

SpecPack

07130 Waterproofing and Tanking

NATSPEC National Classification System

0411 Waterproofing – External and Tanking

SpeedSpec

07130 Waterproofing and Tanking

Specification data - Polypropylene geocell boards

Material

Polypropylene.

Recycled content (minimum)

100%.

Flow rate

19,200 L/h/m² at 1% fall.

Compressive strength

150 t/m².

Height

50 mm.

Length

550 mm.

Width

550 mm.

CompressiveStrength

150 t/m².

Sustainability data

Country of product manufacture

Australia

Literature

50mm HexCell Drainage Cell Product Brochure

50mm HexCell Drainage Cell Product Brochure

50mm HexCell Drainage Cell Technical Data Sheet

50mm HexCell Drainage Cell Technical Data Sheet
