Ausdrain 30mm Walldrain (1100 mm)
Verified by manufacturer over a year ago
Is a rigid, high compressive strength drainage cell product that is perfect for basement and retaining wall applications.
Application
Suitable for basement and retaining wall applications.
Description
Ausdrain Walldrain panels create a structural void between the wall and the back-fill protecting the waterproof membrane and providing incredible drainage efficiency. The high flow rate of the panels and convenient pre-wrapping make this product an ideal solution for larger, vertical drainage installations. This makes installation easy as there is little cutting required and also avoids unnecessary wastage as exact quantities can be ordered for each job.
General information
Uniclass | |
SpecPack | 07130 Waterproofing and Tanking |
NATSPEC National Classification System | 0411 Waterproofing – External and Tanking |
SpeedSpec | 07130 Waterproofing and Tanking |
Specification data - Polypropylene geocell boards
Material | Reprolene™.Guidance for specification option: Recycled Polypropylene. |
Recycled content (minimum) | 100%. |
Flow rate | 14,400 L/h/sqm at 1% fall. |
Compressive strength | 80 t/m². |
Height | 30 mm. |
Length | 1100 mm. |
Width | 550 mm. |
Sustainability data
Country of product manufacture | Australia |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 95 % |
Literature

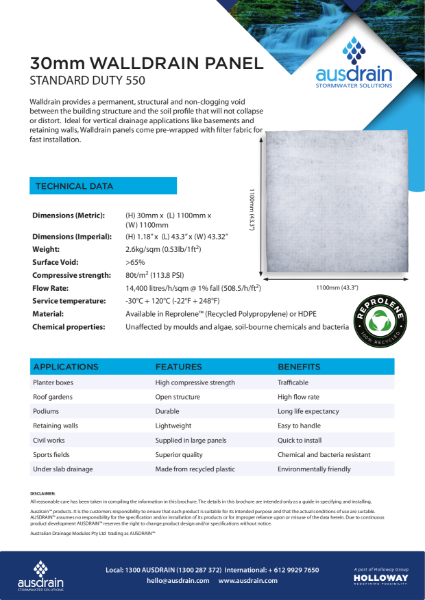

Walldrain 1100mm Technical Data Sheet
