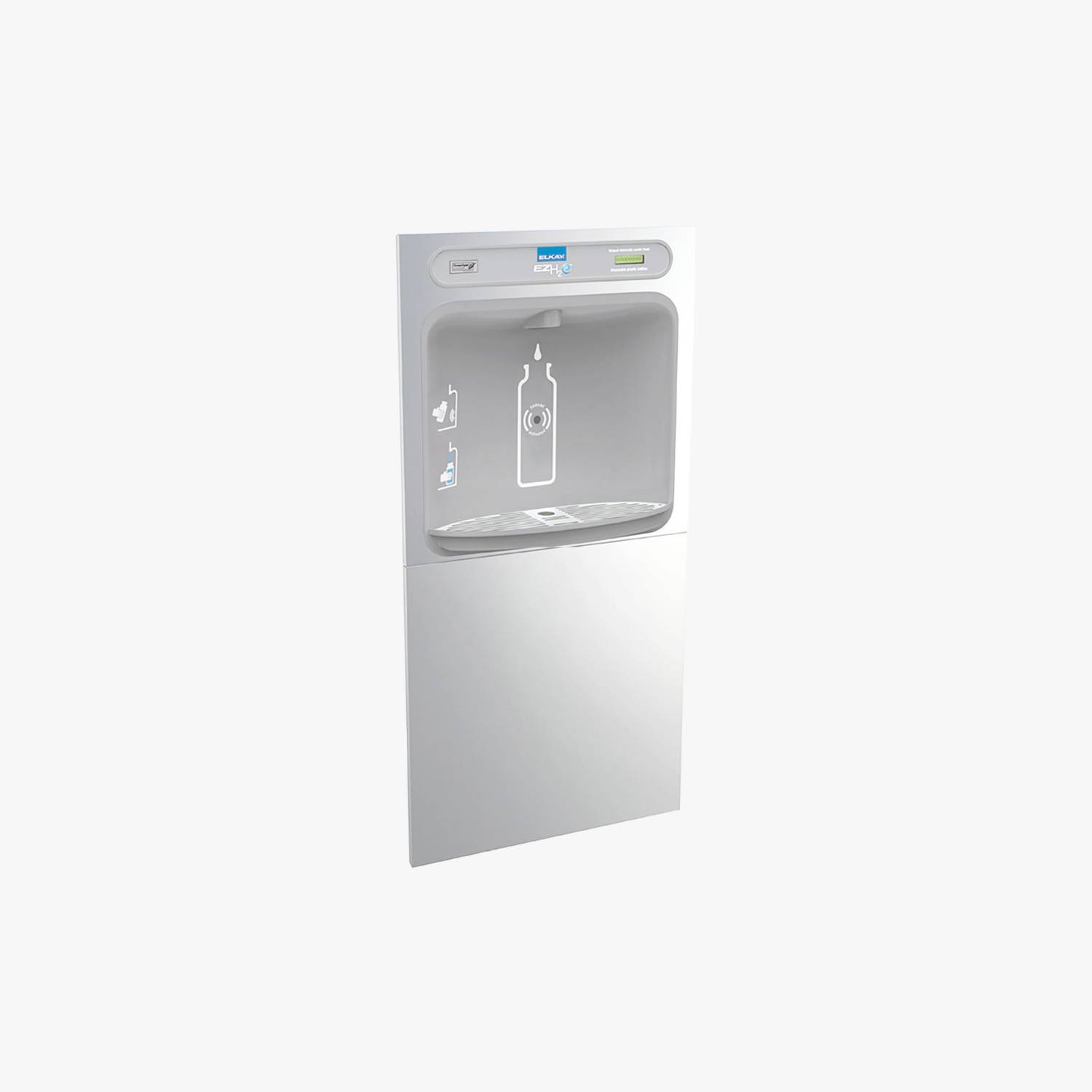

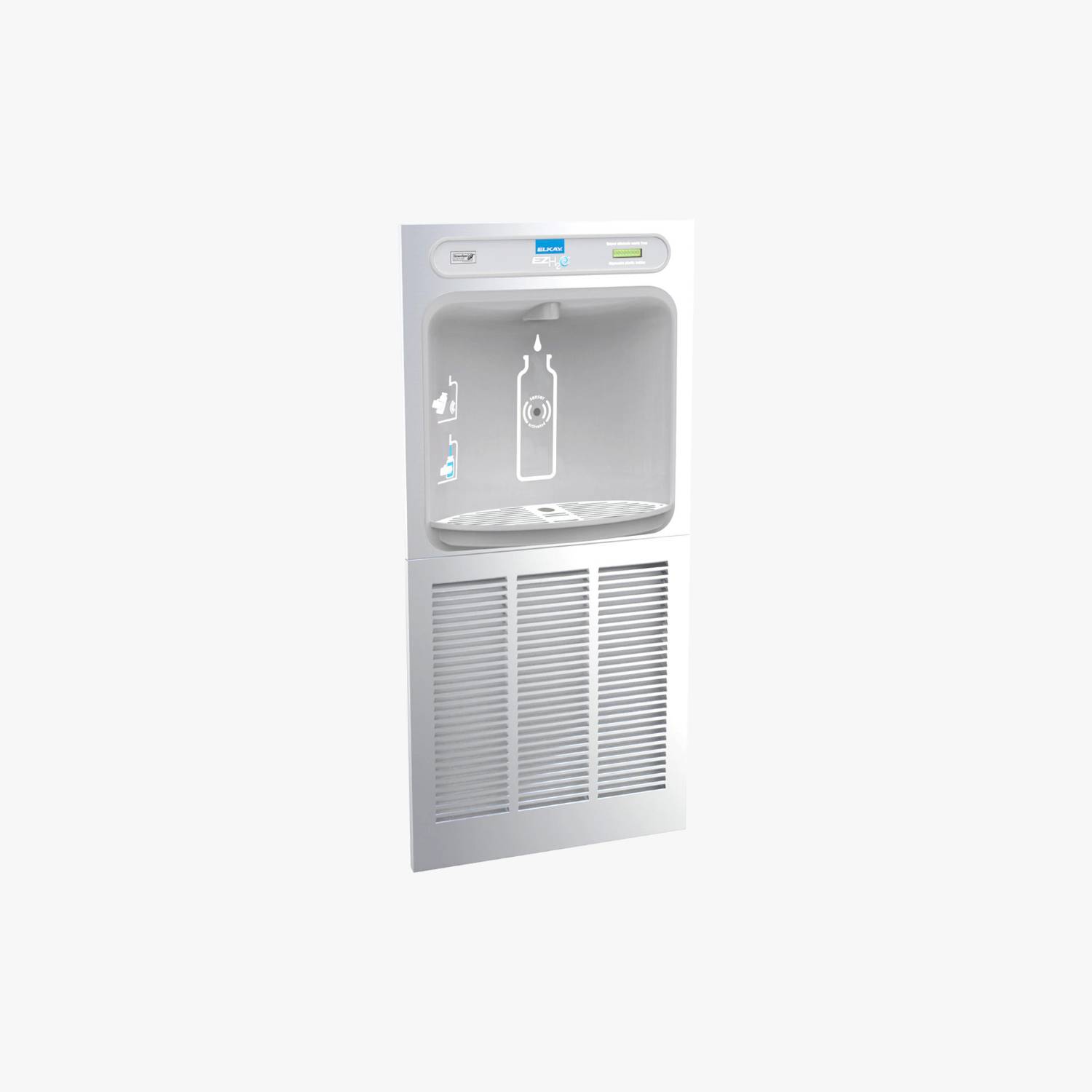

Elkay® EZH2O® Auto-Sensor In-Wall Bottle Filling Station
Verified by manufacturer over a year ago
Non-Refrigerated (LZWSMDJOK)
Non-Refrigerated (LZWSMDJOK)
Recess mount, sensor-activated bottle filling station.
Application
Suitable for indoor public environments.
Description
Elkay® EZH2O® Auto-Sensor In-Wall Bottle Filling Station is a slimline, fully recessed stainless steel water station with a hands-free, auto-sensor operation. Some of its features include:
- Anti-microbial bottle refill nozzle with quick fill rate.
- Touchless, sensor activation.
- Disability-friendly design.
- Filtered water supply.
- Drainage system for prevention of stagnant water build-up.
- Green Ticker that counts the number of bottles saved from waste.
- WaterMark™ certified.
- Available in refrigerated and non-refrigerated units.
General information
Material | Stainless steel. |
Size | 502 x 89 x 1037 mm. |
Warranty description | Five years. Manufacturer guidanceRefer to Elkay® Product Warranty for full terms and conditions. |
Uniclass | |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
NATSPEC National Classification System | 0815 Drinking Water Dispensers |
SpecPack | 10340 External Urban Items |
Specification data - Water coolers
Standards | To AS/NZS 4020. |
Certification | WaterMark™. |
Dimensions | 502 x 89 x 1037 mm. |
Material and finish | Stainless steel. |
Activation | Automatic. Guidance for specification option: With 20-second shut off. |
Water supply | Non-refrigerated. |
Filter | 1 micron. 5 micron. |
Power | 220 V a.c., 50 Hz. |
Installation | Recessed (in-wall). |
Installation depth (minimum) | 203 mm. Manufacturer guidanceRefers to in-wall depth. |
Accessible design | To AS 1428.2. |
Sustainability data
Country of product manufacture | United States |
Literature
Elkay® EZH2O® Auto-Sensor In-Wall Bottle Filling Station (Non-Refrigerated)

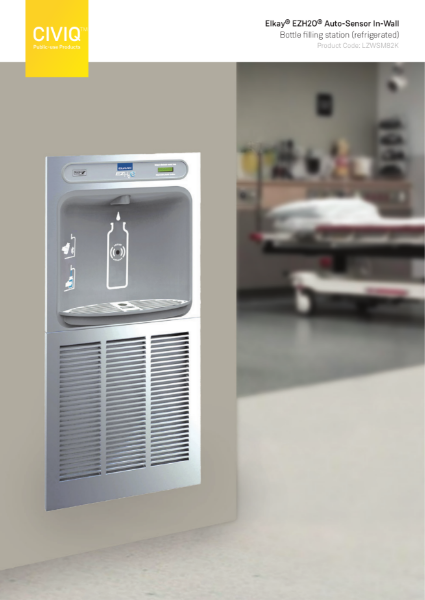

Elkay® EZH2O® Auto-Sensor In-Wall Bottle Filling Station (Refrigerated)
Civiq Filters
Elkay® Product Warranty
