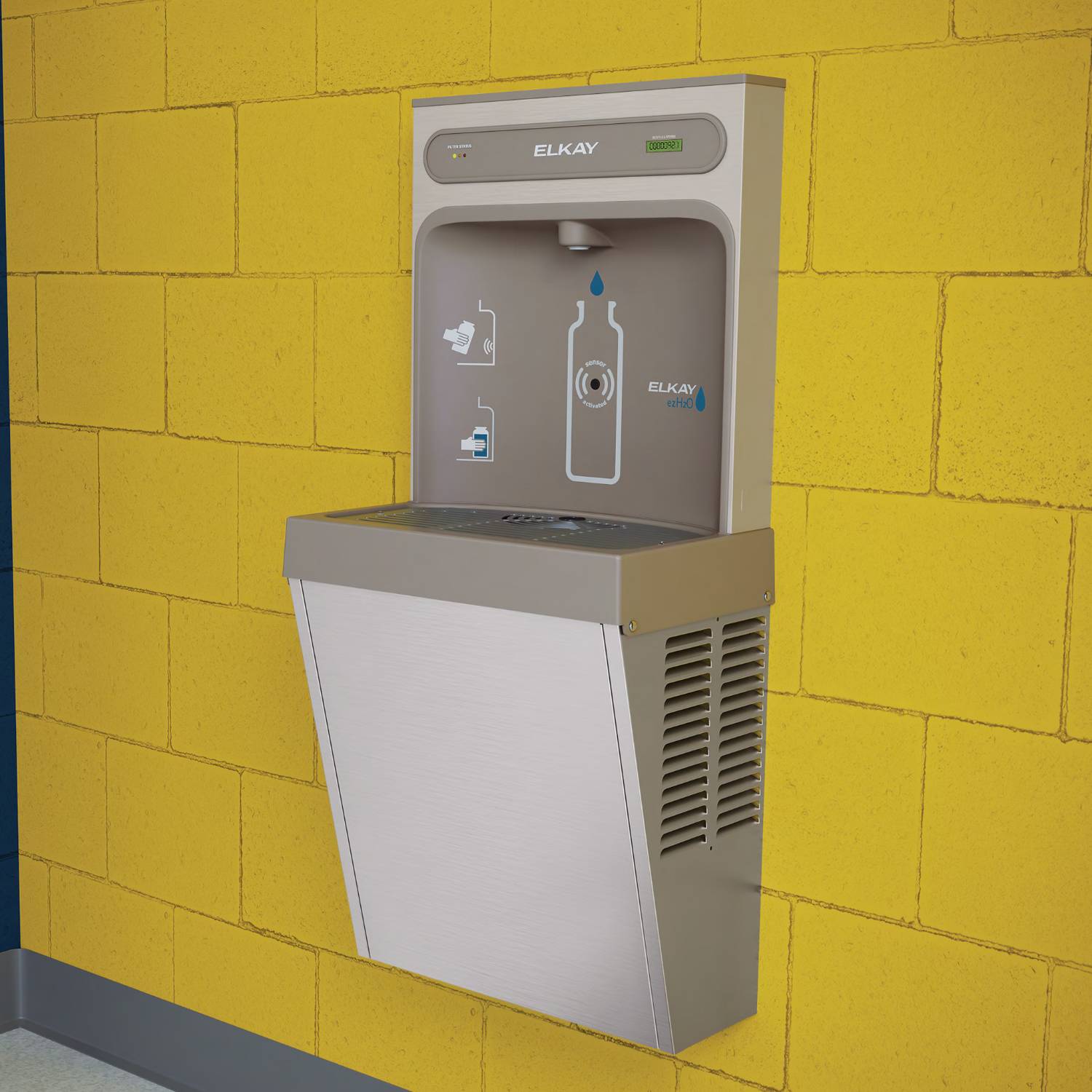

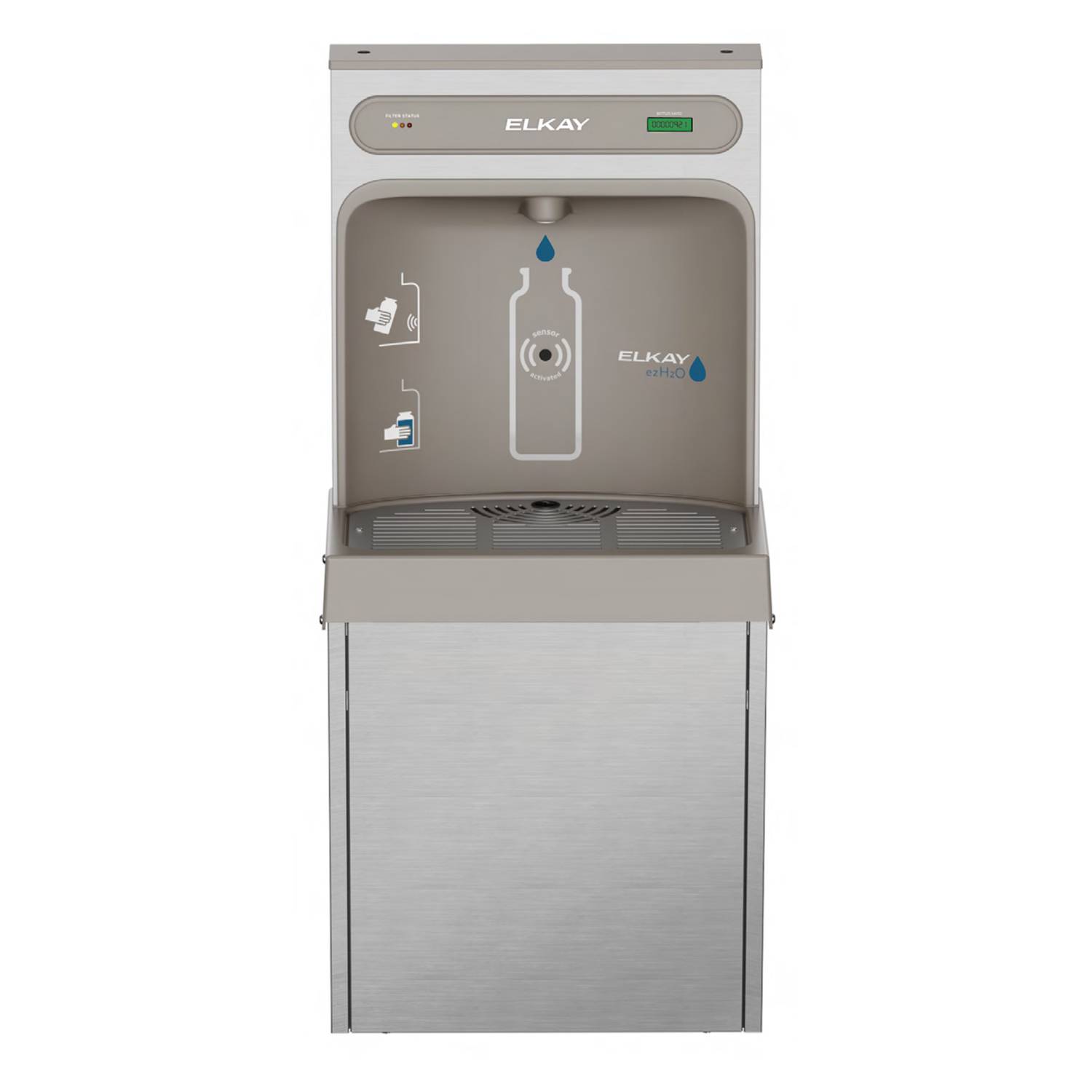

Elkay® EZH2O® Surface Mount Bottle Filling Station (Refrigerated)

Verified by manufacturer over a year ago

Civiq

Surface mount, sensor-activated bottle filling station.

Jump to:
1300 600 300 Website

Application

Suitable for indoor public environments.

Description

Elkay® EZH2O® Surface Mount Bottle Filling Station is a compact, surface mount stainless steel water station with a hands-free, auto-sensor operation. Some of its features include:

  • Refrigerated filtered water.
  • Touchless, sensor activation.
  • Quick fill rate.
  • Disability-friendly design.
  • WaterSentry Plus filtration with visual LED filter replacement monitor.
  • Green Ticker that counts the number of bottles saved from waste.
  • Compatible with Aquafil Remote Chiller Unit.
  • WaterMark™ certified.

General information

Material

Stainless steel.

Size

454.2 x 307.8 x 1047.8 mm.

Warranty description

Five years.

Manufacturer guidance

Refer to Elkay® Product Warranty for full terms and conditions.

Uniclass

Pr_40_70_15_96 Water coolersPrimary

SpeedSpec

05580 Architectural Metalwork and Whitegoods

SpecPack

10340 External Urban Items

NATSPEC National Classification System

0815 Drinking Water Dispensers

Specification data - Water coolers

Standards

To AS/NZS 4020.

Certification

WaterMark™.

Dimensions

454.2 x 307.8 x 1047.8 mm.

Material and finish

Stainless steel.

Activation

Automatic.

Guidance for specification option:

With 20-second shut off.

Water supply

Refrigerated.

Flow rate (maximum)

25 L/h.

Manufacturer guidance

Refers to chilled fill rate.

Filter

Filtered.

Guidance for specification option:

As standard.

Manufacturer guidance

A suitable filter shall be recommended based on installation location. Contact manufacturer for details.

Power

220 V a.c., 50 Hz.

Installation

Surface-mounted (on wall).

Accessible design

To AS 1428.2.

Sustainability data

Country of product manufacture

United States

Literature

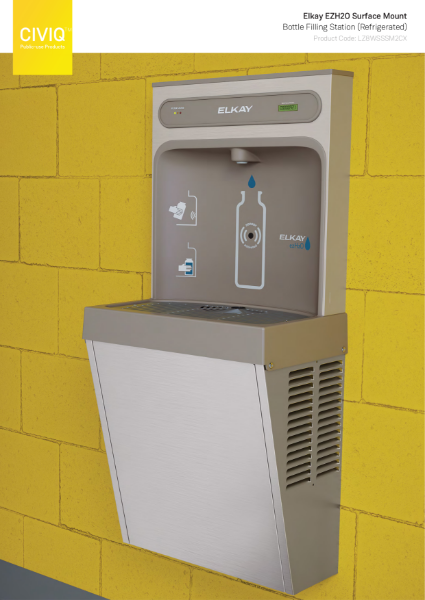

Elkay® EZH2O® Surface Mount Bottle Filling Station

Elkay® EZH2O® Surface Mount Bottle Filling Station

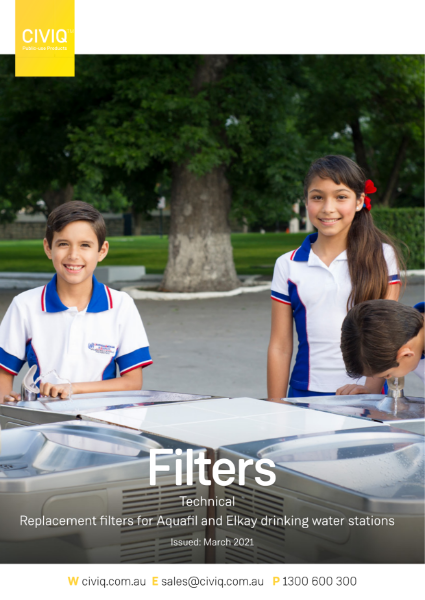

Civiq Filters

Civiq Filters

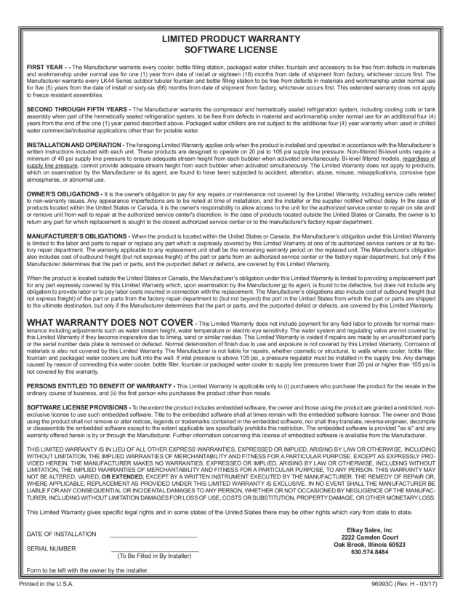

Elkay® Product Warranty

Elkay® Product Warranty

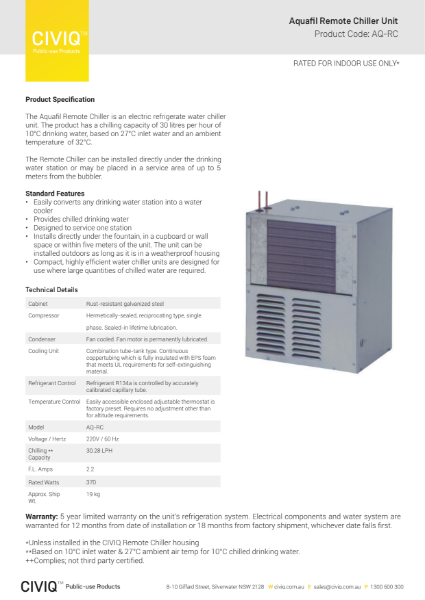

Aquafil Remote Chiller Unit Specification

Aquafil Remote Chiller Unit Specification

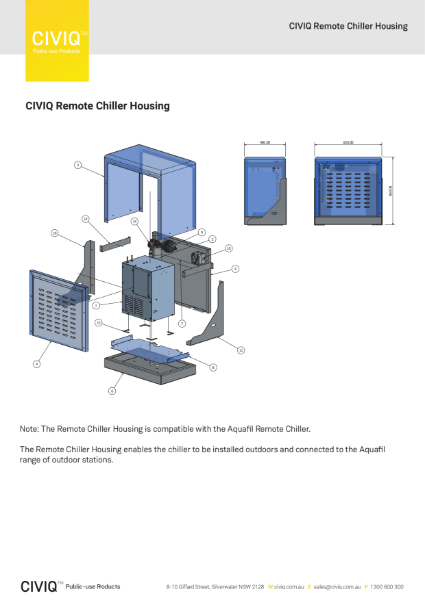

Civiq Aquafil Remote Chiller Housing

Civiq Aquafil Remote Chiller Housing
