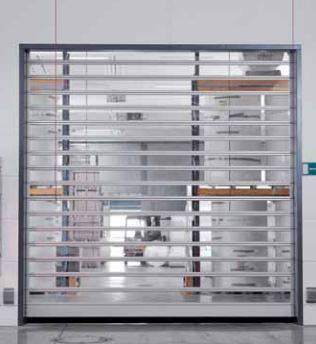

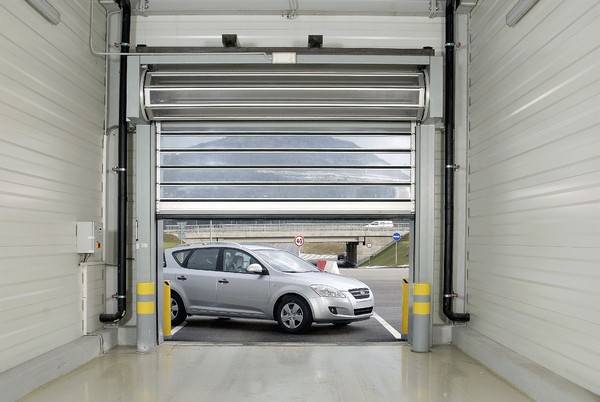

Efaflex High speed spiral transparent door STT

Verified by manufacturer over a year ago

EFA-STT® L

DMF International Pty Ltd Variant:

Frictionless retraction, high-speed, extremely fast vertically opening door and the laths remain undamaged.

Jump to:
+ (61 2) 9636 5466 Website

Application

Suitable for extreme use for interior and exterior doors.

Description

The EFA-STT® transparent laths provides a clear view to the other side for many years to come, the door blade is held apart in the spiral mechanism. Frictionless retraction, high-speed, extremely fast vertically opening door and the laths remain undamaged.

The EFA-STT® ensures a constantly bright appearance even in tough working conditions, with maximum speeds of up to 3.0 m/s.


General information

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

SpecPack

08330 Roller Shutter Doors

NATSPEC National Classification System

0454 Overhead Doors

SpeedSpec

08330 Roller Shutter Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

2.5 m/s.

Closing

0.75 m/s.

1.0 m/s.

Guidance for specification option:

With EFA-TLG® door light-line grid.

Format

Roll up.

Size

-

Manufacturer guidance

Custom manufactured to size. Available in maximum dimensions of 4000 mm (width) x 5000 mm (height).

Curtain material

Single acrylic glass.

Clear polycarbonate.

Frame and guides

-

Material

Galvanized sheet steel frame.

Guidance for specification option:

 Standard.

Stainless steel.

Guidance for specification option:

Upon request, consult manufacturer for details.

Powder coated steel.

Guidance for specification option:

Upon request, consult manufacturer for details.

Finish and colour

Guidance for specification option:

RAL colour for powder coated steel, consult manufacturer for details.

Operation

Automatic.

Category of use

Interior door.

Guidance for specification option:

Standard.

Lock-up doors.

Guidance for specification option:

Standard.

Maximum wind loading

Class 3 - 4.

Manufacturer guidance

To DIN EN 12424.

Operating forces

To DIN EN 13241-1.

Water resistance

Class 0.

Manufacturer guidance

Resistance against water ingress.

To DIN EN 13241-1.

Air permeability

Class 2.

Manufacturer guidance

To DIN EN 13241-1.

Sound insulation

20 dB.

Manufacturer guidance

To DIN EN 717-1.

Thermal transmittance (U-Value)

6.50 W/m²K.

Manufacturer guidance

 To DIN EN 13241-1.

Speed

3.0 m/s.

Manufacturer guidance

Maximum door blade speed.

Type

Round spiral.

Guidance for specification option:

Standard.

Manufacturer guidance

Door blade guidance.

Blade

EFA-CLEAR® single-walled/anodized.

Guidance for specification option:

Standard.

Ventilation laths.

Guidance for specification option:

Upon request, consult manufacturer for details.

Vision panel single-walled.

Guidance for specification option:

Standard.

Non-transparent infill, single-walled.

Guidance for specification option:

Upon request, consult manufacturer for details.

Colour

Colour according to RAL (without window panel).

Guidance for specification option:

Upon request, consult manufacturer for details.

Fire classification

Class B2.

Guidance for specification option:

To DIN 4102.

Actuation/ Safety systems

Spring.

Cycles

200 000 operating cycles per year.

Control system

EFA-TRONIC®.

Guidance for specification option:

Standard.

Frequency converter.

Guidance for specification option:

Standard.

EFA-TRONIC® PROFESSIONAL.

Guidance for specification option:

Upon request, consult manufacturer for details.

Main switch and foil keypad.

Guidance for specification option:

Standard.

Manufacturer guidance

Electricity connection 230 V/50 Hz.

Drive

Electric motor with frequency converter.

Guidance for specification option:

Standard.

Emergency release

Automatic after manual activation.

Guidance for specification option:

Standard.

Safety devices

EFA-TLG® door light-line grid in door closing line.

Guidance for specification option:

Upon request, consult manufacturer for details.

Contact edge.

Guidance for specification option:

Standard.

Light barrier.

Guidance for specification option:

Upon request, consult manufacturer for details.

Approach area monitoring.

Guidance for specification option:

Upon request, consult manufacturer for details.

Sustainability data

Country of material origin

Germany

Country of product manufacture

Germany
