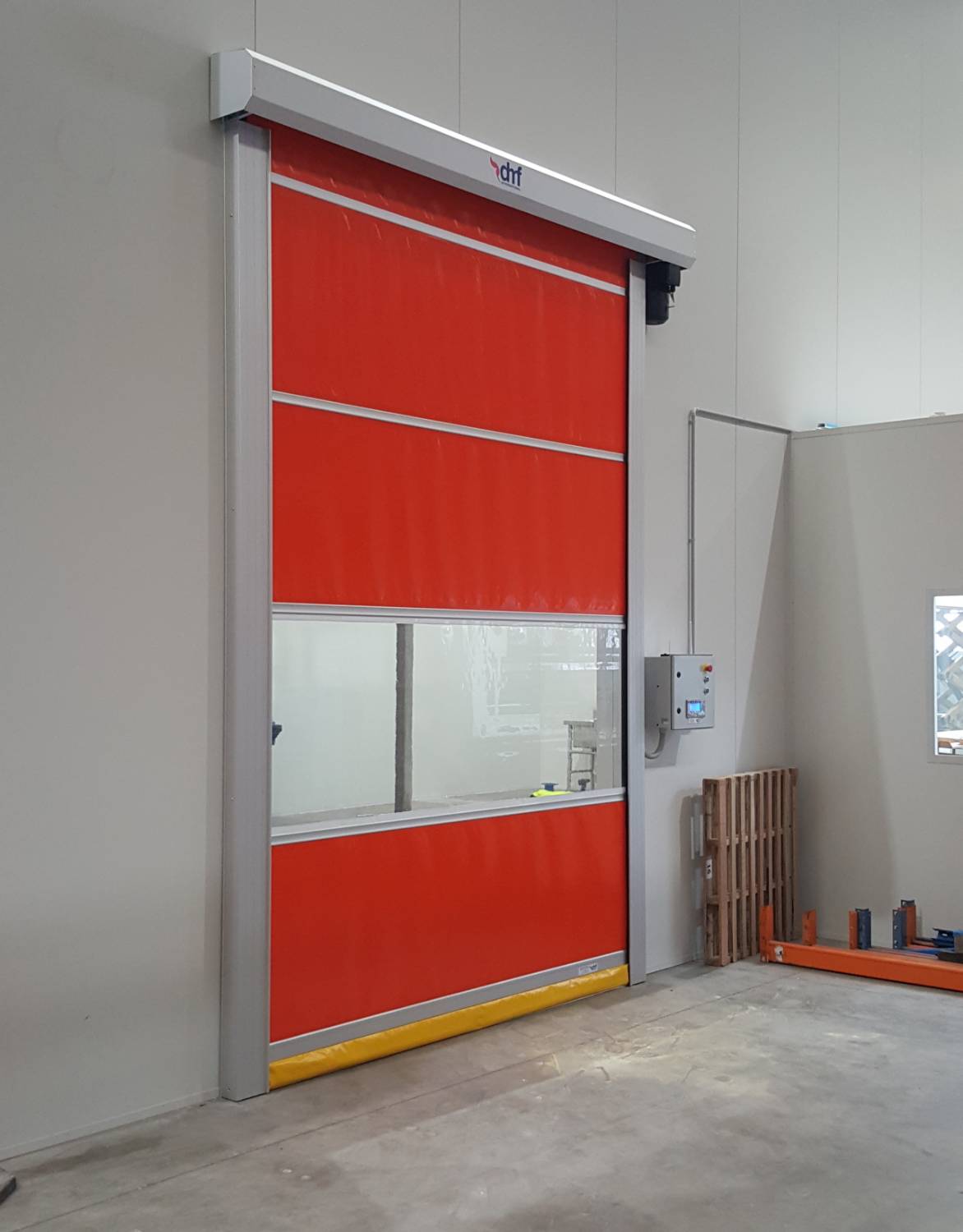

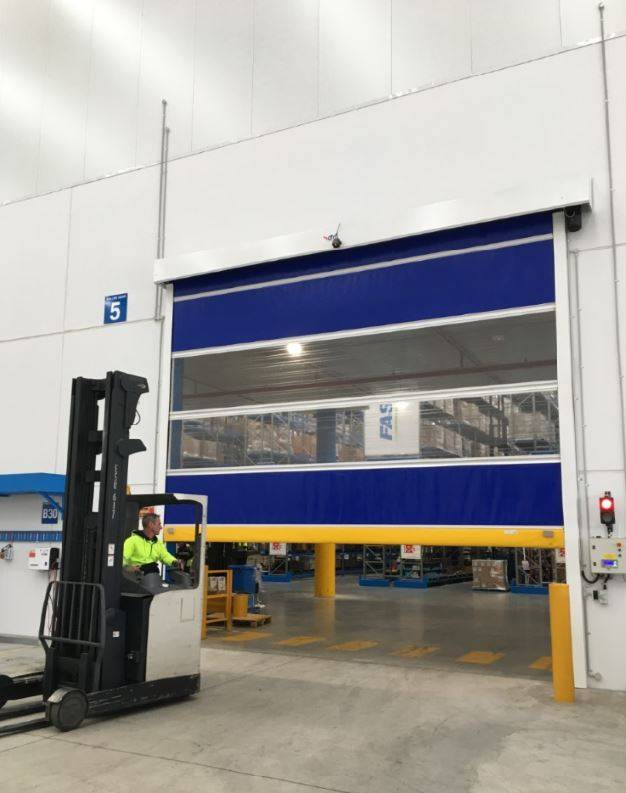

Rapid Roll Door Series RL3000

Verified by manufacturer over a year ago

DMF International Pty Ltd

High speed PVC roll door, custom made to size with aluminium columns and flexible PVC door blade.

Jump to:
+ (61 2) 9636 5466 Website

Application

Series RL3000 Rapid Auto Roll Door is a reliable and durable door, yet providing a simplicity that allows non specialist installation.

Rapid Roll Door is ideal application for:

  • Warehouses.
  • Process rooms.
  • Cool rooms.
  • Clean rooms.
  • Workshops.
  • Hospitals.
  • Supermarkets.

Description

Series RL3000 door, is a high speed roll door constructed from modular proprietary interlocking aluminium extrusions, with a surface clear anodized, or option of selected powder coating colour.

All interlocking sections, both vertical and horizontal shall incorporate an integrated brush seal, providing optimum sealing of the door panel. Some of its significant features include:

  • Door speeds up to 1.5 m/s.
  • Durable reinforced PVC panel available in 0.5 mm, 1.0 mm and 1.75 mm.
  • Windbars to resist air pressure.


Available in various forms of activation:

  • Pushbuttons.
  • Pullcords.
  • Motion sensors.
  • Induction floor loops.
  • Remote control.
  • Photo eye beams.
  • Swipe cards and integration.

General information

Color

Blue

Black

Brown

Green

Orange

Show more

Finish

Anodized

Guidance for specification option:

For door frame and flexible PVC door blade. Option of powdercoated finish.

Manufacturer guidance

Clear.

Material

Aluminium

Size

-

Manufacturer guidance

Custom manufactured to size.

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

SpecPack

08330 Roller Shutter Doors

NATSPEC National Classification System

0454 Overhead Doors

SpeedSpec

08330 Roller Shutter Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

1.5 m/s.

Closing

0.7 m/s.

Format

Roll up.

Size

-

Manufacturer guidance

Available in maximum dimensions of 7000 mm (width) x 6000 mm (height).

Consult manufacturer for customized sizings.

Arrangement

Face-fitted across opening.

Curtain material

PVC.

Guidance for specification option:

Manufactured from a minimum 900 gsm polyester-reinforced, fire retardant PVC coated with UV absorbers.

Frame and guides

-

Material

Aluminium.

Guidance for specification option:

Door frame.

Manufacturer guidance

Option for stainless steel.

Finish and colour

Clear anodised.

Powder-coated.

Guidance for specification option:

To standard Dulux colours.

Consult manufacturer for details.

Operation

Programmable single phase HMI PLC invertor controller system.

Guidance for specification option:

With variable speed control, soft start /soft stop facilities and variable hold open timer.

Integral accessories

Control box.

UPS battery backup.

Panel

-

Manufacturer guidance

Available in 12 selected colours and includes a full width clear PVC safety vision screen, integrated with welded kader for insertion to proprietary extruded aluminium windbars. Contact manufacturer for details.

Panel Thickness

0.5 mm.

1.0 mm.

1.75 mm.

Manufacturer guidance

Reinforced PVC panel.

Safety features

In-line PE beam.

Pressure sensitive bottom rail.

Activation and controls

Pushbuttons.

Pullcords.

Motion sensors.

Induction floor loops.

Remote control.

Show more

Power supply

240 volt single phase outlet.

Guidance for specification option:

Rated at 10-20 amps with RCD Type 4 on the circuit.

Sustainability data

Country of product manufacture

Australia
