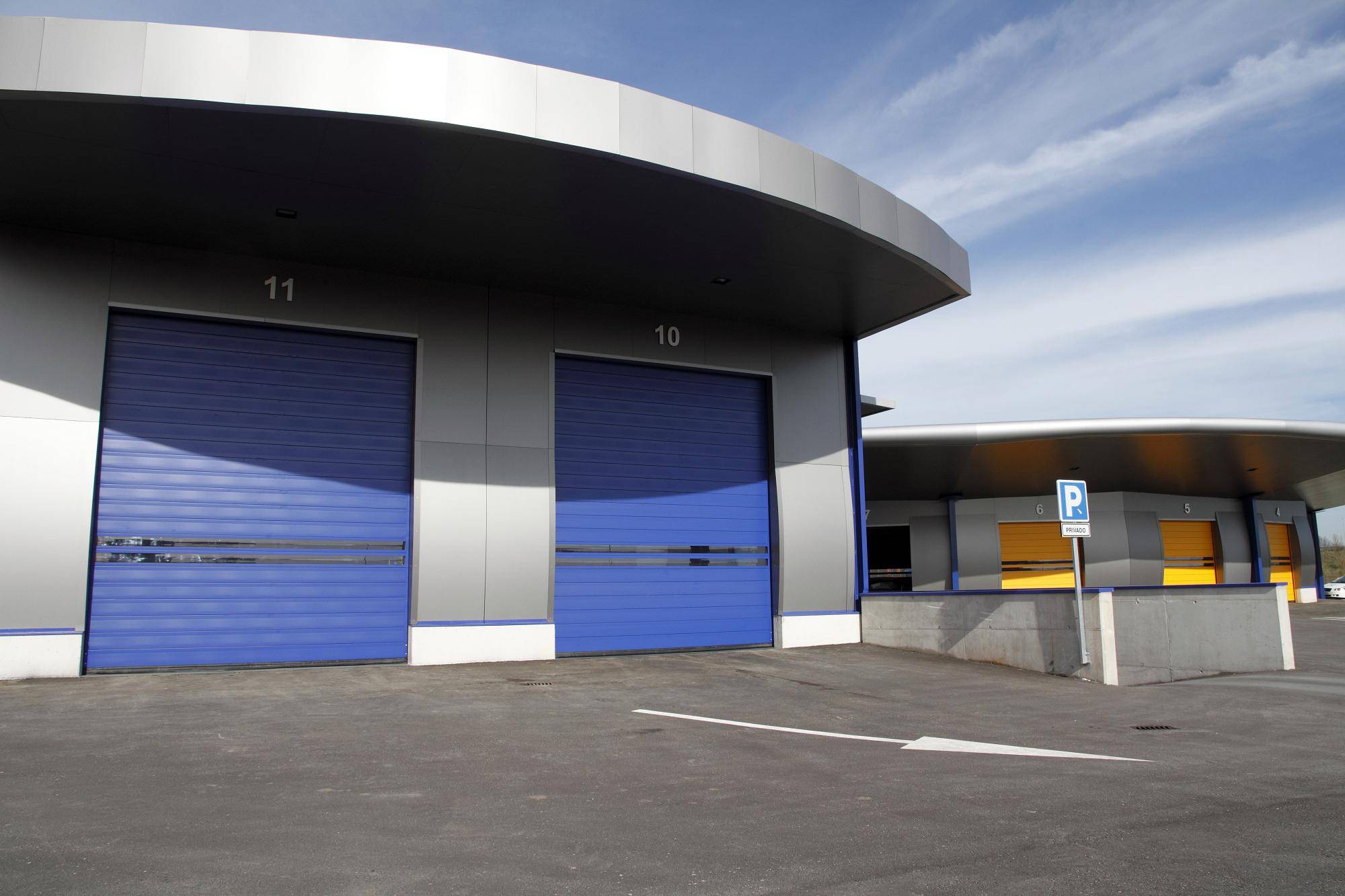

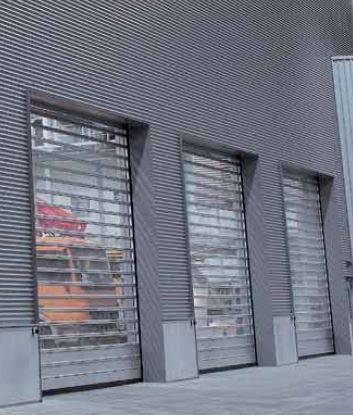

Efaflex High speed spiral security door SST - Premium - SST High Speed Spiral Security Door.
Verified by manufacturer over a year ago
PREMIUM L
PREMIUM L
The premium door offers security and installation. Various different designs, with the circular spiral being the standard solution, fastest vertically opening/closing times.
Application
Suitable for long-term industrial use for interior and lock-up door.
Description
Efaflex High speed spiral security door SST - Premium is designed for long-term industrial use, this model easily copes with circa 250,000 operating cycles per year, with opening speeds up to 2.5 m/s and specification that also includes a secure lock and the TÜV [German Technical Inspection Association] tested EFA-TLG® safety system as standard.
High-Speed Spiral Doors of various different designs, with the circular spiral being the standard solution, boasting the fastest opening/closing times. For limited space above the door, with minimal maintenance requirements and long service life.
The EFA-SST® generation fulls highest expectations even under heaviest continuous operation. The EFA-SST® is extremely stable and weatherproof. It boasts outstanding heat and noise insulation, and surpassing wind resistance. Some of its significant features include:
- EFAFLEX S Series run quietly and with out wear.
- Unrivalled noise and heat insulation.
- Fitted with EFA-THERM® laths as standard.
- Class 2 – 4 wind resistance.
General information
Uniclass | |
SpecPack | 08330 Roller Shutter Doors |
NATSPEC National Classification System | 0454 Overhead Doors |
SpeedSpec | 08330 Roller Shutter Doors |
Specification data - High-speed doorsets
Speed (minimum) | |
Opening | 2.0 m/s. |
Closing | 1.0 m/s.Guidance for specification option: With EFA-TLG® door light-line grid. |
Format | Roll up. |
Size | Manufacturer guidanceCustom manufactured to size. Available in maximum dimensions of 4500 mm (width) x 5000 mm (height). |
Curtain material | Anodized (E6EV1) aluminium.Guidance for specification option: Manufactured from special double walled smooth profiles, with no protruding edges or screws. |
Frame and guides | |
Material | Galvanized sheet steel frame.Guidance for specification option: Standard. Stainless steel.Guidance for specification option: Upon request. Powder coated steel.Guidance for specification option: Upon request. |
Finish and colour | Guidance for specification option: RAL colour for powder coated steel, consult manufacturer for details. |
Operation | Automatic. |
Category of use | Interior door. Guidance for specification option: Standard. Lock-up doors. Guidance for specification option: Standard. |
Maximum wind loading | Class 2 - 4. Manufacturer guidanceTo DIN EN 12424. |
Operating forces | To DIN EN 13241-1. |
Water resistance | Class 3. Manufacturer guidanceResistance against water ingress. To DIN EN 13241-1. |
Air permeability | Class 3. Manufacturer guidanceTo DIN EN 13241-1. |
Sound insulation | 24 dB. Manufacturer guidanceTo DIN EN 717-1. |
Thermal transmittance (U-Value) | 1.52 W/m²K. Manufacturer guidanceTo DIN EN 13241-1. |
Speed | 2.5 m/s. Manufacturer guidanceMaximum door blade speed. |
Type | Round spiral. Guidance for specification option: Standard. Oval spiral. Guidance for specification option: Standard. Manufacturer guidanceDoor blade guidance. |
Blade | EFA-THERM® laths, double walled, insulated/painted. Guidance for specification option: Standard. EFA-ISO-CLEAR double walled, thermally separated/ anodized. Guidance for specification option: Upon request, consult manufacturer for details. EFA-CLEAR® single-walled/anodized. Guidance for specification option: Upon request, consult manufacturer for details. Ventilation laths. Guidance for specification option: Upon request, consult manufacturer for details. |
Colour | Colour according to RAL (without window panel). Guidance for specification option: Upon request, consult manufacturer for details. |
Fire classification | Class B2. Guidance for specification option: To DIN 4102. |
Actuation/ Safety systems | Spring. |
Cycles | 250 000 operating cycles per year. |
Control system | EFA-TRONIC®. Guidance for specification option: Standard. Frequency converter. Guidance for specification option: Standard. EFA-TRONIC® PROFESSIONAL. Guidance for specification option: Upon request, consult manufacturer for details. Main switch and foil keypad. Guidance for specification option: Standard. Manufacturer guidanceElectricity connection 230 V/50 Hz. |
Drive | Electric motor with frequency converter. Guidance for specification option: Standard. |
Emergency release | Automatically after manual activation. Guidance for specification option: Standard. |
Safety devices | EFA-TLG® door light-line grid in door closing line. Guidance for specification option: Standard. Contact edge. Guidance for specification option: Upon request, consult manufacturer for details. Approach area monitoring. Guidance for specification option: Upon request, consult manufacturer for details. |
Literature
Efaflex High speed spiral door brochure
