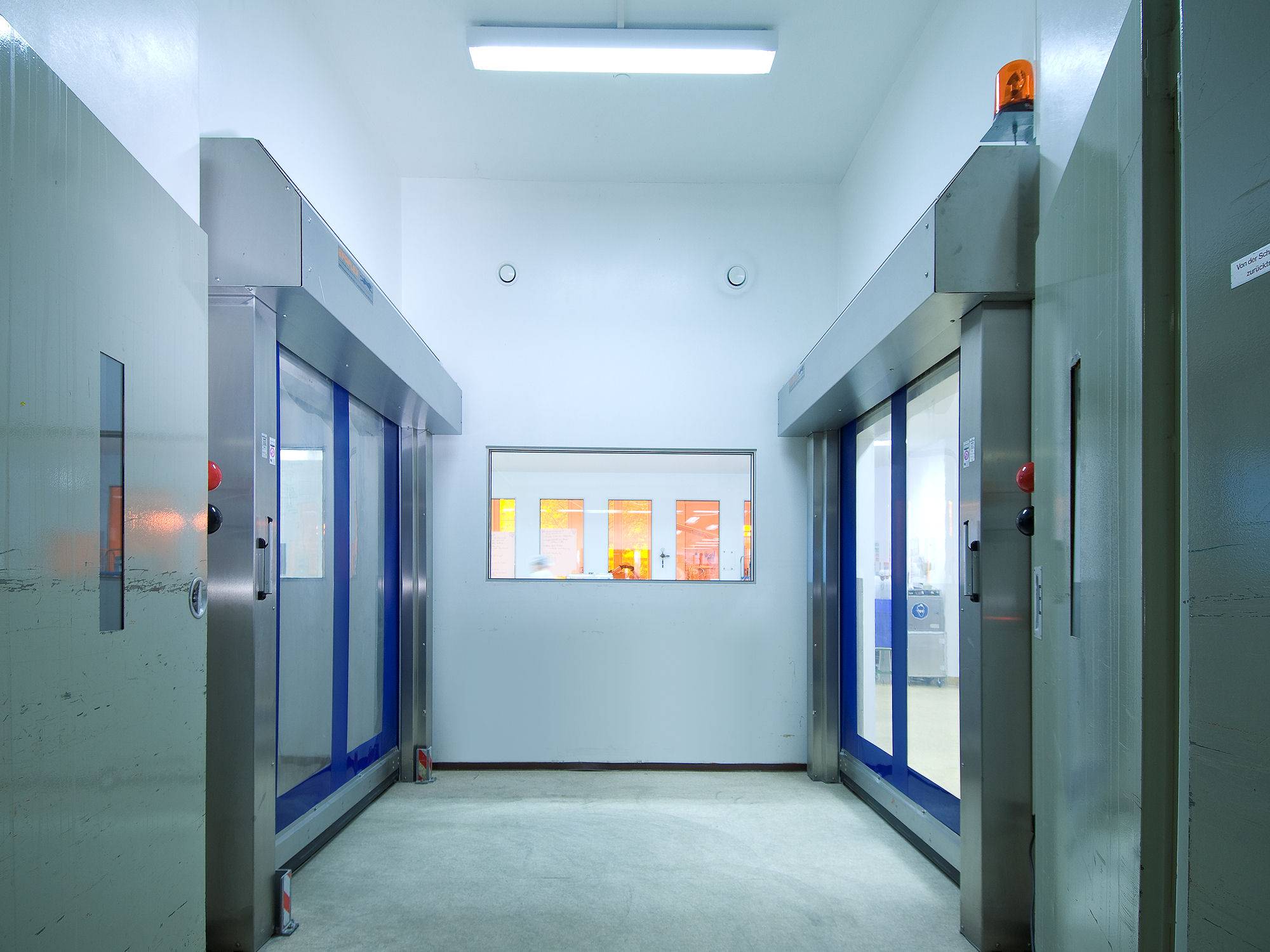

Efaflex High Speed Cleanroom roll door - Clean Room High Speed Roll Door.
Verified by manufacturer over a year ago
EFA-SRT® CR Premium
EFA-SRT® CR Premium
Special doors for clean room applications.
Application
EFAFLEX doors for clean rooms are used in the semi-conductor industry, automotive sector, food industry, medicine and biotechnology, aviation, space travel and with life science products. In addition, EFAFLEX doors can be found in hospitals, for example in sterile areas.
Description
Efaflex High Speed Cleanroom roll door are perfectly suited to the requirements in many controlled environments. They offer near air-tightness of the accesses. These high performances, high speed doors have a smooth surface structure and no protruding edges. They can easily be cleaned and particle deposits are largely excluded.
General information
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
SpecPack | 08330 Roller Shutter Doors |
NATSPEC National Classification System | 0454 Overhead Doors |
SpeedSpec | 08330 Roller Shutter Doors |
Specification data - High-speed doorsets
Format | Roll up. |
Size | Manufacturer guidanceCustom manufactured to size. Available in maximum dimensions of 2500 mm (width) x 3000 mm (height). |
Frame and guides | |
Material | Stainless steel.Guidance for specification option: Standard. |
AirClean | To ISO 14644-1 class 5. |
Category of use | Interior door. Guidance for specification option: Standard. |
Operating forces | To DIN EN 13241-1. |
Leakage | Maximum rate: < 20 m³/h at 30 Pa. |
Speed | Maximum opening speed: 1.5 m/s. Maximum closing speed: 0.5 m/s. Manufacturer guidanceDepending on installation side and door size, consult manufacturer for details. |
Door movement guide | Vertical direction. |
Blade | Flexible fabric in different colours with /without window. Guidance for specification option: Standard. |
Colour | Guidance for specification option: Colour according to RAL (without window panel). Upon request, consult manufacturer for details. |
Fire classification | B2. |
Actuation/ Safety systems | Spring. |
Cycles | 150 000 operating cycles per year. |
Drive | Electric motor with frequency converter. Guidance for specification option: Standard. |
Control system | EFA-TRONIC® (integrated). Guidance for specification option: Standard. Frequency converter. Guidance for specification option: Standard. Main switch and membrane key-pad. Guidance for specification option: Standard. Manufacturer guidancePower supply 230 V/ 50 Hz. |
Emergency release | Automatic after manual activation. Guidance for specification option: Standard. Mechanically released (pull knob / handle). Guidance for specification option: Standard. Electrically triggered via button for brake release. Guidance for specification option: Upon request, consult manufacturer for details. Complete opening via USV (in separate control box). Guidance for specification option: Upon request, consult manufacturer for details. |
Safety devices | EFA-TLG® Door light-line grid at door closing line. Guidance for specification option: Upon request, consult manufacturer for details. Contact edge. Guidance for specification option: Standard. Light barrier. Guidance for specification option: Upon request, consult manufacturer for details. Approach area monitoring. Guidance for specification option: Upon request, consult manufacturer for details. External light grid. Guidance for specification option: Upon request, consult manufacturer for details. |
Power supply | 230 V/ 50 Hz. Guidance for specification option: 16 A(K) electric drive /fuse. |
Literature
Efaflex Cleanroom high speed door brochure
