EasyGate SPA
Verified by manufacturer over a year ago
Eco
Eco
Pay to access speed gate.
Application
- sports facilities.
- Entertainment facilities.
- Leisure facilities
- Attractions
- Paid toilet facilities
Description

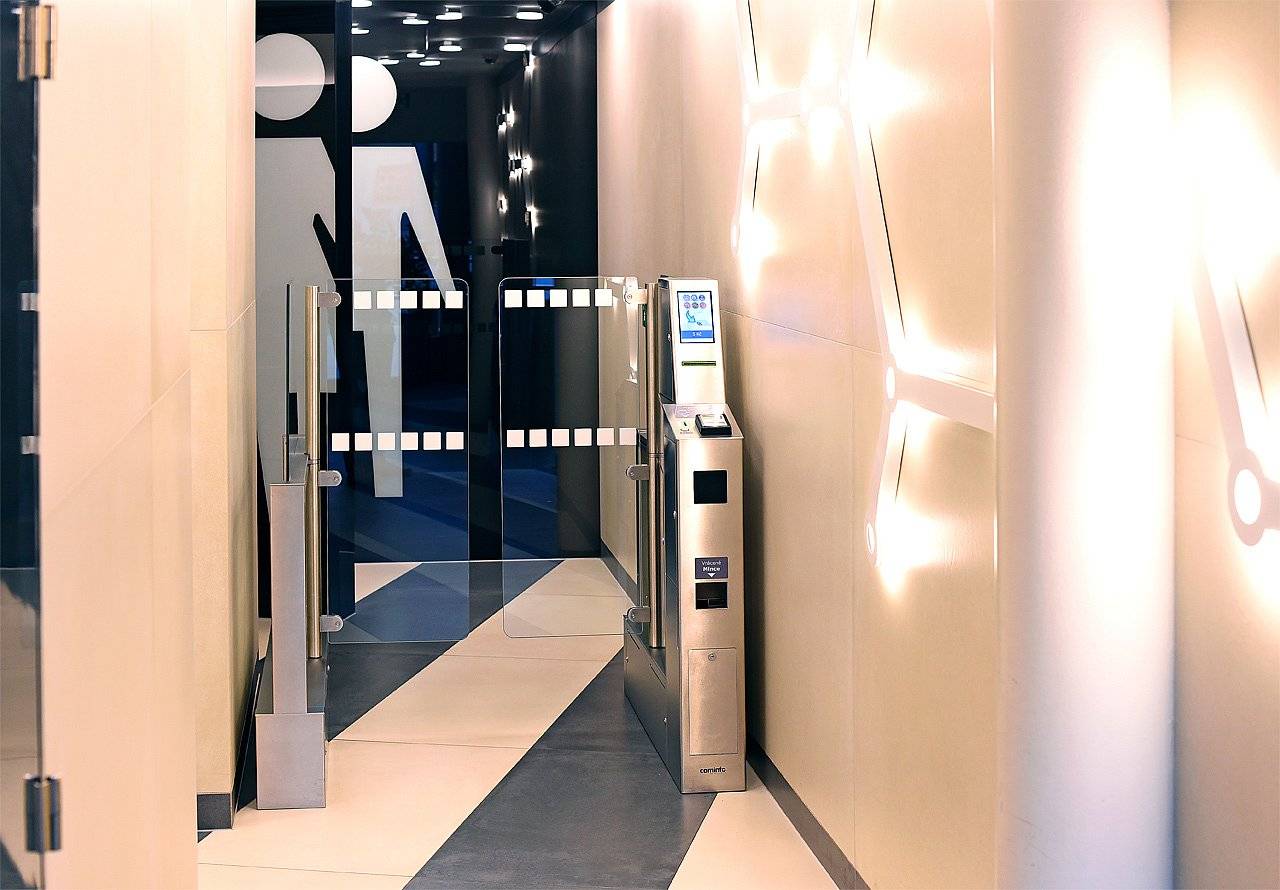

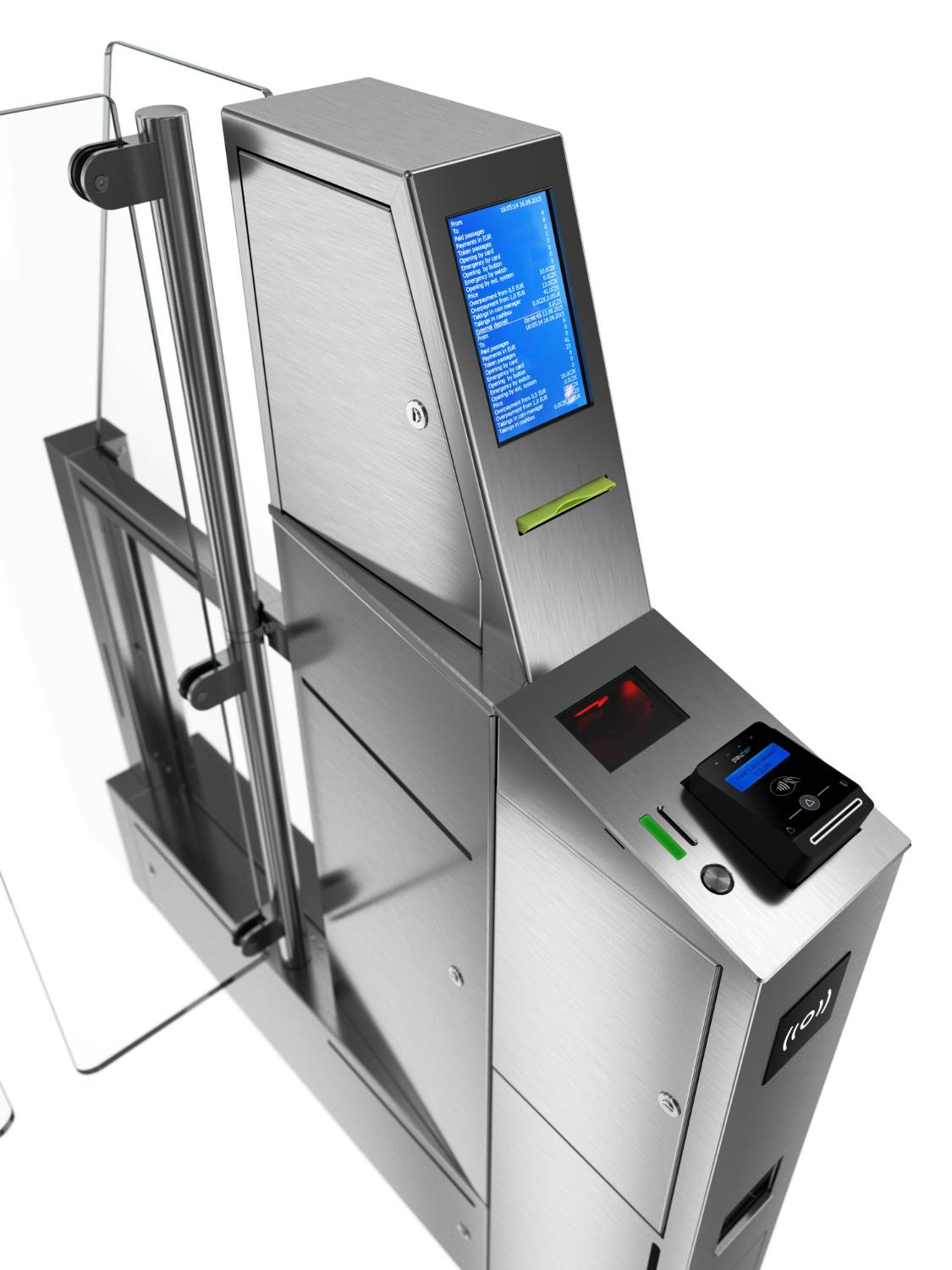

The EasyGate SPA is an innovative "Pay to Access" Speed Gate designed to restrict access to paying visitors. The SPA is an ideal solution for businesses that want to restrict certain areas without implementing a full ticketing system or employing staff to collect payments. The speedgate comes fitted with a coin / token validator as standard and includes options for credit card payment, bar coded vouchers or VIP RFID cards. Another key advantage of the SPA is its high level of security and combined wheelchair / standard access.
General information
Warranty description | Three year |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpecPack | 08200 Doors, Door Frames and Hatches |
Specification data - Glazed gates
Dimensions | |
Span | 1200 mm. |
Height | 1400 mm. |
Depth | 180 mm. |
Posts | |
Material | Stainless steel (304 Brushed). |
Colour | Natural. |
Gate leaves | Toughened Clear Safety Glass.Manufacturer guidanceOptions for adding custom logos on glass barriers. |
Accessible design | No. |
Lane width | 560 mm. |
Operating temperature range | – 20°C to 50°C (with heater) |
Base options | Eco Eco + Premium |
Access control | Coin / token Card in / card out Card in / no exit Card in / free exit Locked free passage |
Security | Fast-acting barriers close behind authorised users to deter tailgating. |
Sensors | 24 IR sensors detect tailgating and unauthorised entry. |
Opening speed | 0.5 seconds |
LED pictograms | Wait Mode (White Indicator). Manufacturer guidanceOptional 3 colour LED indicators on glass barrier. |
MeanTimeBetweenFailure | 5,000,000 operations. |
Operation: | Normally closed. |
Literature

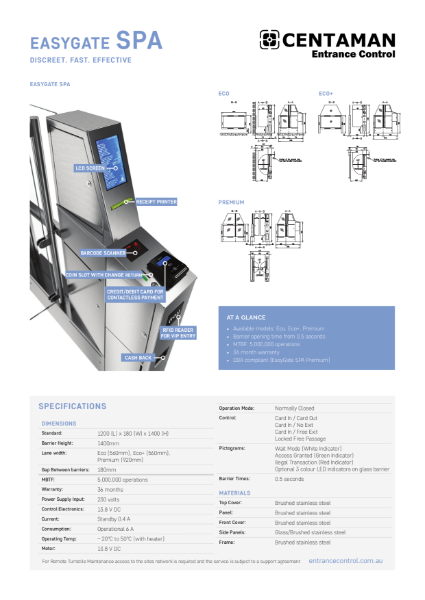

Easygate SPA - Technical Specification.
Easygate SPA - Brochure.
