CW116 Curtain wall
Verified by manufacturer 6 months ago
The Capral CW116 Curtain Wall system has been designed as an economical, four-sided, structurally glazed system that is suitable for small to mid-sized projects.
Application
Residential or commercial building curtain walls.
Description
Tested to the requirements of AS4284, this system is ideally positioned in the market for use in small to mid-sized projects. Reaching up to 10 stories high in standard applications, it may be capable of even greater heights depending on project design and wind load pressures.
A key feature of the CW116 Curtain Wall is the inclusion of tested building and mullion brackets, allowing the CW116 to be installed as a fully tested system without having to independently engineer brackets for each project.
Another key feature is the ability to integrate sun-shading directly into the frame without sacrificing structural or water performance. Coupled with both double and single glazed capabilities this curtain wall is the ideal aluminum glazing system for your next project.
General information
Color | Manufacturer guidanceCan be selected from the standard ranges of finished from Interpon and Dulux. |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Width | 2300 mm |
Height | 4200 mm |
Warranty description | Manufacturer guidanceSupplied by the window fabricator. |
Uniclass | |
NATSPEC National Classification System | 0432 Curtain Walls |
SpecPack | 08900 Glazed Curtain Walls |
SpeedSpec | 08520 Metal Windows and Glazed Doors |
Specification data - Unitized curtain walling systems
System performance | System tested to AS4284: 2008 |
Framing | |
Framing members | Aluminium curtain wall frame sectionsManufacturer guidanceThe maximum allowable stack joint movement in the vertical orientation has been designed at 25mm (+10mm), and the maximum allowable Split Mullion movement in the horizontal direction has been designed at 10mm (+5mm) it is the responsibility of the building designer to ensure that this movement allowance is not exceeded. |
Fasteners | Manufacturer guidanceFixing of the Building Bracket to the building will need to be designed, assessed and verified by a suitably qualified engineer. |
Cladding units | |
Glass units | Single glazedDouble glazedManufacturer guidanceSee product literature for full details |
Panels and facings | |
Thermal insulation | Manufacturer guidanceU value range: 2.7 - 3.8 W/m2K dependent on design build up. |
System accessories | Manufacturer guidanceIndependently engineered fins/louvres/shading devices to be attached to an optional 6mm 5083 Aluminium Bracket Plate 450 x 400mm (length as required). |
Frame dimensions | 116mm x 65mm. Manufacturer guidanceFor detailed mullion information please contact Capral Spec Team. This system is limited to a Panel Height of 4.2m, Panel Width of 2.3m and weight of 190kgs. |
Performance: | Max SLS: 1600pa / ULS: 4500pa / WATER: 600pa Static & 1200pa Cyclic. |
Cyclonic impact testing | No |
Integral accessories | Mullion brackets for external shading. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 8 kg·CO₂e/kg Self declared |
Recyclability | 100 recyclable. Manufacturer guidanceAluminium is fully recyclable. |
Literature

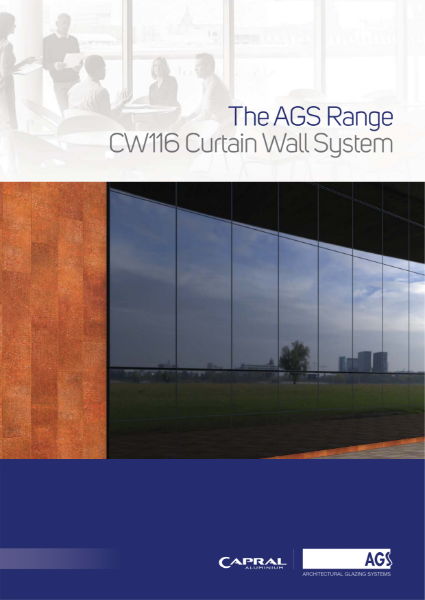

Capral-CW116 Brochure_May2020

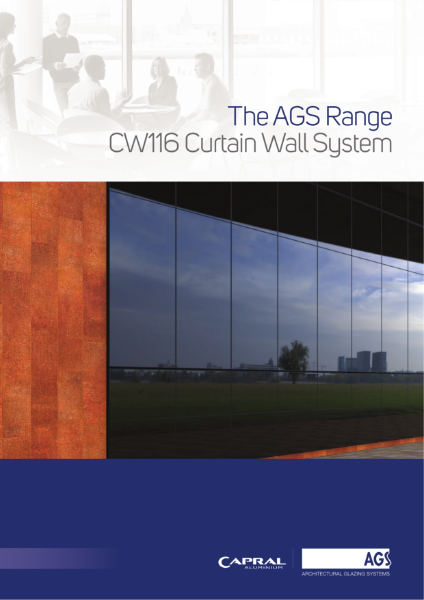

AGS CW116 Technical Data Manual 2107
