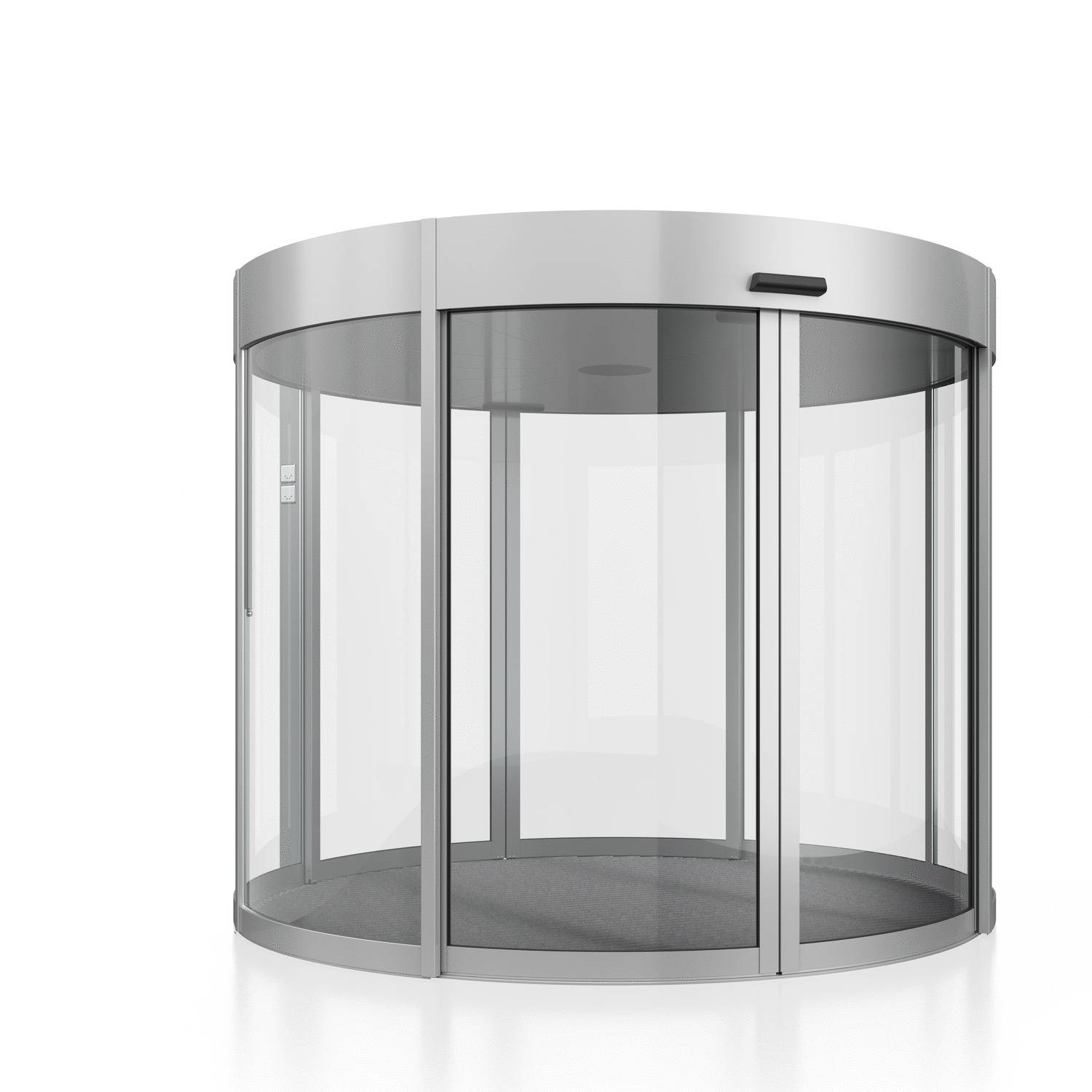

Circleslide - Curved automatic sliding door - Curved automatic sliding door.

Verified by manufacturer over a year ago

Circleslide 1800 diameter

Boon Edam Australia Pty Ltd Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

A curved automatic sliding door which gives a sensation of space to those entering it.

Jump to:
+61426703326 Website

Application

Typical applications include offices, hotels, restaurants and many types of public buildings.

Description

A curved automatic sliding door which gives a sensation of space to those entering it. It is a fully round door with two sets of curved bi-parting sliding doors. The softly arched doorsets offer a wider door opening than normal sliding doors, providing enough space for people with large luggage as well as disabled access.


Features and benefits:

  • The Circleslide is fully transparent and its curved appearance makes it an impressively stylish entrance that will complement any architectural design.
  • It includes two easy to use control panels that are mounted either on the door itself or at an external location such as a reception desk.
  • The Circleslide is available in a wide variety of configurations and each doorset can be programmed and operated individually.
  • Self learning technology ensures that the Circleslide operates smoothly and quietly.


Standard safety features:

  • Emergency push button which can be activated to immediately stop both door sets.
  • Motion and presence sensor to prevent persons or objects being hit by the sliding doors. The sliding door opens automatically if people are in the Circleslide or if obstacles are detected between the doors.
  • Stop and reverse mechanism to ensure that the sliding doors stop or open immediately if the motion and presence sensor encounters an obstacle. The sliding doors then slowly check that their path is free after which they return to their normal speed.


General information

Color

-

Manufacturer guidance

Available in wide range of colour options. To check with the manufacturer.

Finish

Powder-coated

Anodized

Brass

Manufacturer guidance

Can be clad with stainless steel, bronze, brass, other metals or wood; contact manufacturer for more information.

Material

Aluminium

Stainless steel

Brass

Steel

Shape

Circle

Manufacturer guidance

Round.

Length

Bespoke

Width

Bespoke

Warranty description

One year

Manufacturer guidance

12 month standard product warranty. Optional extended warranty available upon request.

Uniclass

Pr_30_59_24_04 Automatic revolving doorsetsPrimary
Pr_30_59_24_80 Sliding door and partition sets

SpeedSpec

08200 Doors and Door Frames

SpecPack

08450 Fully Glazed Entrance Facades

08900 Glazed Curtain Walls

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

Specification data - Automatic revolving doorsets

Standard

To AS 5007.

Configuration

2 x 2 door wings.

Materials and finishes

-

Doors

Steel.

Glass.

Glazing

-

Type

Glass protection sheet

Activation and control system

-

Type

Automatic.

Safety devices

Soft touch reversing.

Threshhold and Side wing.

Emergency escape route.

EM Stop.

Fire alarm connections.

Vandal resistant.

CE basic.

Locking mechanism

Eurocylinder.

Manual locking doorset - Night locking

Security lockdown.

Interlocking mode.

Integral accessories

Voice module.

Air curtains.

Floor mats.

Ceiling lights.

Drive unit (Canopy).

Diameter

1800 mm.

Throat width

1013 mm.

Height

2200 - 2600mm (Under canopy height).

Canopy height

200 - 600 mm.

300 - 1200 mm.

ClearWidth

1877 mm.

Manufacturer guidance

Clear installation width:

Power supply

200-240 VAC, 50/60 Hz.

10 A. (Fuse)

Sustainability data

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Third party certifications

QA Certificate

QA Certificate

Certificate of Approval - ISO 14001:2015

QA Certificate

QA Certificate

Certificate of Approval - ISO 9001:2015

Literature

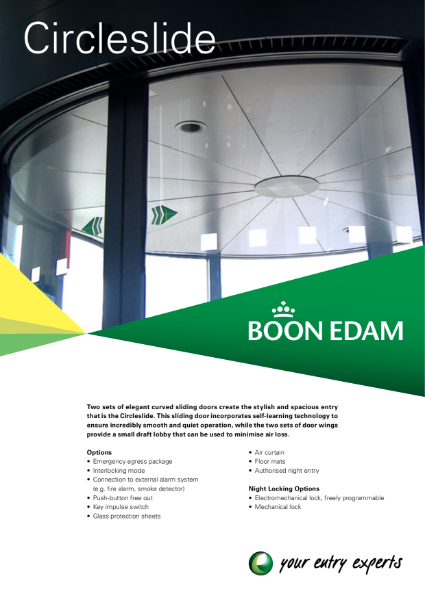

Circleslide - curved sliding doors
