Circlelock Solo
QA Certificate
Certificate type

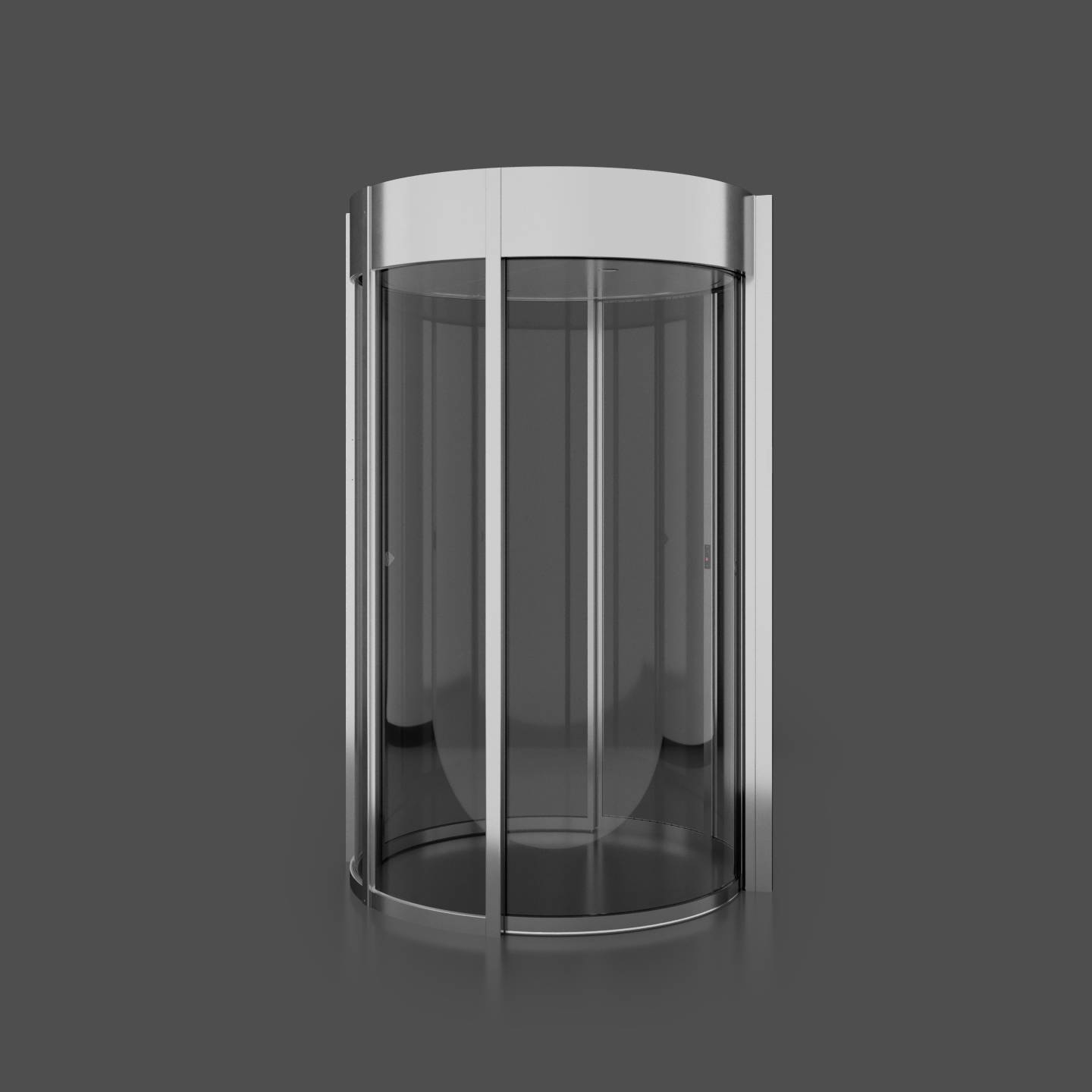

High security portal with two curved glass sliding doors.

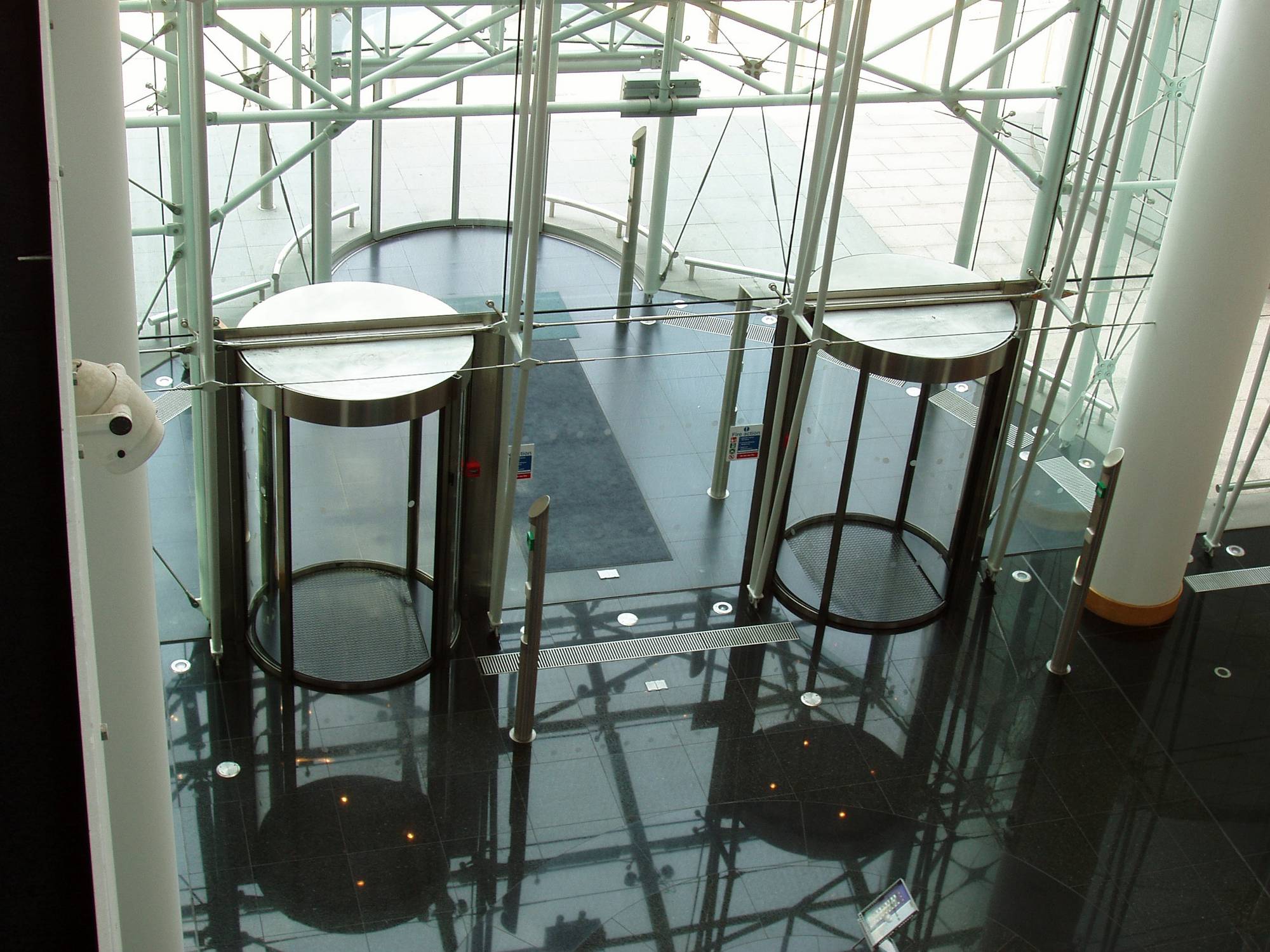

Allowing quick and smooth bi-directional traffic, the Circlelock can be found in areas where a high level of security has to be balanced with ease and speed of operation. Typical applications include IT and server rooms, banks, jewellers, airports and court buildings.
Suitable use to areas such as:
High security portal with two curved glass sliding doors with one of the highest security levels available. The round, cylindrical compartment features two interlocking, automatic sliding doors.
Features and benefits:
Finish | Anodized Powder-coated |
Material | Aluminium Steel |
Shape | Circle |
Width | 1000 mm 1500 mm |
Height | 2200 mm |
WarrantyDescription12 month standard product warranty. Extended warranty available on request. | One year |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpeedSpec | 08200 Doors and Door Frames |
SpecPack | 08900 Glazed Curtain Walls 08450 Fully Glazed Entrance Facades |
Standard | To AS 5007. |
Materials and finishes | - |
Doors | Steel.Glass. |
Glazing | - |
Type | Laminated safety glass (P2A).Burglar-resistant glass P5A / P6B.Bullet-resistant glass BR4NS. |
Canopy | Canopy height at 200 mm. |
Activation and control system | - |
Type | PLC.BoonTouch External Control Panel.Card and tag readers.Card reader mount inside and outside CL for virtually any conventional or touchless access control system. Mobile / bluetooth readers.Facial and iris recognition.Touchless fingerprint and vein readers. |
Safety devices | SRDInterface with most security systems. |
Locking mechanism | Electro-mechanical.Fail safe.Fail secure. |
Integral accessories | Ceiling lighting. |
Operation | Bi-directional, one direction at a time. |
Capacity | 5 people per minute. |
Diameter | 1000 mm. |
Door wing heightLevel up high options available, to check with the manufacturer. | 2200 mm. |
Canopy heightLevel up high options available, to check with the manufacturer. | 200 mm. |
Throat width | 584 mm. |
Door wings | 2 |
Security systemInterface with most security systems. | StereoVision sensor system. Weight System. Contact Mats. |
Fire safety | Configured to open sliding doors. Configure to open or close on fire alarm. |
Safety | Vandal resistant. Burglar-resistant RC3. Bullet-resistant BR4NS. |
AccessibilitySupervised entry possible, Interlocking overruled. | - |
Power supply | 110 - 240 V, 50 / 60 Hz. |
Power | 65W (Operating). 45W (Stand-by). |
Operating temperature | -20°C to +50°C |
Weight | 750 kg |
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
