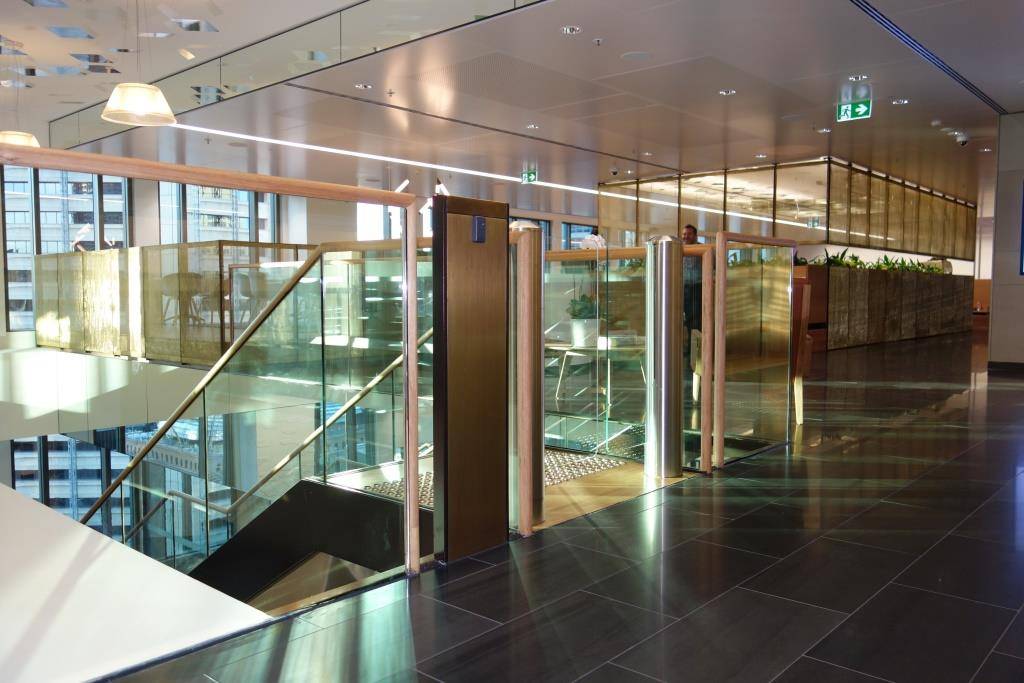

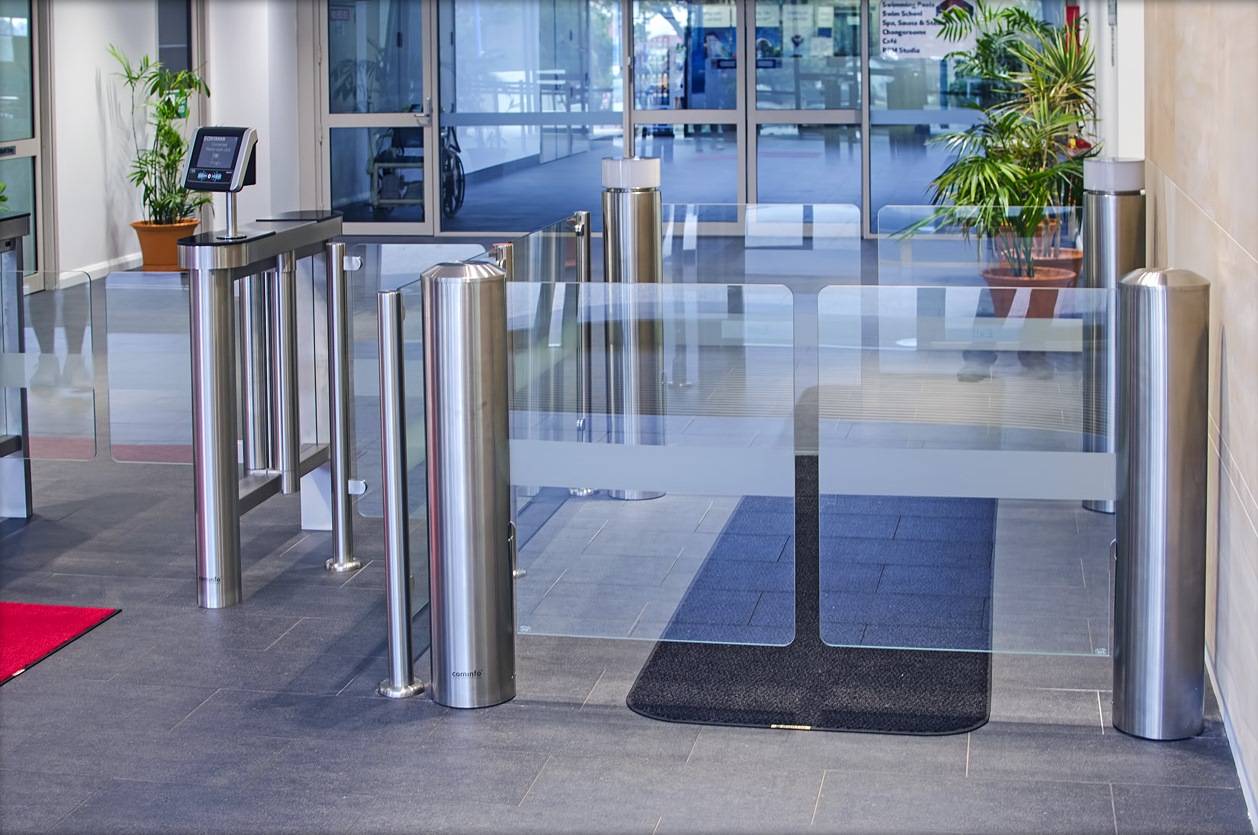

Centurion SwingGate

Verified by manufacturer over a year ago

SwingGate

Centaman Entrance Control Variant:

Motorized flexible gate that allows for multiple user types to pass through easily. Designed for low-traffic applications.

Jump to:
+61 2 9906 7522 Website

Application

  • Corporate offices.
  • Government.
  • Sports Stadia.
  • Leisure clubs.
  • Manufacturing plants.


Description

The Centurion SwingGate is a cost effective and user friendly passgate allowing the passageway of disabled users, people requiring assistance, prams, deliveries and visitors. This motorised flexible gate can either be used as a single or double unit to provide opening of up to 1.8 metres and the toughened safety glass panel barriers can come in 1020mm to 1800mm high versions. The SwingGate can be used for side access gates, dedicated exit lanes, stairway security or for dividing up internal project areas. The SwingGate can be controlled by either a simple push button override, IR sensors or it can be integrated with virtually any access or membership system. Once activated the gate opens and then closes automatically after a programmed period of time or it can be held open for extended periods.

General information

Finish

Brushed

Material

Stainless steel

Shape

Circle

Warranty description

One year

Uniclass

Pr_30_59_34_35 Glazed gatesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpecPack

08200 Doors, Door Frames and Hatches

Specification data - Glazed gates

Dimensions

-

Span

850 mm.

Manufacturer guidance

max span 1000 mm.

Height

1020 - 1800 mm.

Manufacturer guidance

Barrier height - Customizable. Refer to SwingGate technical data sheet for further guidance.

Depth

168mm(L) x 168mm(W) x 1000mm(H)

Manufacturer guidance

Pedestal dimension.

Posts

-

Material

304 Stainless steel.

Finish as delivered

Brushed

Polished

Gate leaves

8 mm toughened safety glass.

Accessible design

DDA compliant.

Access control

Card in / Card out

Card In / No Exit

Card in / Free Exit

Locked

Opening speed

75% Open 1.3 Seconds / 100% Open 2.8 Seconds.

MeanTimeBetweenFailure

1,000,000 operations.

Operation:

Normally closed.

Accessories:

Exit Radar Top

RFID Reader Top

Traffic Light Top

Coloured Glass

Pedestal size

204 mm.

168 mm.

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Centurion SwingGate G product data sheet.

Centurion SwingGate G product data sheet.

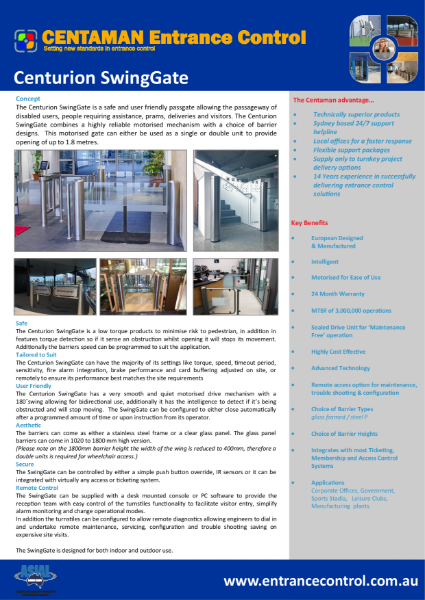

Centurion SwingGate Product data sheet.

Centurion SwingGate Product data sheet.

Centurion SwingGate barrier options.

Centurion SwingGate barrier options.
