Buster Gutter (Steel)

Verified by manufacturer over a year ago

ZINCALUME® Steel

Fielders Variant:

High capacity gutter. Available in VIC only.

Jump to:
+61 8 8292 3611 Website

Application

Suitable for commercial and industrial applications. Available in Victoria only.


AUSTRALIAN STANDARDS



Published load capacity data is derived from testing in accordance with:

  •       AS 4040.0:1992.
  •       AS 4040.1:1992.
  •       AS 4040.2:1992.
  •       AS 4040.3:2018.



Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

  •       AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
  •       AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
  •       AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
  •       AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.



Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.



Fielders steel products comply with:

  •       AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
  •       AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
  •       AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

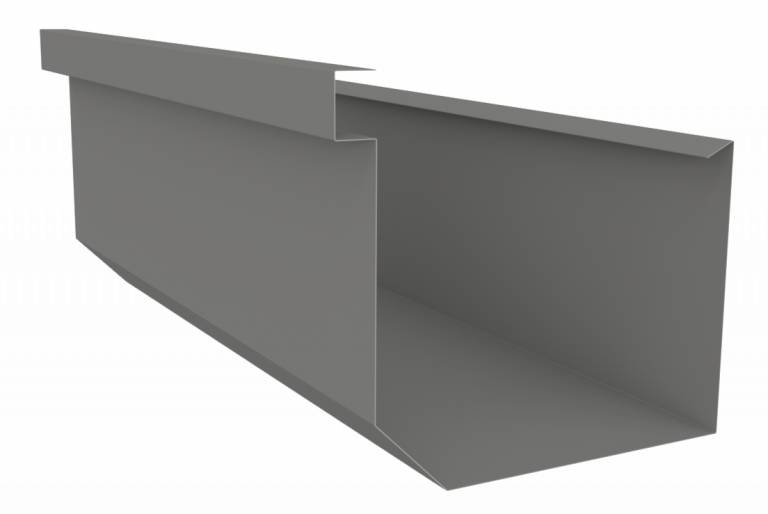

Buster Gutter is a high capacity gutter with a clean linear profile. Some of its features include:

  • High rainwater carrying capacity.
  • Available in a range of colours and finishes.

General information

Color

-

Manufacturer guidance

Available in a range of COLORBOND® steel colours. Comes in standard steel colours for ZINCALUME® and galvanised steel variations.

Material

Steel.

Shape

Trapezoid.

Size

205 mm W x 195 mm H.

Warranty description

20 years.

Manufacturer guidance

Covered by BlueScope material warranties.


All COLORBOND® steel gutters have a warranty of up to 20 years, subject to project assessment and terms and conditions.

Uniclass

Pr_65_50_35_31 Galvanized steel eaves guttersPrimary
Pr_65_50_35_42 Hot-dip pre-coated carbon steel eaves gutters

SpecPack

07410 Insulated Roof and Wall Panels

07320 Tile Roofing

07310 Slate Roofing

07600 Metal Roofing, Siding and Roof Plumbing

SpeedSpec

07610 Roofing and Roof Plumbing

NATSPEC National Classification System

0428 Roofing – Insulated Panel Systems

0427 Roofing - Tiles

0426 Roofing - Slate

0423 Roofing – Profiled Sheet Metal

0421 Roofing - Combined

Specification data - Galvanized steel eaves gutters

Standard

To AS 1397 and AS/NZS 2179.1.

Size (nominal width)

205 mm.

Manufacturer guidance

Refers to effective gutter width.

Thickness or gauge

-

Cross sectional area of gutter ≥ 10 000 mm² and ≤ 20 000 mm²

0.55 mm for G300.

Manufacturer guidance

Gutter area is ≥ 20 000 mm².

Corrosion protection

-

Class

AM125.

Finish

Natural.

Colour

Standard aluminium colour.

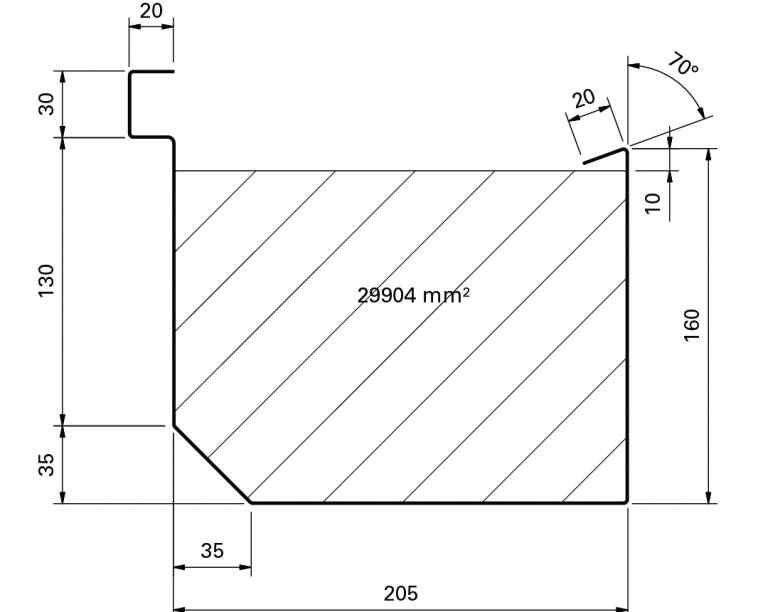

CrossSectionArea

29 904 mm².

Manufacturer guidance

Refers to Effective Cross Sectional Area (ECA). ECA is 10 mm below the overflow level.

Height

195 mm with overflow level at 160 mm.

Length

-

Manufacturer guidance

Indicate desired profile length. Profiles are supplied custom cut to length up to a maximum of 8 m only.

Material

ZINCALUME® steel.

Brackets

Universal Bracket.

Manufacturer guidance

Brackets or straps should be spaced at 1.2 m centres.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% Recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Manufacturer guidance

Maximum value only. Product is made with 15–20% recycled content.
