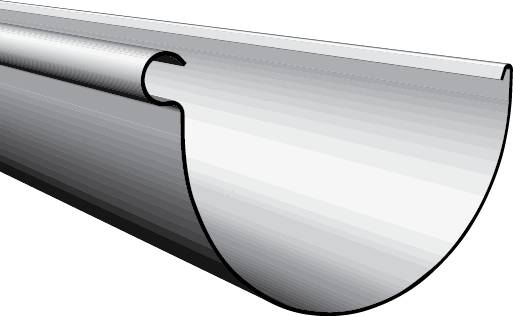

150 Half Round Gutter (COLORBOND® Steel)

Name: 150 Half Round Gutter (COLORBOND® Steel)
Brand: Fielders
SKU: 3JDS1ivgkAzrsETFjigXaQ

Verified by manufacturer over a year ago

ZINCALUME® Steel

Easy to keep clean gutter. Available in SA, NSW and VIC only.

Jump to:

Application

Suitable for domestic and light industrial buildings. Available in South Australia, New South Wales and Victoria only.

AUSTRALIAN STANDARDS

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.

Fielders steel products comply with:

AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

150 Half Round Gutter is an easy to keep clean gutter suitable to a range of applications. Some of its features include:

Material	Steel.
Shape	Crescent
Width	150 mm Manufacturer guidance Diameter.
Height	105 mm
Warranty description	20 years. Manufacturer guidance Covered by BlueScope material warranties. All COLORBOND® steel gutters have a warranty of up to 20 years, subject to project assessment and terms and conditions.

Uniclass	Pr_65_50_35_31 Galvanized steel eaves guttersPrimary Pr_65_50_35_42 Hot-dip pre-coated carbon steel eaves gutters
SpecPack	07310 Slate Roofing 07320 Tile Roofing 07410 Insulated Roof and Wall Panels 07600 Metal Roofing, Siding and Roof Plumbing
SpeedSpec	07610 Roofing and Roof Plumbing
NATSPEC National Classification System	0428 Roofing – Insulated Panel Systems 0427 Roofing - Tiles 0426 Roofing - Slate 0423 Roofing – Profiled Sheet Metal 0421 Roofing - Combined

Standard	To AS 1397 and AS/NZS 2179.1.
Size (nominal width)	150 mm. Manufacturer guidance Refers to effective gutter width.
Thickness or gauge	-
Cross sectional area of gutter ≤ 10 000 mm²	0.50 mm. Manufacturer guidance Refers to metal gauge of gutter profiles less than 10 000 mm².
Corrosion protection	-
Class	AM125.
Finish	Natural.
Colour	Standard ZINCALUME steel colour.

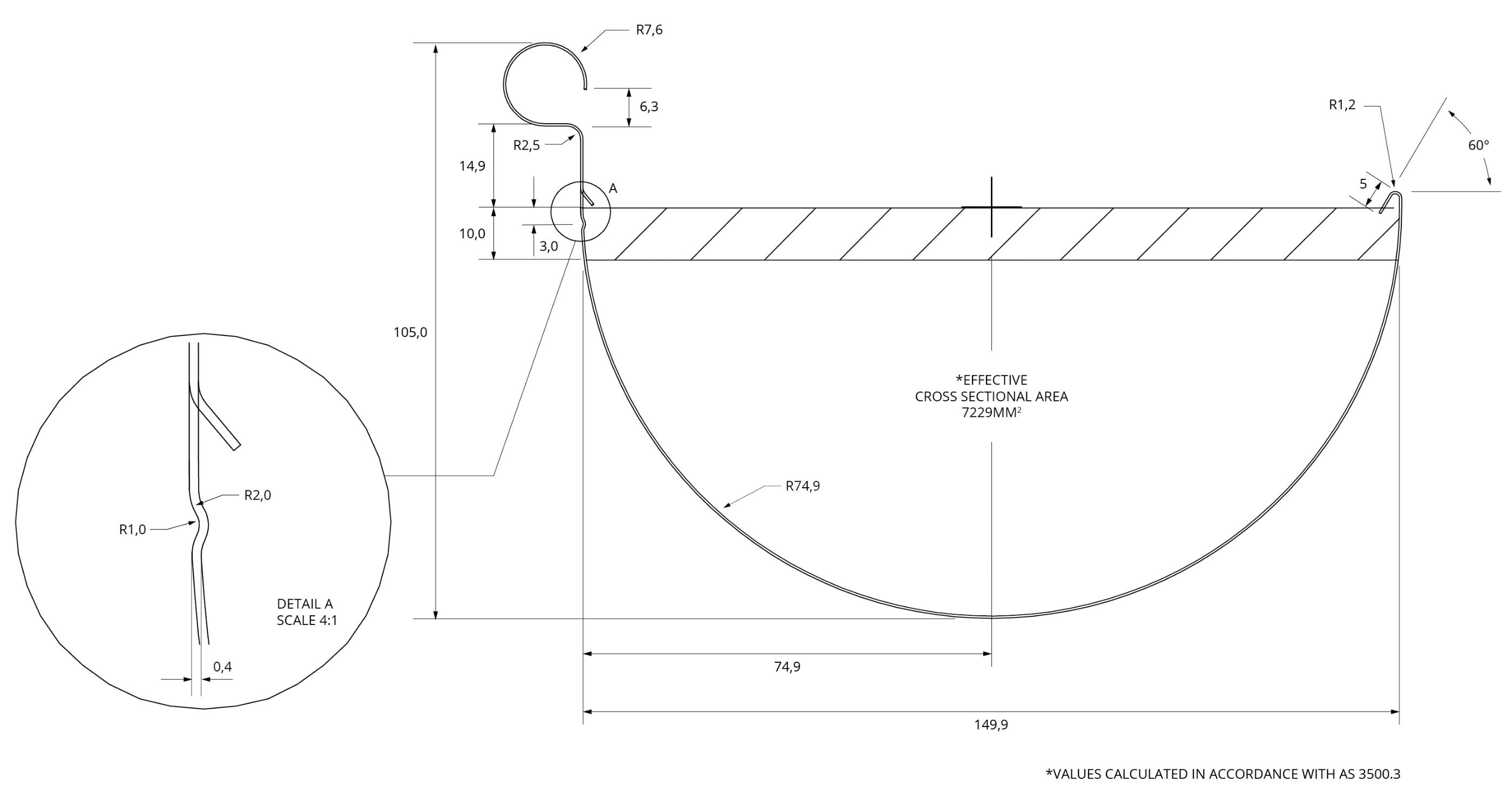

CrossSectionArea	7229 mm². Manufacturer guidance Refers to Effective Cross Sectional Area (ECA). ECA is 10 mm below the overflow level.
Height	105 mm.
Length	- Manufacturer guidance Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply.
Material	ZINCALUME® steel.
Brackets	External Half Round Bracket. Manufacturer guidance Brackets or straps should be spaced at 1.2 m centres.

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	100% Recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 % Manufacturer guidance Maximum value only. Product is made with 15–20% recycled content.
