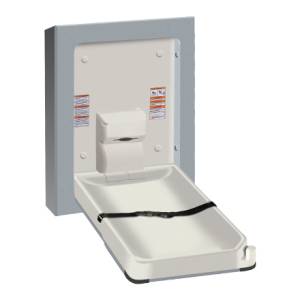

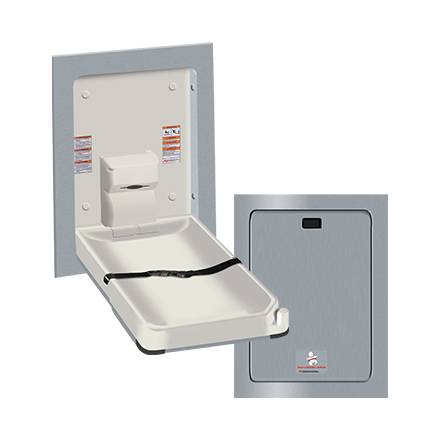

Baby Change Station Stainless Steel Clad Vertical
Verified by manufacturer over a year ago
Recessed
Recessed
Vertical, stainless steel clad baby change station.
Application
Suitable for washrooms that require recess or surface mount baby change stations.
Description
Baby Change Station Stainless Steel Clad Vertical is a vertical, recess or surface mount baby change station made with high-density polyethylene (PE-HD) and stainless steel. It is designed to support a static load up to 136.1 kg. Some of its features include:
- Concealed damped gas spring mechanism.
- Completely sealed components (no penetration zones to harbor microbes).
- Hygienic protection safety strap and cam-buckle, adjustable with one hand.
- Built in bed-liner, convertible into a paper towel dispenser and bag hook.
- Recyclable at end of usable life.
General information
Shape | Rectangle |
Warranty description | Five years. Guidance for specification option: From date of purchase. Manufacturer guidanceSubject to being installed and maintained in accordance with the Installation and Operating Instructions supplied with the unit. |
Uniclass | |
SpeedSpec | 05580 Architectural Metalwork and Whitegoods |
NATSPEC National Classification System | 0811 Sanitary Fixtures 0572 Miscellaneous Furniture |
SpecPack | 05500 Metalwork |
Specification data - Baby changing units
Form | Vertical wall-mounted; fold down. |
Material | High-density polyethylene (PE-HD) body with stainless steel door facing and trim. |
Finish and colour | Satin. |
Size (nominal) | 718 mm (width) x 994 mm (height) x 99 mm (depth).Guidance for specification option: Installed, closed position: 718 mm (width) x 994 mm (height) x 10 mm (depth). Manufacturer guidanceRefers to product overall dimensions. |
Integral accessories | Box of 500 liners.Guidance for specification option: Part number: LCR. Replacement strap.Guidance for specification option: Part number: 10-9014-14159. |
Projection | 747 mm. Manufacturer guidanceDistance from wall surface in open position. |
Load (maximum) | 136.1 kg (static load). |
Installation | Recessed. |
Opening | 622 mm (width) x 902 mm (height) x 102 mm (depth). Manufacturer guidanceRefers to minimum Rough Wall Opening (RWO). |
Model | 10-9017. |
Literature

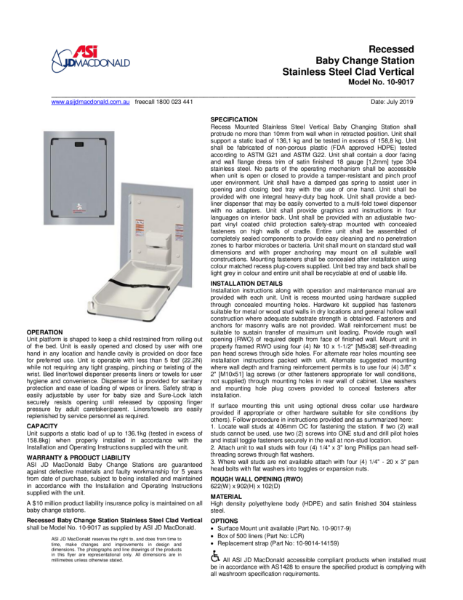

Vertical Stainless Steel Specification Sheet
Baby Safe Solutions
ASI JD MacDonald Product Care and Maintenance
