Application

Suitable for confined spaces. Can fit into the smallest of washrooms.

Description

Classic Baby Change Station Vertical is a vertical, surface mount baby change station made with high-density polyethylene (PE-HD) that can support a static load up to 68 kg. It includes a concealed pneumatic gas spring mechanism for smooth and safe opening and closing. Some of its features include:

  • Compact, slim profile.
  • Concealed pneumatic gas spring mechanism.
  • Hygienic, non-absorbent child safety strap.
  • One-hand size adjustment through a lockable two step cam-buckle.
  • Resistance to odours and bacterial growth.
  • Safety information and instructions (Braille included).

General information

Color

Grey

Finish

Anti-microbial

Material

High density (HDPE)

Shape

Rectangle

Length

489 mm

Width

100 mm

Height

789 mm

Warranty description

Five years.

Guidance for specification option:

From date of purchase.

Manufacturer guidance

Subject to being installed and maintained in accordance with the Installation and Operating Instructions supplied with the unit.

Uniclass

Pr_40_20_76_06 Baby changing unitsPrimary

SpeedSpec

05580 Architectural Metalwork and Whitegoods

NATSPEC National Classification System

0811 Sanitary Fixtures

0572 Miscellaneous Furniture

SpecPack

05500 Metalwork

Specification data - Baby changing units

Form

Vertical wall-mounted; fold down.

Material

High-density polyethylene (PE-HD).

Finish and colour

Grey.

Size (nominal)

489 mm (width) x 789 mm (height) x 100 mm (depth).

Manufacturer guidance

Refers to product overall dimensions in closed position.

Integral accessories

Box of 500 liners.

Guidance for specification option:

Part number: LCR.

Replacement belt.

Guidance for specification option:

Part number: B003.

Projection

813 mm.

Manufacturer guidance

Distance from wall surface in open position.

Load (maximum)

68 kg (static load).

Installation

Surface-mounted.

Accessible design

DDA-compliant.

Manufacturer guidance

Must be installed in accordance with AS 1428.

Model

BCV-JDM.

Literature

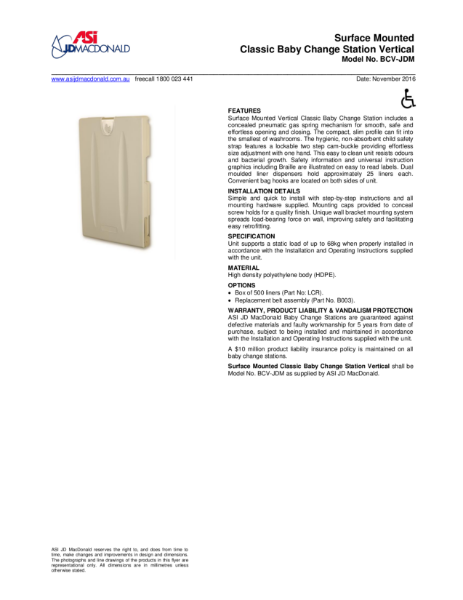

Classic Vertical Specification Sheet

Classic Vertical Specification Sheet

Baby Safe Solutions

Baby Safe Solutions

ASI JD MacDonald Product Care and Maintenance

ASI JD MacDonald Product Care and Maintenance
