Baby Change Station Stainless Steel Clad Parallel

Verified by manufacturer over a year ago

Recessed

ASI JD MacDonald Pty Ltd Variant:

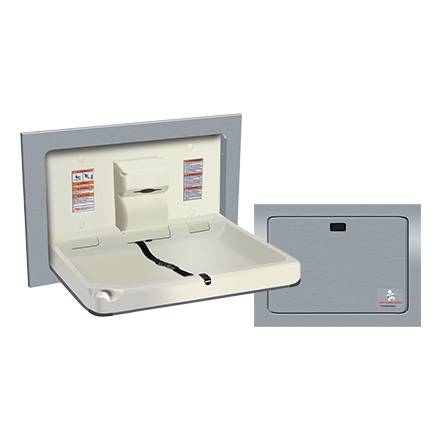

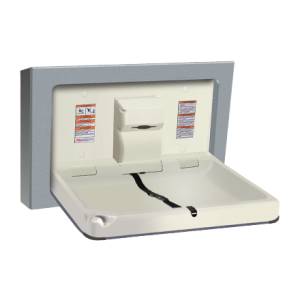

Horizontal, stainless steel clad baby change station.

Jump to:
1800 023 441 Website

Application

Suitable for washrooms that require recess or surface mount baby change stations.

Description

Baby Change Station Stainless Steel Clad Parallel is a horizontal, recess or surface mount baby change station made with high-density polyethylene (PE-HD) and stainless steel. It is designed to support a static load up to 136.1 kg. Some of its features include:

  • Concealed damped gas spring mechanism.
  • Completely sealed components (no penetration zones to harbor microbes).
  • Hygienic protection safety strap and cam-buckle, adjustable with one hand.
  • Built in bed-liner, convertible into a paper towel dispenser and bag hook.
  • Recyclable at end of usable life.

General information

Shape

Rectangle

Warranty description

Five years.

Guidance for specification option:

From date of purchase.

Manufacturer guidance

Subject to being installed and maintained in accordance with the Installation and Operating Instructions supplied with the unit.

Uniclass

Pr_40_20_76_06 Baby changing unitsPrimary

SpeedSpec

05580 Architectural Metalwork and Whitegoods

NATSPEC National Classification System

0811 Sanitary Fixtures

0572 Miscellaneous Furniture

SpecPack

05500 Metalwork

Specification data - Baby changing units

Form

Horizontal wall-mounted; fold down.

Material

High-density polyethylene (PE-HD) body with stainless steel door facing and trim.

Finish and colour

Satin.

Size (nominal)

994 mm (width) x 718 mm (height) x 100 mm (depth).

Guidance for specification option:

Installed, closed position: 994 mm (width) x 718 mm (height) x 10 mm (depth).

Manufacturer guidance

Refers to product overall dimensions.

Integral accessories

Box of 500 liners.

Guidance for specification option:

Part number: LCR.

Replacement strap.

Guidance for specification option:

Part number: 10-9014-14159.

Projection

460 mm.

Manufacturer guidance

Distance from wall surface in open position.

Load (maximum)

136.1 kg (static load).

Installation

Recessed.

Opening

902 mm (width) x 622 mm (height) x 102 mm (depth).

Manufacturer guidance

Refers to minimum Rough Wall Opening (RWO).

Model

10-9018.

Literature

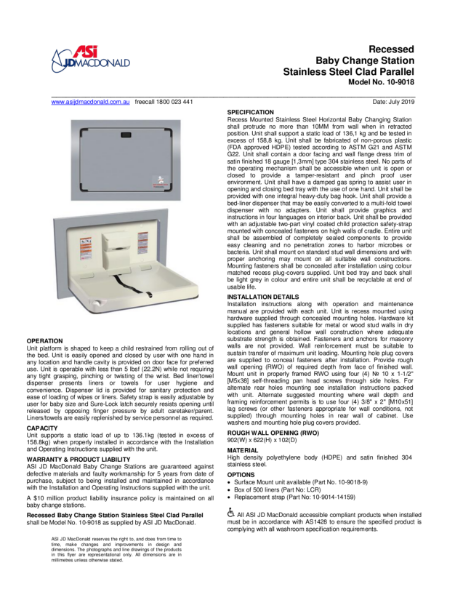

Parallel Stainless Steel Specification Sheet

Parallel Stainless Steel Specification Sheet

Baby Safe Solutions

Baby Safe Solutions

ASI JD MacDonald Product Care and Maintenance

ASI JD MacDonald Product Care and Maintenance
