125 Quarter Round Gutter (COLORBOND® Steel)

Verified by manufacturer over a year ago

ZINCALUME® Steel

Fielders Variant:

Gutter profile with a partially flat base. Available in WA only.

Jump to:
+61 8 8292 3611 Website

Application

Suitable for a wide range of projects, especially those with rebated fascias. Available in Western Australia only.


AUSTRALIAN STANDARDS



Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.



Fielders steel products comply with:

  •       AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
  •      AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
  •       AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

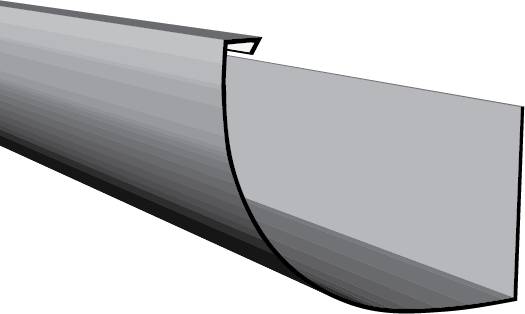

125 Quarter Round Gutter is a gutter profile with a partially flat base, making it suitable for use on rebated fascias. Some of its features include:

  • Reduced build-up of silt and debris due to water channeling to the back of gutter.
  • Flat back surface.
  • Straight finish.
  • Easy to handle and install on large runs.
  • Available in a range of colours and finishes.

General information

Material

Steel.

Shape

Crescent

Width

139 mm

Height

96 mm

Warranty description

20 years.

Manufacturer guidance

Covered by BlueScope material warranties.


All COLORBOND® steel gutters have a warranty of up to 20 years, subject to project assessment and terms and conditions.

Uniclass

Pr_65_50_35_31 Galvanized steel eaves guttersPrimary
Pr_65_50_35_42 Hot-dip pre-coated carbon steel eaves gutters

SpecPack

07310 Slate Roofing

07320 Tile Roofing

07410 Insulated Roof and Wall Panels

07600 Metal Roofing, Siding and Roof Plumbing

SpeedSpec

07610 Roofing and Roof Plumbing

NATSPEC National Classification System

0428 Roofing – Insulated Panel Systems

0427 Roofing - Tiles

0426 Roofing - Slate

0423 Roofing – Profiled Sheet Metal

0421 Roofing - Combined

Specification data - Galvanized steel eaves gutters

Standard

To AS 1397 and AS/NZS 2179.1.

Size (nominal width)

139 mm.

Manufacturer guidance

Refers to effective gutter width.

Thickness or gauge

-

Cross sectional area of gutter ≤ 10 000 mm²

0.50 mm.

Manufacturer guidance

Refers to metal gauge of gutter profiles less than 10 000 mm².

Corrosion protection

-

Class

AM125.

Finish

Natural.

Colour

Standard ZINCALUME steel colour.

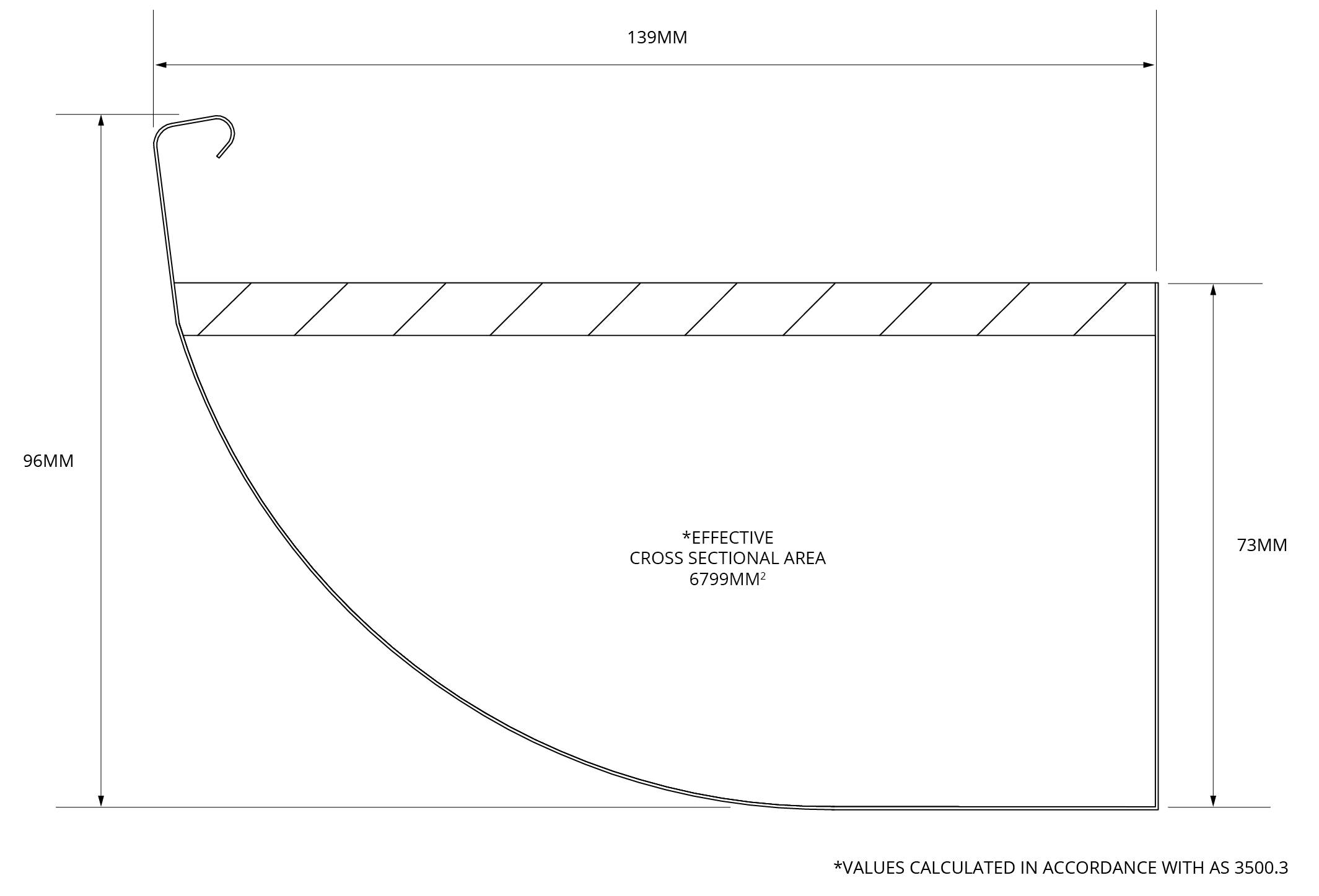

CrossSectionArea

6799 mm².

Manufacturer guidance

Refers to Effective Cross Sectional Area (ECA). ECA is 10 mm below the overflow level.

Height

96 mm with overflow level at 73 mm.

Length

-

Manufacturer guidance

Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply.

Material

ZINCALUME® steel.

Brackets

Quarter Round Quad Strap.

Manufacturer guidance

Brackets or straps should be spaced at 1.2 m centres.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% Recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Manufacturer guidance

Maximum value only. Product is made with 15–20% recycled content.
