125 D Gutter (COLORBOND® Steel)

Name: 125 D Gutter (COLORBOND® Steel)
Brand: Fielders
SKU: 9V5DsAf5rBPi3at2vGstXZ

Verified by manufacturer over a year ago

ZINCALUME® Steel

Fielders

Wide gutter profile. Available in SA, NSW and VIC only.

Jump to:

+61 8 8292 3611 Website

Application

Suitable for a wide range of projects, from new home constructions up to renovations. Available in South Australia, New South Wales and Victoria only.

AUSTRALIAN STANDARDS

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.

Fielders steel products comply with:

AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

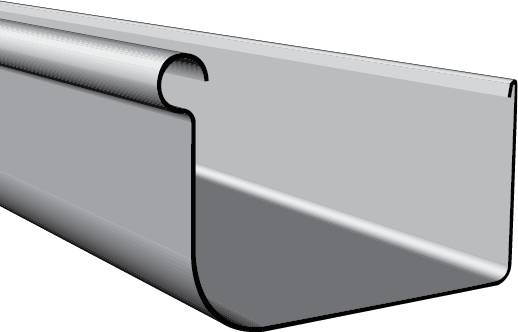

125 D Gutter is a wide guttering system suitable for a wide range of applications. It is the most widely used steel gutter profile in Australia, with a smaller profile known as '115 Quad Gutter'. Some of its features include:

Stylish and adaptable gutter profile.
Available in a range of colours and finishes.

General information

Material	Steel.
Shape	Rectangle
Width	142 mm
Height	86 mm
Warranty description	20 years. Manufacturer guidance Covered by BlueScope material warranties. All COLORBOND® steel gutters have a warranty of up to 20 years, subject to project assessment and terms and conditions.

Uniclass	Pr_65_50_35_31 Galvanized steel eaves guttersPrimary Pr_65_50_35_42 Hot-dip pre-coated carbon steel eaves gutters
SpecPack	07310 Slate Roofing 07320 Tile Roofing 07410 Insulated Roof and Wall Panels 07600 Metal Roofing, Siding and Roof Plumbing
SpeedSpec	07610 Roofing and Roof Plumbing
NATSPEC National Classification System	0428 Roofing – Insulated Panel Systems 0427 Roofing - Tiles 0426 Roofing - Slate 0423 Roofing – Profiled Sheet Metal 0421 Roofing - Combined

Specification data - Galvanized steel eaves gutters

Standard	To AS 1397 and AS/NZS 2179.1.
Size (nominal width)	127 mm. Manufacturer guidance Refers to effective gutter width.
Thickness or gauge	-
Cross sectional area of gutter ≤ 10 000 mm²	0.50 mm. Manufacturer guidance Refers to metal gauge of gutter profiles less than 10 000 mm².
Corrosion protection	-
Class	AM125.
Finish	Paint finish.
Colour	Standard ZINCALUME steel colour.

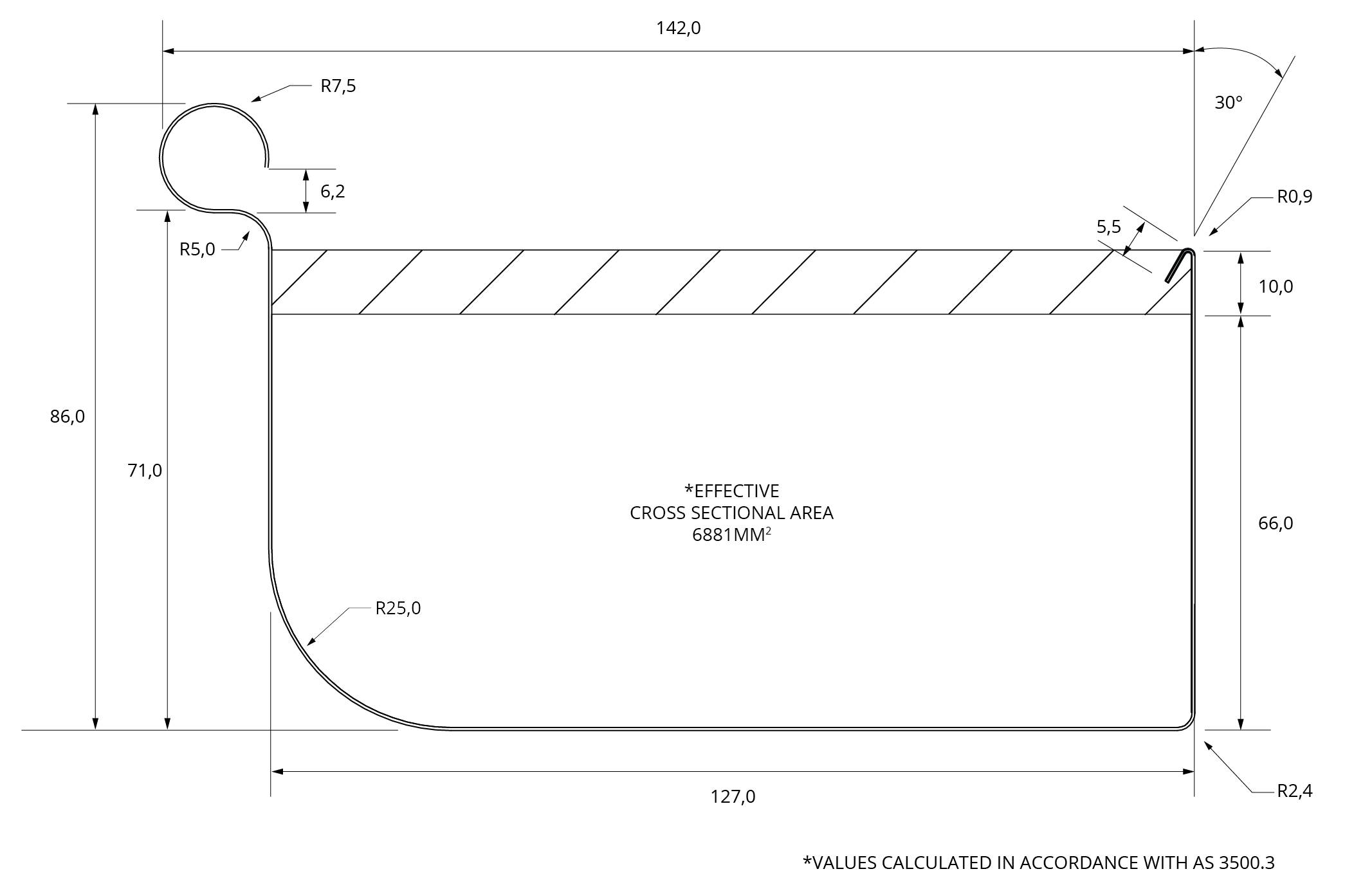

CrossSectionArea	6881 mm². Manufacturer guidance Refers to Effective Cross Sectional Area (ECA). ECA is 10 mm below the overflow level.
Height	86 mm with overflow level at 76 mm.
Length	- Manufacturer guidance Indicate desired profile length. Profiles are supplied custom cut to length to suit project requirements. Transportation limits apply.
Material	ZINCALUME® steel.
Brackets	External D Bracket. OB Strap. UB Strap. Manufacturer guidance Brackets or straps should be spaced at 1.2 m centres.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	100% Recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 % Manufacturer guidance Maximum value only. Product is made with 15–20% recycled content.
