Summary
High rainwater-carrying roofing with concealed-fixed installation. Available in WA only.
-
-
Application
Suitable for major commercial, industrial and domestic projects. Can also be used as walling profile. Available in Western Australia only.
AUSTRALIAN STANDARDS
Published load capacity data is derived from testing in accordance with:
- AS 4040.0:1992.
- AS 4040.1:1992.
- AS 4040.2:1992.
- AS 4040.3:2018.
Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:
- AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
- AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
- AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
- AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.
Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.
Fielders steel products comply with:
- AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
- AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
- AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.
-
-
Description

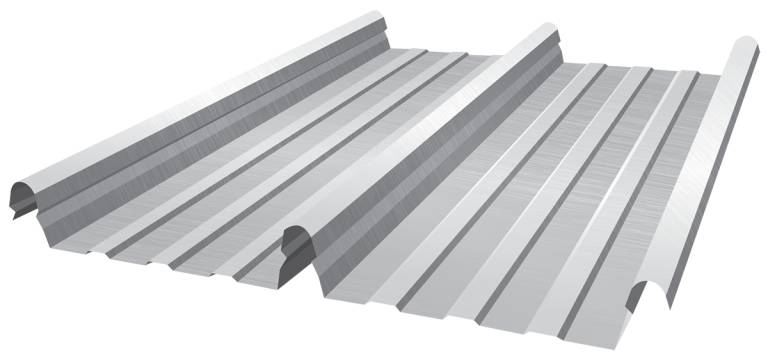

HiKlip® 630 Non-Cyclonic is a high rainwater-carrying roofing with concealed-fixed installation. It is the largest of such profile in Australia and is purposely built for stormy weathers. Some of its features include:
- Combination of durability and aesthetics.
- Large spanning capabilities for lower costs.
- Ability to rollform on-site.
- Available in a range of colours and finishes.
-
-
Material
Steel.
-
-
Shape
Rectangle
-
-
Warranty description
20 years.
-
-
Specification
Classification data
Standards
To AS 1397 and AS/NZS 2728.
-
-
Grade
G550.
-
-
Coating class
AM100.
-
-
Base Metal thickness (BMT)
0.42 mm., 0.48 mm.
-
-
Profile
-
-
-
Form
Trapezoidal.
-
-
Height
66 mm.
-
-
Cover width
630 mm.
-
-
Colour
Basalt., Classic Cream., Cottage Green., Cove., Deep Ocean., Dune., Evening Haze., Gully., Ironstone., Jasper., Mangrove., Manor Red., Monument., Night Sky., Pale Eucalypt., Paperbark., Shale Grey., Surfmist., Terrain., Wallaby., Windspray., Woodland Grey.
-
-
Finish
Painted.
-
-
Solar absorptance value (maximum)
0.32–0.96.
-
-
Additional properties
Material
COLORBOND® steel.
-
-
Span
1200 mm., 1500 mm., 1800 mm., 2100 mm., 2400 mm., 2700 mm., 3000 mm., 3300 mm., 3600 mm.
-
-
Thermal expansion
2.9 mm average per 5.0 m.
-
-
Frame or support
Steel (1.5 mm)., Timber Hardwood., Timber Softwood.
-
-
Mass
5.17 – 5.49 kg/m² (0.42 mm BMT)., 5.87 – 6.23 kg/m² (0.48 mm BMT).
-
-
Installation
Concealed clip fixed.
-
-
Manufacturing location
Manufactured on-site with Fielders Mobile Mill., Manufactured at a Fielders facility and transported to project site.
-
-
Ancillary components
Masonry Parapet Side Wall (Low or High)., Apron Flashings., Overflashing., Headwall Apron Flashing., Soaker Gutter., Soffit Corner Flashing., Shoe Flashing., Bracket., Valley Gutter., Under Over Flashing., Mansard Roof Flashing., Industrial Door Jamb Flashing., Apex Capping (Type 1 or 2)., Back Channel., Barge Capping., Framed Parapet Capping., Two Piece Step Flashing., Sliding Bracket.
-
-
Sustainability data
Country of material origin
Australia
-
-
Country of product manufacture
Australia
-
-
Recyclability
100% Recyclable.
-
-
