Sterling Compact Trunking

Verified by manufacturer 1 month ago

Marshall-Tufflex Ltd

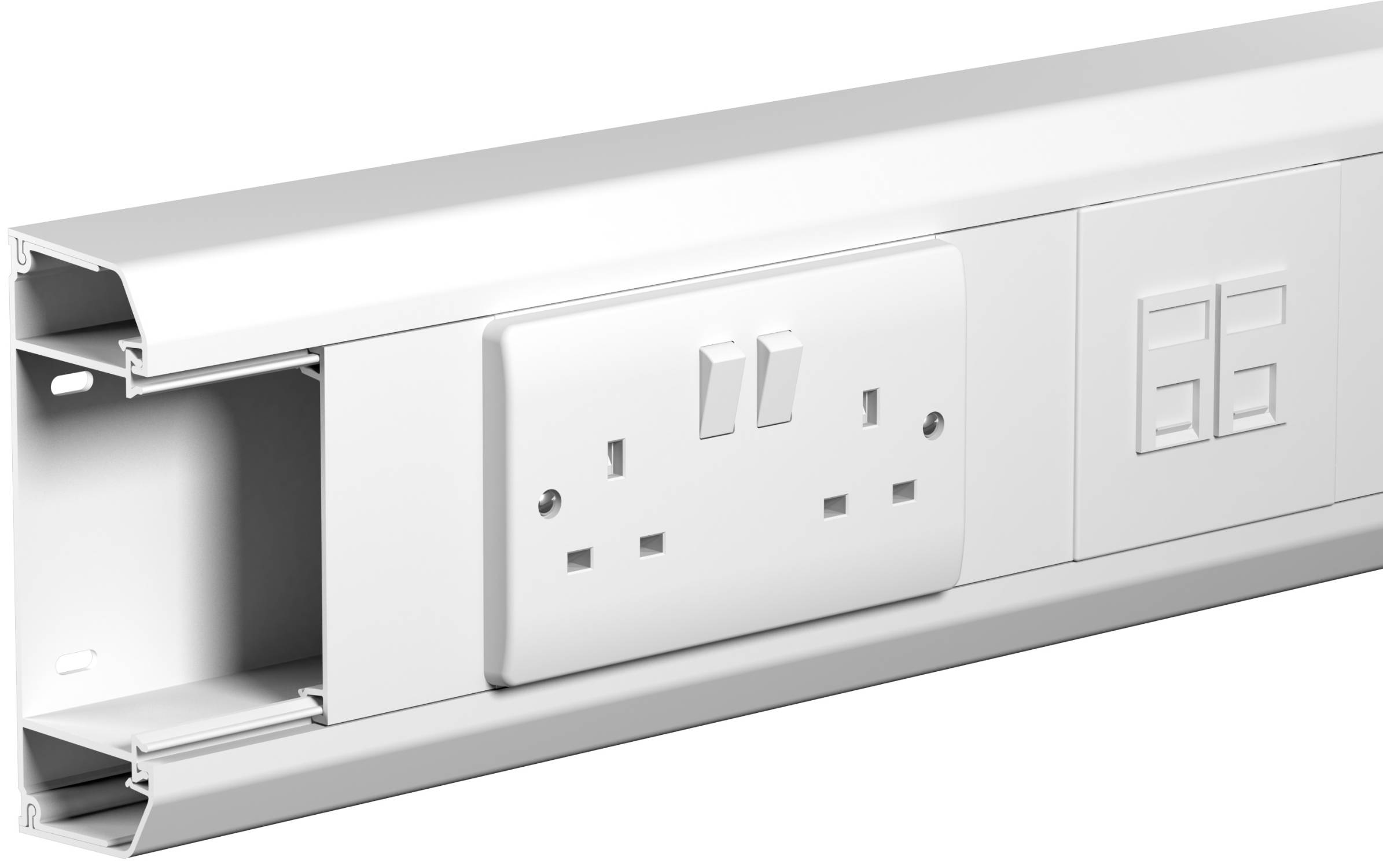

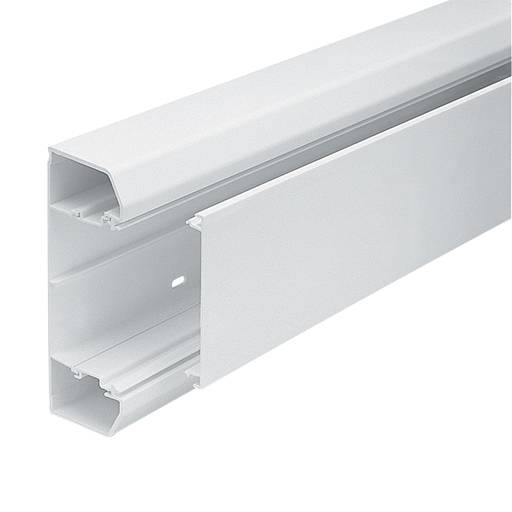

An economical three-compartment trunking, compact in size and designed to fit within areas that may have trunking height restrictions.

Jump to:
+44 (0)1424 856600 Website

Application

Suitable for use in dado and skirting applications.

Description

An economical three-compartment trunking, compact in size and designed to fit within areas that may have trunking height restrictions.


Previously known as Mono Plus 20, the base design has been re-designed for independent access to each compartment.


Features and benefits:

  • Size: 140 x 50 mm.
  • One main compartment and two smaller outer compartments.
  • Suitable for dado application.
  • Self extinguishing and non-flame propagating PVC-U.
  • Fire clips available to secure cables within trunking.
  • ETL1 lid is available in charcoal as a Part M compliance option.
  • Compliant up to Cat 7a.
  • Standard bend radius 25 mm.

General information

Color

White

Guidance for specification option:

White RAL 9003.


Finish

Matt

Material

PVC-U

Shape

Rectangle

Length

3000 mm

Width

140 mm

Height

50 mm

Uniclass

Pr_65_70_11_96 Wall and ceiling-mounted cable trunking and ductingPrimary

CAWS

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

V90/350 Cable trunking and cable ducting for wall and ceiling mounting

Specification data - Wall and ceiling-mounted cable trunking and ducting

Standards

To BS EN 50085-1:2005+A1:2013; BS EN 50085-2-1:2006+A1:2011; BS EN 60695-2-11:2014; BS 7671:2018; IEC 61084-1:2017; IEC 61084-2-1:2017 and BS 5733:2010+A1:2014.

Installation position

Surface mounted on the wall.

Resistance to flame propagation

Non-flame-propagating.

Protection by enclosure

-

Protection against ingress of solid objects (minimum)

IP4X.

Screening

Not required.

Required.

Manufacturer guidance

Special conductive spray coating can be applied to one compartment, the cover, accessory boxes and fittings, to screen data cables against EMI interference.


For data/voice circuits only:

Warning: Owing to its relatively high surface resistance, CS coating SHOULD NOT be in contact with low voltage circuits as per the current version of BS 7671 wiring regulations. V.A.C. – 1000 V.A.C. unless

additional measures are undertaken.

Sizes

140 x 50 mm.

Compartments

One.

Two.

Fire performance

-

Manufacturer guidance

  • The fire rating for PVC-U is excellent* and PVC-U has all the characteristics required for Fire Escape Time.
  • Highly resistant to ignition.
  • Does little to contribute to the spread of fire and is classified to Building Regs: Class 0.
  • PVC-U chars and is self-extinguishing.
  • Has a low rate of smoke production during the early stages of a fire.
  • Acts as an effective barrier to flame spread from malfunctioning electrical components within systems.
  • Does not produce flaming droplets or burning debris.
  • ABS fittings fire rated to UL94 V0.


Sustainability data

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

54 %

BIM objects

Platform Compatible Version
Revit
-

1

Literature

Sterling Compact Trunking Product Data Sheet

Sterling Compact Trunking Product Data Sheet
